Specialized Service
CFRP Foundation Repair & Strengthening
Foundation problems don't fix themselves — they get worse. Bowing walls, cracking foundations, and structural settlement threaten your building's safety and value. CFRP foundation repair provides a permanent structural solution from the inside — no exterior excavation, no landscaping destruction, no weeks of construction. Our carbon fiber systems stop wall movement and restore structural integrity in as little as one day.
Warning Signs Your Foundation Needs Repair
Foundation distress is progressive. Early intervention with CFRP is significantly less expensive than waiting until the wall requires replacement. If you observe any of these warning signs, contact a structural engineer for evaluation.
Horizontal cracks in basement walls (indicates lateral soil pressure exceeding wall capacity)
Stair-step cracking in CMU block walls (follows mortar joints under lateral loading)
Inward bowing or leaning of basement walls (measured with a straightedge or laser level)
Diagonal cracks radiating from corners of windows or doors (stress concentration points)
Water infiltration through wall cracks (indicates crack widths exceeding waterproofing capacity)
Gaps between the wall and floor or wall and ceiling (indicates wall movement)
Doors or windows that no longer open/close properly (indicates differential settlement)
Visible displacement at wall-to-floor or wall-to-sill plate connections
Foundation Types We Repair & Strengthen
From residential basements to commercial pile caps, our engineers design CFRP solutions for every foundation type and loading condition.
Basement Walls
Poured concrete and CMU basement walls that are bowing, cracking, or leaning from lateral soil pressure are the most common residential CFRP application. Vertical carbon fiber strips bonded to the interior face arrest further movement and increase the wall's resistance to lateral earth pressure. This permanent structural repair avoids the massive cost and disruption of exterior excavation.
Spread Footings
Spread footings that need to carry increased column loads from building additions or repurposing can be strengthened with CFRP applied to the footing sides and bottom. The CFRP increases the footing's flexural capacity, allowing it to distribute higher loads to the soil without increasing the footing size.
Grade Beams
Grade beams connecting pile caps or supporting perimeter walls can be strengthened with CFRP for increased flexural and shear capacity. This is common when building additions or equipment installations increase the loads transferred through the grade beam system.
Pile Caps
Pile caps that need to resist higher loads or that have deteriorated from groundwater exposure can be strengthened with CFRP. The design addresses both flexural capacity (bending between piles) and punching shear (at the column-to-pile cap interface).
Mat Foundations
Mat (raft) foundations in areas with high water tables or expansive soils can be strengthened with CFRP to resist increased bending moments from uneven soil pressures or increased building loads. CFRP is applied to the bottom face (accessed from below in buildings with crawl spaces) or the top face.
Retaining Walls & Abutments
Retaining walls and bridge abutments subjected to lateral earth pressure, surcharge loads, or seismic forces can be strengthened with CFRP on the tension face. The design accounts for the earth pressure distribution, water pressure, and any surcharge loads from traffic or structures above.
Why CFRP for Foundation Repair?
No Exterior Excavation
All work is performed from inside. No digging around your foundation, no damage to landscaping, driveways, or adjacent structures. This alone saves thousands of dollars and weeks of construction time.
Permanent Structural Solution
Unlike temporary bracing or monitoring, CFRP is a permanent structural repair. The carbon fiber does not corrode, rot, or degrade. It provides a design life exceeding the remaining life of the structure.
Minimal Disruption
Most residential foundation repairs are completed in 1-2 days. The basement can be used normally within 24-48 hours. No need to relocate furniture to other floors or vacate the home.
Thin Profile
CFRP strips are only 1-2mm thick. They can be covered with drywall, paneling, or paint. They don't interfere with basement finishing, framing, insulation, or mechanical systems.
10x Stronger Than Steel
Carbon fiber has a tensile strength 10 times greater than structural steel by weight. This extraordinary strength-to-weight ratio means thin CFRP strips provide enormous structural capacity.
Cost-Effective
CFRP foundation repair typically costs 40-60% less than exterior excavation and wall replacement. The savings come from eliminating excavation, backfill, landscaping restoration, and extended construction time.
Our Foundation Repair Process
A systematic approach from diagnosis through finishing ensures a permanent, effective repair.
Foundation Inspection & Diagnosis
Licensed structural engineers inspect the foundation, measuring crack widths, wall deflections, and settlement patterns. Soil conditions are evaluated to understand the loading mechanism. The diagnosis identifies the root cause — lateral soil pressure, hydrostatic pressure, frost heave, settlement, or deterioration.
Engineering Design
The CFRP system is designed to resist the identified loading conditions with appropriate safety factors. For basement walls, the design follows ACI 440.2R and accounts for the lateral earth pressure profile, water table elevation, and any surcharge loads. Strip width, spacing, and number of layers are specified.
Interior Preparation
The wall surface is prepared by removing any existing finishes (drywall, paneling, paint) in the CFRP application zones. The concrete or masonry surface is cleaned and profiled. Cracks wider than 0.01 inches are injected with structural epoxy to restore monolithic behavior.

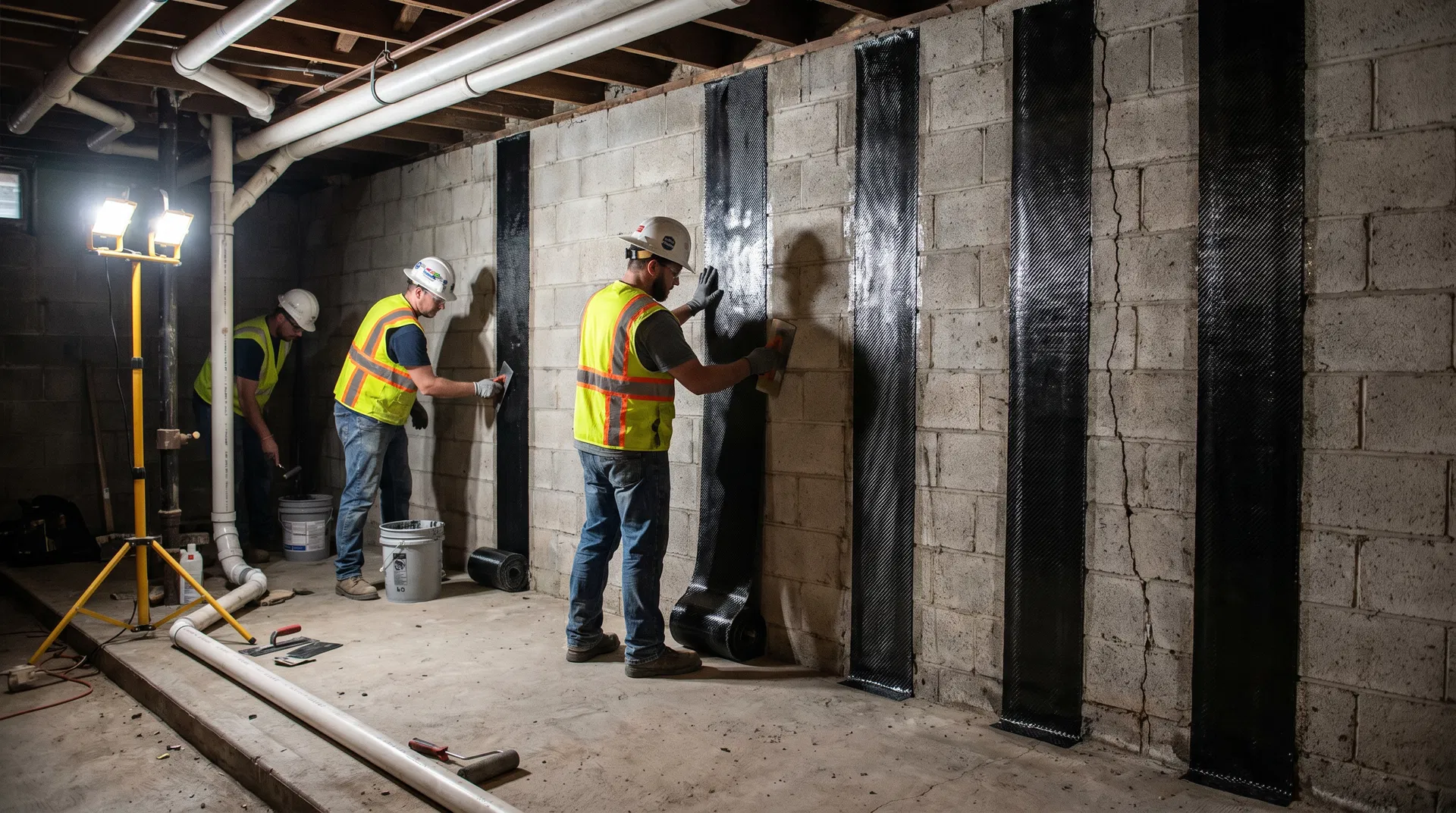

CFRP Application
Carbon fiber strips are saturated with structural epoxy and bonded to the wall surface. For basement walls, strips are typically installed vertically at 4-6 foot spacing, running from the footing to the sill plate. Each strip is carefully aligned, pressed into full contact, and debubbled.
Connection Detailing
The CFRP strips are anchored at the top (to the sill plate or floor system) and bottom (to the footing) to ensure full load transfer. Mechanical anchors or CFRP L-brackets provide the connection between the wall CFRP and the horizontal structural elements.
Finishing & Waterproofing
After the CFRP cures, the strips are coated with a protective finish. Interior waterproofing measures (drainage board, sump pump, vapor barrier) are installed as needed to address the water infiltration that often accompanies foundation wall distress. The wall can then be refinished with drywall or other coverings.
CFRP vs. Traditional Foundation Repair
| Factor | CFRP Strips | Steel I-Beams | Exterior Excavation |
|---|---|---|---|
| Installation Time | 1-2 days | 1-2 days | 1-3 weeks |
| Exterior Digging | None | None | Full perimeter |
| Space Impact | 1-2mm (invisible under drywall) | 4-6 inches (visible beams) | None (exterior work) |
| Basement Finishing | Fully compatible | Beams obstruct finishing | Fully compatible |
| Corrosion Risk | None | Yes (in damp basements) | N/A |
| Typical Cost | $8,000-$25,000 | $10,000-$20,000 | $25,000-$60,000+ |
Related Resources
Signs Your Building Needs Structural Repair
Learn to identify the warning signs that indicate structural distress requiring professional evaluation.
Read MoreResidential & Condo CFRP Applications
How CFRP strengthening is used in residential buildings, condominiums, and HOA-managed properties.
Read MoreComplete Guide to CFRP Costs
Understand the factors that determine CFRP repair costs and how to budget for your project.
Read MoreFoundation Repair FAQ
Can CFRP fix a bowing basement wall?
Yes. CFRP strips applied vertically to the interior face of a bowing basement wall are one of the most effective and least disruptive repair methods available. The carbon fiber strips arrest further inward movement and increase the wall's resistance to lateral soil pressure. For walls with up to 2 inches of inward bow, CFRP alone is typically sufficient. For walls with greater displacement, CFRP may be combined with wall anchors or helical tiebacks.
Is CFRP foundation repair permanent?
Yes. CFRP foundation repair is a permanent structural solution. The carbon fiber does not corrode, rot, or degrade over time. The epoxy adhesive is protected from UV exposure by the wall itself (interior application) and any applied finishes. When properly designed and installed, CFRP foundation repairs have a design life that exceeds the remaining life of the structure.
How much does CFRP foundation repair cost?
CFRP foundation wall repair typically costs between $150 and $350 per linear foot of wall, or $8,000 to $25,000 for a standard residential basement. This is generally 40-60% less than exterior excavation and wall replacement ($25,000-$60,000+) and comparable to or less than steel beam/brace systems, while providing a superior structural solution.
Can I finish my basement after CFRP repair?
Yes. CFRP strips are thin (approximately 1-2mm) and can be covered with drywall, paneling, or other interior finishes. The strips do not interfere with framing, insulation, or electrical/plumbing installations. Many homeowners complete their basement finishing project immediately after CFRP installation.
How long does CFRP foundation repair take?
A typical residential basement CFRP repair project is completed in 1-2 days. The CFRP strips are installed in a single day, and the epoxy cures to handling strength within 24 hours. Full structural strength is achieved in 7 days. The basement can be used normally within 24-48 hours of installation.
Does CFRP foundation repair require exterior excavation?
No. This is one of the primary advantages of CFRP over traditional foundation repair methods. All work is performed from inside the basement. There is no need to excavate around the exterior of the foundation, which means no damage to landscaping, driveways, patios, or adjacent structures. This also eliminates the weather dependency of exterior excavation work.
