CFRP Slab Strengthening
Floor slabs define what a building can do. When you need higher load ratings for repurposing, new equipment, or code compliance, CFRP slab strengthening delivers the capacity increase from below — without touching the floor above, without adding height, and without weeks of downtime. Our systems increase slab capacity by 20-50% in days.
What Is CFRP Slab Strengthening?
CFRP slab strengthening involves bonding carbon fiber reinforced polymer strips or fabric to the underside (soffit) of concrete floor slabs to increase their load-carrying capacity. The carbon fiber acts as additional tensile reinforcement on the tension face of the slab, supplementing the internal steel rebar and allowing the slab to resist greater bending moments from floor loads.
The design follows ACI 440.2R-17, which provides specific provisions for slab strengthening including moment redistribution limits, debonding strain calculations, and serviceability checks. For two-way slab systems, the design must address moment distribution in both span directions and may include punching shear strengthening at column connections.
One of the most compelling aspects of CFRP slab strengthening is that all work is performed from below the slab. The floor above remains completely undisturbed — no demolition, no formwork, no wet concrete. This means the space above can remain occupied and operational throughout the strengthening process, a critical advantage for occupied buildings, hospitals, data centers, and retail spaces where downtime translates directly to lost revenue.
Slab Types We Strengthen
Every slab system has unique structural behavior. Our engineers design CFRP solutions tailored to each slab type's specific load paths, reinforcement patterns, and failure modes.
One-Way Slabs
One-way slabs span between parallel beams or walls and are the simplest configuration for CFRP strengthening. Unidirectional CFRP strips are bonded to the tension face (underside) parallel to the span direction. The design follows standard flexural strengthening procedures per ACI 440.2R, with the CFRP acting as additional bottom reinforcement.
Two-Way Slabs
Two-way slabs (flat plates and flat slabs) span in both directions and require CFRP in both the X and Y directions. The CFRP layout must account for the moment distribution in both directions, with higher concentrations in the column strip regions where moments are greatest. Punching shear at column connections is a separate concern addressed with CFRP shear reinforcement.
Post-Tensioned Slabs
Post-tensioned slabs present unique challenges due to the embedded tendons. CFRP strengthening must be designed to work in conjunction with the existing prestress forces. Tendon locations must be precisely mapped using ground-penetrating radar (GPR) before any drilling or anchoring. The design accounts for the effective prestress, secondary moments, and the interaction between internal and external reinforcement.
Composite Metal Deck Slabs
Composite slabs with metal deck formwork are common in steel-framed buildings. CFRP can be applied to the underside of the concrete topping to increase flexural capacity. The design must account for the composite action between the metal deck and concrete, and the CFRP is bonded only to the concrete surface.
Precast Hollow-Core Slabs
Hollow-core plank systems can be strengthened with CFRP applied to the bottom flange. The design considers the reduced concrete area due to the cores and the potential for web shear failures. CFRP strips are typically applied between the cores on the bottom surface.
Waffle Slabs
Waffle (ribbed) slabs are strengthened by applying CFRP to the bottom of the ribs for flexural capacity and to the sides of the ribs for shear. The solid head regions around columns may require separate punching shear strengthening.
When Is Slab Strengthening Needed?
Building Repurposing & Adaptive Reuse
Converting office space to warehouse, retail to restaurant, or light industrial to data center often requires higher floor load ratings. CFRP slab strengthening increases the live load capacity without the cost and disruption of slab replacement.
Equipment Installation
New mechanical equipment, server racks, manufacturing machinery, or medical imaging equipment (MRI, CT scanners) can exceed the original floor design load. Localized CFRP strengthening beneath the equipment provides the required capacity increase.
Parking Garage Deck Repair
Parking garage decks deteriorate from chloride-induced rebar corrosion, freeze-thaw damage, and traffic wear. CFRP strengthening restores the deck's flexural capacity after concrete repair, extending the structure's service life by decades.
Code Compliance Upgrades
Updated building codes may require higher floor load ratings than the original design provided. CFRP strengthening brings existing slabs into compliance with current ACI 318 and IBC requirements without major structural modifications.
Punching Shear Strengthening
Flat slab systems are vulnerable to punching shear failure at column connections. CFRP shear reinforcement systems, including through-slab CFRP anchors and surface-mounted CFRP strips, increase the punching shear capacity at critical column-slab interfaces.
Opening & Penetration Reinforcement
New openings cut through existing slabs for elevators, stairs, HVAC ducts, or plumbing require strengthening of the remaining slab around the opening. CFRP strips provide the necessary reinforcement to compensate for the interrupted reinforcing steel.
Our Slab Strengthening Process
Every slab strengthening project follows a precise six-step process from assessment through verification.
Slab Assessment & Load Analysis
Engineers conduct a comprehensive evaluation including concrete core testing, rebar scanning with GPR, and structural analysis per ACI 318. The existing slab capacity is determined and compared against the required capacity to establish the strengthening demand.
CFRP Design & Layout
The CFRP system is designed per ACI 440.2R, specifying strip widths, spacing, number of layers, and fiber orientation. For two-way slabs, the design addresses both span directions. Anchorage details and termination points are specified to prevent debonding.
Surface Preparation
The slab soffit is prepared to ICRI CSP 2-3 using diamond grinding. Existing cracks are injected with structural epoxy. Delaminated concrete is removed and patched with repair mortar. For slabs with significant deterioration, concrete repair precedes CFRP application.

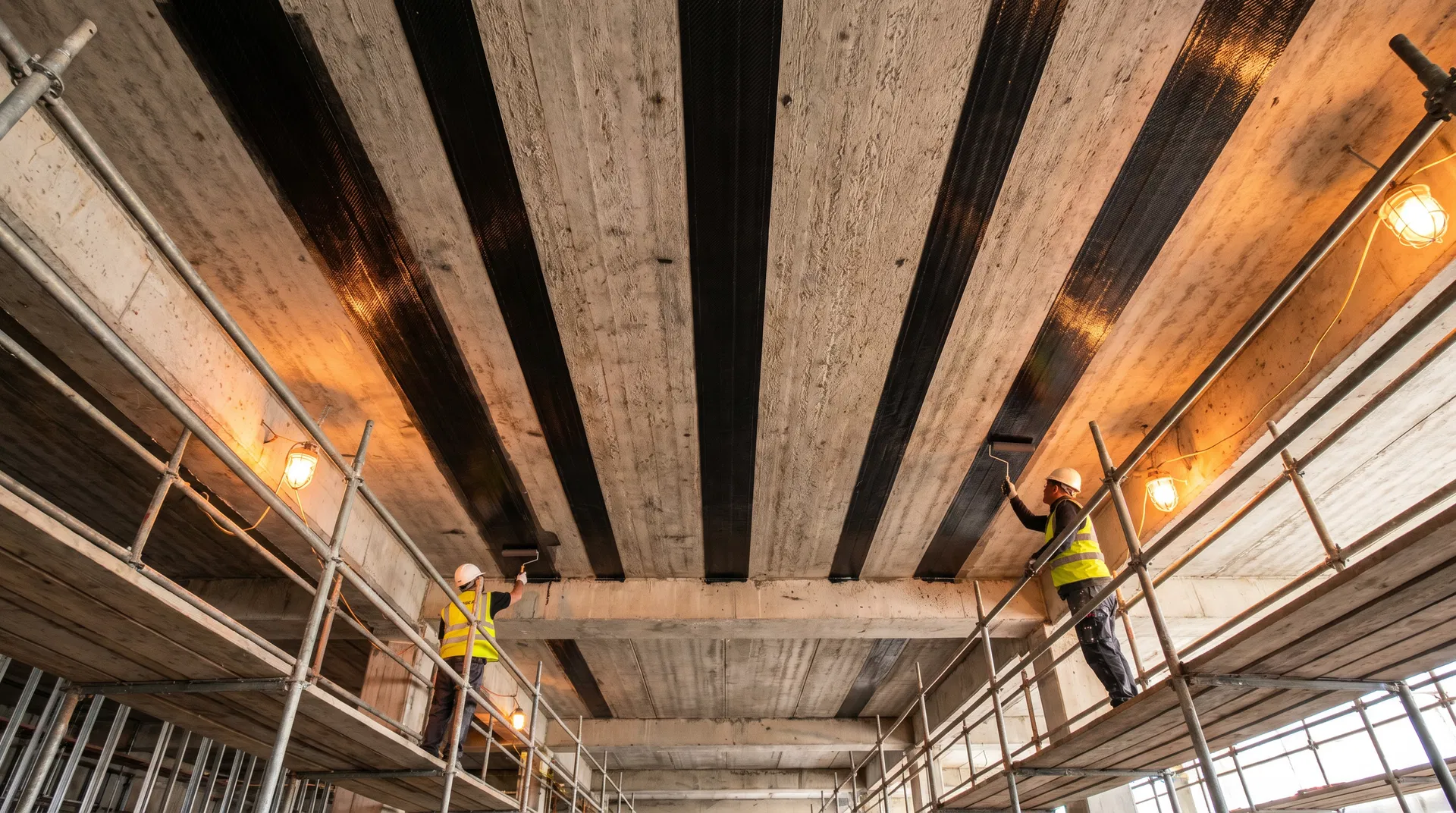

CFRP Installation
Pre-cured CFRP laminates or wet-layup fabric strips are bonded to the prepared slab surface using structural epoxy adhesive. Strips are installed at the specified spacing and orientation, with careful attention to overlap zones and anchorage details.
Anchorage & Detailing
CFRP spike anchors or transverse strips are installed at termination points and at locations where debonding stresses are highest. For punching shear applications, through-slab CFRP anchors are installed in drilled holes around the column perimeter.
Quality Verification
Pull-off testing per ASTM D7522 confirms bond strength exceeds 200 psi at multiple locations. Visual inspection verifies fiber alignment, void-free installation, and proper anchorage. A final load test may be conducted for critical applications.
CFRP vs. Traditional Slab Strengthening
| Factor | CFRP Strengthening | Concrete Overlay | Slab Replacement |
|---|---|---|---|
| Installation Time | 3-10 days | 3-6 weeks | 6-12 weeks |
| Floor Above Disruption | None | Complete (must vacate) | Complete (must vacate) |
| Added Thickness | <2mm (below) | 3-6 inches (above) | Same as original |
| Added Dead Load | Negligible | 35-75 psf | Same as original |
| Typical Cost | $45-$120/SF | $30-$60/SF + downtime | $150-$300/SF + downtime |
Related Resources
Industrial Floor Slab Case Study
See how CFRP strengthening increased a warehouse floor's load rating for heavy forklift operations.
Read MoreLoad Capacity Upgrade Services
Learn about our comprehensive load capacity upgrade program for building repurposing and equipment installations.
Read MoreHow CFRP Saves Building Owners Millions
Understand the financial case for CFRP strengthening vs. traditional structural modifications.
Read MoreSlab Strengthening FAQ
How much can CFRP increase a slab's load capacity?
CFRP can typically increase a slab's flexural capacity by 20% to 50%, depending on the existing reinforcement ratio and concrete strength. For lightly reinforced slabs, increases up to 70% are possible. The actual increase is determined by engineering analysis per ACI 440.2R, accounting for debonding strain limits and environmental factors.
Can CFRP strengthen a slab for heavier equipment loads?
Yes. This is one of the most common applications. CFRP strips are applied to the slab underside directly beneath the equipment location, increasing the local flexural capacity to support the concentrated loads. The design accounts for the specific load distribution, including point loads from equipment legs and distributed loads from base plates.
Is the slab accessible from below during CFRP installation?
Yes, CFRP slab strengthening is performed from the underside of the slab. Access from below is required, which means the floor below the strengthened slab must be accessible. In most cases, the space below can remain occupied during installation with minor temporary restrictions.
Can CFRP fix punching shear problems in flat slabs?
Yes. CFRP punching shear strengthening uses a combination of surface-mounted strips radiating from the column and through-slab CFRP anchors to increase the critical shear perimeter capacity. This technique has been validated through extensive laboratory testing and is covered in ACI 440.2R.
How does CFRP slab strengthening compare to adding a concrete topping?
CFRP is significantly less disruptive and faster. A concrete topping requires clearing the floor above, installing formwork, pouring and curing new concrete (4+ weeks), and adds 3-6 inches of height and significant dead load. CFRP adds less than 2mm, installs in days from below, and requires no disruption to the floor above.
What is the cost of CFRP slab strengthening?
CFRP slab strengthening typically costs $45 to $120 per square foot of CFRP applied, depending on the number of layers, strip spacing, and site conditions. For localized strengthening (e.g., beneath equipment), the total project cost is often $15,000 to $50,000. This is typically 40-60% less than structural alternatives like slab replacement or concrete overlay.
