CFRP Bridge Strengthening
America's bridges are aging. Over 46,000 are structurally deficient, and replacement costs are staggering. CFRP bridge strengthening increases load ratings by 15-40%, removes weight postings, and extends service life by 75+ years — at a fraction of the cost and time of replacement. DOT-approved and proven on thousands of bridges nationwide.
America's Bridge Infrastructure Crisis
The American Society of Civil Engineers gives America's bridges a grade of C in their Infrastructure Report Card. Over 46,000 bridges are classified as structurally deficient, meaning they have significant deterioration that reduces their load-carrying capacity below the levels required for modern traffic. Thousands more are functionally obsolete, unable to handle current traffic volumes and vehicle weights.
The cost to address this backlog through traditional bridge replacement is estimated at over $125 billion. With limited federal and state funding, DOTs are increasingly turning to cost-effective strengthening technologies that can extend the service life of existing bridges at a fraction of the replacement cost. CFRP strengthening has emerged as the leading technology for this purpose.
CFRP bridge strengthening is particularly valuable for bridges that are structurally deficient but not yet in need of full replacement. By increasing the load rating of these bridges, CFRP removes weight postings that restrict commercial traffic, restores emergency vehicle access, and extends the bridge's useful life by decades — buying time until replacement funding becomes available or eliminating the need for replacement entirely.
Bridge Types We Strengthen
Our bridge engineering team has experience with every common concrete bridge type in the national inventory.
Reinforced Concrete Slab Bridges

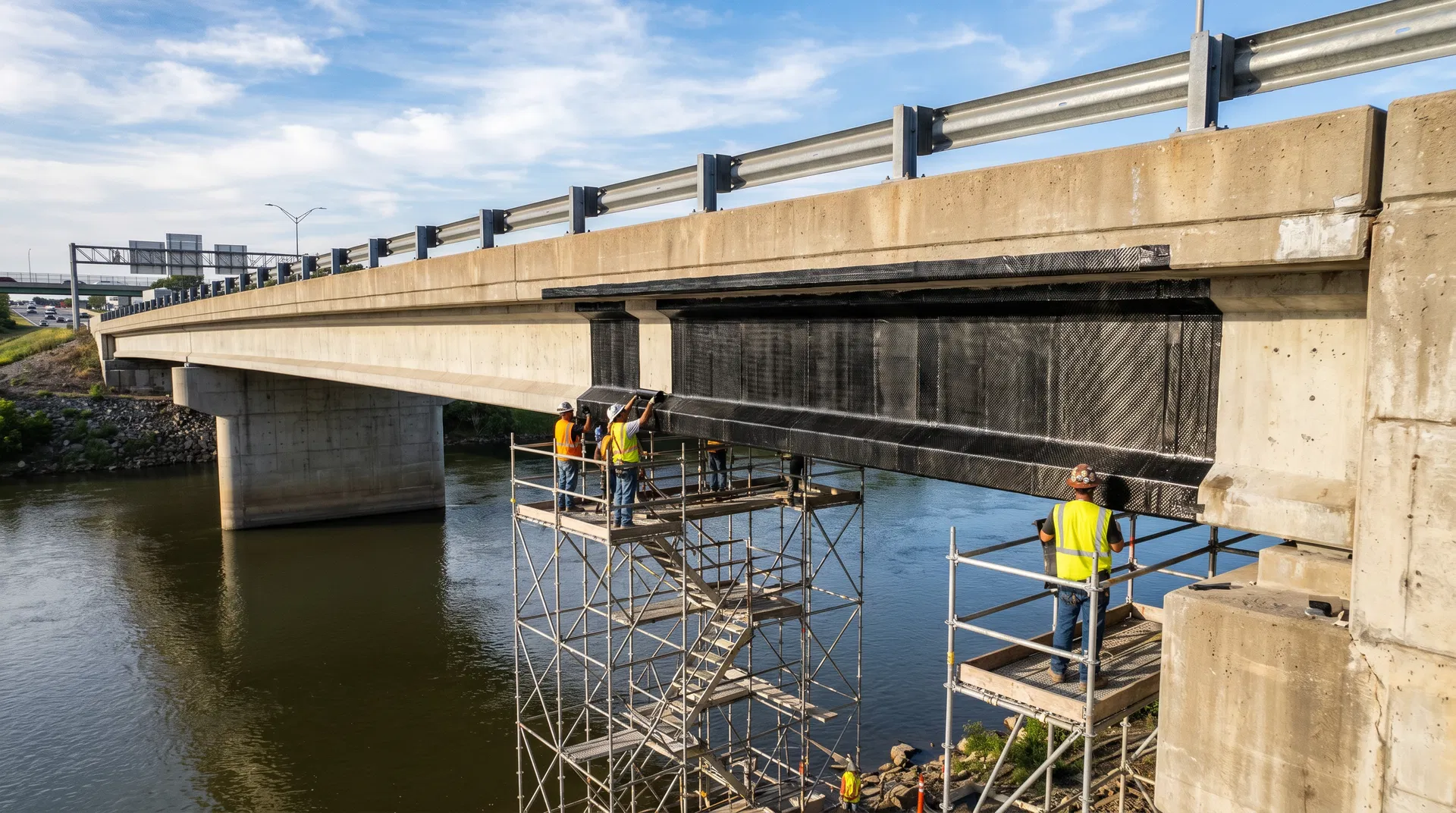

Simple-span and continuous slab bridges are strengthened with CFRP strips bonded to the soffit in the span direction. The design addresses both positive moment (midspan) and negative moment (over piers) regions. CFRP shear strengthening is applied at the supports where shear demand is highest.
Prestressed Concrete Girder Bridges
Prestressed I-girders and box girders that have lost effective prestress due to strand corrosion, vehicle impact, or overloading are restored with CFRP. The design accounts for the existing prestress forces and the interaction between internal prestressing and external CFRP reinforcement per ACI 440.2R and AASHTO guidelines.
Reinforced Concrete T-Beam Bridges
T-beam bridges with deteriorated stems are strengthened with CFRP laminates on the stem soffit for flexural capacity and U-wraps for shear. The flange (deck) may also require strengthening for transverse bending between stems.
Concrete Box Girder Bridges
Box girder bridges require CFRP application inside the box cells for positive moment strengthening and on the top surface for negative moment regions. Access and ventilation inside the box cells present logistical challenges that our crews are experienced in managing.
Concrete Arch Bridges
Historic concrete arch bridges can be strengthened with CFRP applied to the intrados (underside) of the arch. The design must account for the arch's thrust forces and the combined axial-flexural behavior of the strengthened section.
Culverts & Box Structures
Concrete box culverts and underground structures are strengthened with CFRP to address increased soil loads, traffic loads, or deterioration. The confined working environment requires specialized installation procedures and ventilation.
DOT Standards & Compliance
AASHTO LRFR Load Rating
All bridge strengthening designs are verified through load rating analysis per AASHTO Manual for Bridge Evaluation (MBE) using the Load and Resistance Factor Rating (LRFR) methodology. The strengthened bridge must achieve the required rating factors for Design, Legal, and Permit load levels.
NCHRP Report 655
NCHRP Report 655, 'Recommended Guide Specification for the Design of Externally Bonded FRP Systems for Repair and Strengthening of Concrete Bridge Elements,' provides bridge-specific design guidance that supplements ACI 440.2R for DOT applications.
State DOT Specifications
Each state DOT has specific requirements for CFRP materials, installation procedures, and quality assurance. Our team maintains current certifications and familiarity with DOT specifications across all 50 states, ensuring compliance with local requirements.
FHWA Technical Advisory
The Federal Highway Administration has issued technical advisories supporting the use of FRP systems for bridge strengthening, recognizing CFRP as a proven technology for extending bridge service life and avoiding costly replacement.
Our Bridge Strengthening Process
Bridge strengthening requires coordination with DOTs, traffic management, and rigorous quality assurance. Our process ensures compliance at every step.
Bridge Inspection & Load Rating
Licensed bridge engineers conduct a detailed inspection per AASHTO standards, including element-level condition assessment, material testing, and load rating analysis. The existing load rating identifies which members are deficient and by how much.
CFRP Design & DOT Coordination
The CFRP system is designed per ACI 440.2R and applicable AASHTO/NCHRP guidelines. Design drawings and calculations are submitted to the state DOT for review and approval. The design addresses all identified deficiencies and achieves the required load rating factors.
Traffic Control & Access
A traffic control plan is developed in coordination with the DOT and local authorities. For over-water bridges, marine access equipment (barges, work boats) is mobilized. For overpass bridges, lane closures and traffic shifts are coordinated to maintain traffic flow.
Concrete Repair & Surface Prep
Deteriorated concrete is removed and repaired per DOT specifications. The concrete surface is prepared to ICRI CSP 2-3. All cracks are evaluated and structurally significant cracks are injected with epoxy.
CFRP Installation
CFRP laminates and/or wet-layup fabric are installed per the approved design drawings. Installation is performed by certified technicians with bridge-specific CFRP experience. Real-time quality control ensures proper fiber alignment, saturation, and bond.
QA/QC & Updated Load Rating
Comprehensive quality assurance testing includes pull-off tests, void detection, and dimensional verification. An updated load rating analysis confirms the strengthened bridge achieves the required rating factors. Final documentation is submitted to the DOT.
CFRP Strengthening vs. Bridge Replacement
| Factor | CFRP Strengthening | Bridge Replacement |
|---|---|---|
| Typical Cost | $50-$200/SF of bridge deck | $250-$600/SF of bridge deck |
| Project Duration | 2-8 weeks | 1-3 years |
| Traffic Impact | Partial lane closures | Full closure or major detour |
| Load Rating Increase | 15-40% | New design capacity |
| Environmental Impact | Minimal | Significant demolition waste |
| Extended Service Life | 75+ years | 75 years (new) |
Related Resources
Bridge Beam Strengthening Case Study
See how CFRP restored a deteriorated bridge beam to full load-rated capacity.
Read MoreDOT Bridge Beam Strengthening
State DOT bridge strengthening project with full AASHTO load rating analysis.
Read MoreBridge Rehabilitation Guide
Comprehensive guide to CFRP applications in bridge rehabilitation and load rating improvement.
Read MoreBridge Strengthening FAQ
Can CFRP increase a bridge's load rating?
Yes. CFRP strengthening routinely increases bridge load ratings by 15% to 40%, depending on the existing condition and the amount of CFRP applied. This can elevate a load-posted bridge back to full legal load capacity, removing weight restrictions that impact commercial traffic and emergency vehicle access.
Is CFRP accepted by state DOTs for bridge strengthening?
Yes. CFRP bridge strengthening is accepted by DOTs in all 50 states. Many states, including California (Caltrans), New York, Texas, Florida, and Illinois, have established specifications and standard details for CFRP bridge applications. The technology has been used on thousands of DOT bridges nationwide.
How does CFRP bridge strengthening compare to bridge replacement?
CFRP strengthening typically costs 20-40% of bridge replacement cost and can be completed in weeks rather than the 1-3 years required for replacement. The bridge can often remain open to traffic (with lane restrictions) during CFRP installation, avoiding the detour costs and community disruption of full closure.
Can CFRP repair vehicle impact damage to bridge girders?
Yes. Vehicle impact (over-height trucks striking bridge girders) is one of the most common triggers for CFRP bridge repair. The damaged concrete is repaired and CFRP is applied to restore the girder's full structural capacity. This can often be completed in days, minimizing the duration of load restrictions on the bridge.
What is the design life of CFRP bridge strengthening?
CFRP bridge strengthening systems are designed for a 75-year service life, matching the AASHTO design life for new bridges. The carbon fiber is immune to corrosion, and the epoxy system is protected by UV-resistant coatings. Long-term monitoring studies on CFRP-strengthened bridges have confirmed excellent durability performance over 20+ years.
Does CFRP bridge strengthening require lane closures?
It depends on the bridge configuration. For underside work (soffit strengthening), the bridge can often remain fully open to traffic above while work proceeds below. For top-surface work (negative moment regions) or when access scaffolding is needed, partial lane closures may be required during off-peak hours.
