CFRP Column Wrapping & Confinement
Columns carry the weight of everything above them. When they need more capacity — whether for seismic compliance, increased loading, or deterioration repair — CFRP wrapping delivers dramatic strength and ductility increases without adding bulk, weight, or downtime. Our confinement systems increase axial capacity by 20-100% and transform brittle columns into ductile, earthquake-resistant elements.
What Is CFRP Column Wrapping?
CFRP column wrapping, also known as CFRP confinement, is the process of wrapping carbon fiber reinforced polymer fabric around the circumference of a concrete column to increase its structural capacity. When the column is loaded in compression, the concrete attempts to expand laterally (Poisson's effect). The CFRP wrap resists this lateral expansion, creating a triaxial stress state that dramatically increases the concrete's compressive strength and ultimate strain.
The confinement mechanism is governed by ACI 440.2R-17, Chapter 12. The confined concrete model accounts for the column geometry (circular vs. rectangular), the amount of CFRP (number of layers and fiber properties), and the concrete properties. For circular columns, the confining pressure is uniform and highly effective. For rectangular columns, the confining pressure is concentrated near the corners, requiring corner rounding and additional layers to achieve equivalent performance.
Beyond axial strengthening, CFRP wrapping provides three additional critical benefits: increased shear capacity from the circumferential fibers acting as additional transverse reinforcement, enhanced ductility from the increased ultimate concrete strain, and improved lap splice performance from the clamping pressure on inadequate splice regions. These combined benefits make CFRP wrapping the most versatile column strengthening technique available.
The technique has been extensively validated through decades of laboratory testing and thousands of real-world installations. It is the standard-of-care for seismic retrofit of non-ductile concrete columns in California (Caltrans), and is widely used across all 50 states for both seismic and gravity load strengthening applications.
Column Geometries We Strengthen
Column geometry significantly affects CFRP confinement effectiveness. Our engineers optimize the wrapping design for each column shape to maximize capacity increase.
Circular Columns
Circular columns are the ideal geometry for CFRP confinement. The uniform curvature creates consistent confining pressure around the entire perimeter, maximizing the effectiveness of the carbon fiber wrap. Confinement effectiveness ratios (κa) for circular columns are 1.0, meaning the full theoretical confinement is achieved. This makes circular columns the most efficient application for CFRP wrapping.
Square Columns
Square columns require corner rounding (minimum 1-inch radius per ACI 440.2R) before CFRP application. The flat sides reduce confinement effectiveness compared to circular sections, with κa values typically between 0.4 and 0.7 depending on the corner radius-to-side ratio. Despite this, significant axial capacity increases of 20-40% are routinely achieved.
Rectangular Columns
Rectangular columns with high aspect ratios (long side/short side > 2.0) present the greatest challenge for CFRP confinement. The confinement is most effective near the corners and least effective at the midpoint of the long sides. ACI 440.2R limits the aspect ratio to 2.0 for confinement design, though special detailing can extend this.
Oval & Elliptical Columns
Architectural columns with oval or elliptical cross-sections benefit significantly from CFRP wrapping. The curved geometry provides better confinement than rectangular sections, and the CFRP can be applied smoothly without the stress concentrations that occur at sharp corners.
The Four Benefits of CFRP Confinement
Increased Axial Capacity
CFRP confinement increases the compressive strength of the confined concrete by restricting lateral expansion under load. For circular columns, axial capacity increases of 50-100% are achievable. The confined concrete strength (f'cc) is calculated per ACI 440.2R Section 12.1.
Enhanced Ductility
Perhaps the most critical benefit for seismic applications. CFRP confinement dramatically increases the ultimate axial strain of the concrete, allowing the column to deform significantly before failure. This ductility is essential for energy dissipation during earthquake loading.
Improved Shear Capacity
The circumferential CFRP fibers also resist diagonal tension forces, increasing the column's shear capacity. This is particularly important for short columns (shear-critical) and columns in seismic zones where shear demand can exceed the original design capacity.
Lap Splice Clamping
In older buildings designed to pre-1971 codes, column lap splices are often inadequate for seismic forces. CFRP wrapping provides clamping pressure that prevents splice failure, a critical vulnerability in non-ductile concrete frames.
Our Column Wrapping Process
Every column wrapping project follows a precise six-step process to ensure maximum confinement effectiveness and long-term durability.
Column Assessment & Design
Engineers evaluate the existing column condition, including concrete strength (via core testing), rebar configuration (via GPR scanning), and current loading. The CFRP confinement design is performed per ACI 440.2R Chapter 12, specifying the number of wraps, fiber orientation, and overlap requirements.
Corner Preparation
For square and rectangular columns, corners are rounded to a minimum 1-inch (25mm) radius using a concrete grinder. This critical step prevents stress concentrations that would cause premature fiber rupture at sharp edges. The entire column surface is then prepared to ICRI CSP 2-3.
Primer & Putty Application
A two-component epoxy primer is applied to seal the concrete pores. Any surface irregularities, bug holes, or voids are filled with epoxy putty to create a smooth, uniform substrate that ensures full contact between the CFRP and the column surface.

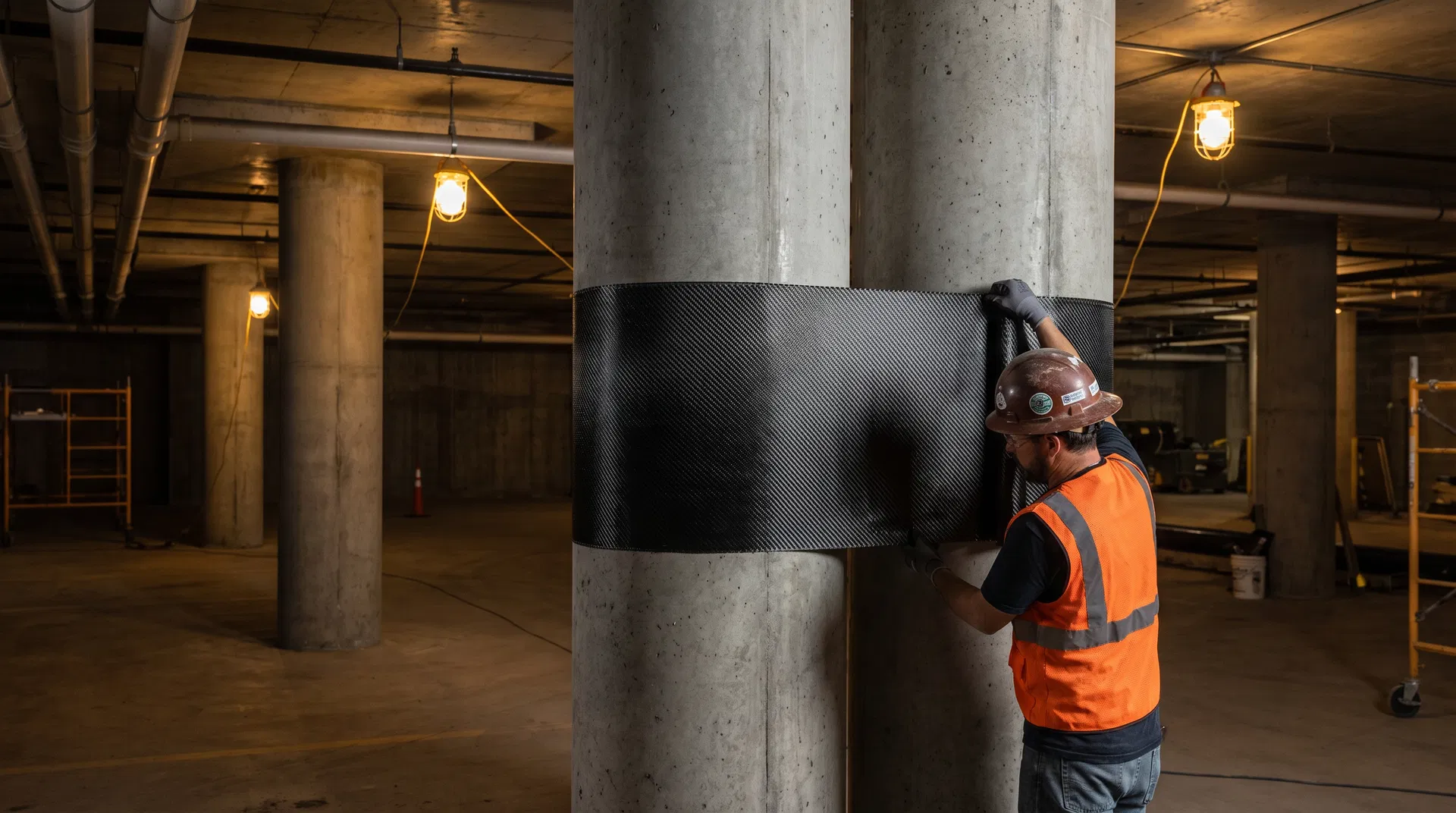

CFRP Wrapping
Wet-layup carbon fiber fabric is saturated with epoxy resin and wrapped around the column in the circumferential (hoop) direction. Each layer overlaps by a minimum of 6 inches (150mm) in the circumferential direction. Multiple layers are applied as specified by the design, with each layer carefully aligned and debubbled.
Overlap & Termination
The CFRP wrap extends a minimum of 2 inches beyond the column-to-slab or column-to-beam interface to ensure full confinement of the plastic hinge zone. Longitudinal overlaps between adjacent wraps are staggered to prevent continuous weak planes.
Protective Coating & QA
A UV-resistant, fire-rated protective coating is applied over the cured CFRP. Pull-off testing per ASTM D7522 verifies bond integrity. The completed column is inspected for fiber alignment, void content, and dimensional compliance.
CFRP Wrapping vs. Traditional Column Strengthening
| Factor | CFRP Wrapping | Steel Jacketing | Concrete Jacketing |
|---|---|---|---|
| Installation Time | 1-3 days per column | 3-7 days per column | 2-4 weeks per column |
| Added Size | 1-5mm total | 6-12mm steel + grout | 4-8 inches concrete |
| Added Weight | Negligible | Moderate | Significant |
| Corrosion Risk | None | High (requires coating) | Low (if detailed properly) |
| Seismic Ductility | Excellent | Good | Good |
| Typical Cost | $3,000-$15,000 | $8,000-$25,000 | $15,000-$40,000 |
Related Resources
Seismic Retrofit Services
Learn about our comprehensive seismic retrofit program including column wrapping, joint strengthening, and ductility enhancement.
Read MoreSeismic Column Retrofit Case Study
See how CFRP wrapping transformed non-ductile columns into earthquake-resistant elements.
Read MoreCFRP Seismic Retrofit: California & Pacific NW
In-depth guide to CFRP seismic retrofit applications in high-seismic regions.
Read MoreColumn Wrapping FAQ
How many layers of CFRP are needed to wrap a column?
The number of layers depends on the required capacity increase, column geometry, and concrete strength. Typical applications range from 2 to 6 layers of carbon fiber fabric. For seismic retrofit applications requiring significant ductility enhancement, 3-5 layers are common. The exact number is determined by engineering calculations per ACI 440.2R.
Can CFRP column wrapping be applied to columns in occupied buildings?
Yes. CFRP column wrapping is one of the least disruptive structural strengthening methods available. The work requires no shoring, no heavy equipment, and generates minimal noise and dust. Columns in occupied office buildings, hospitals, and retail spaces are routinely wrapped while the building remains fully operational.
Does CFRP wrapping change the appearance of the column?
The CFRP wrap adds approximately 1-3mm to the column surface per layer. After the protective coating is applied, the column can be painted to match the surrounding finishes. The visual impact is minimal, and in most cases, the wrapped column is indistinguishable from the original after finishing.
How does CFRP column wrapping compare to steel jacketing?
CFRP wrapping is lighter (no added dead load), faster to install (days vs. weeks), corrosion-proof, and requires no welding or heavy lifting. Steel jackets add significant weight, require crane access, and are susceptible to corrosion in parking garages and coastal environments. CFRP is the preferred method for most modern column strengthening projects.
Is CFRP column wrapping effective for seismic retrofit?
Extremely effective. CFRP confinement is one of the most proven seismic retrofit techniques for non-ductile concrete columns. It increases both strength and ductility, which are the two critical factors in seismic performance. Thousands of columns in California, the Pacific Northwest, and other seismic zones have been successfully retrofitted with CFRP.
What is the cost of CFRP column wrapping?
CFRP column wrapping typically costs between $3,000 and $15,000 per column, depending on the column size, number of CFRP layers required, surface condition, and access constraints. This is generally 30-50% less expensive than steel jacketing or concrete section enlargement when total project costs (including downtime) are considered.
