Load Capacity Upgrade
When your structure can no longer safely support its intended loads, you face a critical decision. Whether driven by a change in use, the installation of heavy equipment, updated building codes, or the natural degradation of materials over time, the need for increased load capacity is a common challenge in the lifecycle of any building. Carbon Fiber Reinforced Polymer (CFRP) strengthening offers a modern, efficient, and minimally invasive alternative, delivering the capacity increase without the cost, disruption, and space loss of traditional methods.
The Modern Solution to Structural Limitations
By leveraging the incredible tensile strength of carbon fibers—materials up to ten times stronger than steel by weight—we can significantly increase the load-carrying capacity of existing concrete and steel structures. The process involves bonding thin, lightweight CFRP laminates or fabrics to the surface of structural elements using a high-performance epoxy adhesive. This composite system works in tandem with the existing structure, providing supplemental tensile reinforcement to enhance flexural (bending), shear, and axial capacity.
The result is a structure that can safely handle increased loads without the drawbacks of traditional demolition and reconstruction. A typical CFRP application adds less than 1/4 inch of thickness to a structural member, preserving valuable floor-to-ceiling heights and maximizing usable square footage. This makes it an ideal solution for building repurposing projects, data center upgrades, parking garage restorations, and any scenario where maximizing operational continuity and minimizing disruption is paramount.
Our ACI-Compliant Installation Process
1. Structural Assessment & Engineering Design
Our engineering partners conduct a thorough structural assessment to determine the precise strengthening requirements. A detailed CFRP design is prepared, specifying the material type, orientation, layers, and bond length.
2. Substrate Preparation (CSP-3)
The concrete surface is mechanically abraded to a Concrete Surface Profile (CSP) of 3, creating a clean, sound, and open-pored substrate for a tenacious bond. All corners are chamfered to a 1-inch radius.
3. Primer & Putty Application
A low-viscosity epoxy primer seals the concrete pores. A high-modulus epoxy putty is then applied to fill any surface irregularities, ensuring a smooth, uniform surface for the CFRP.

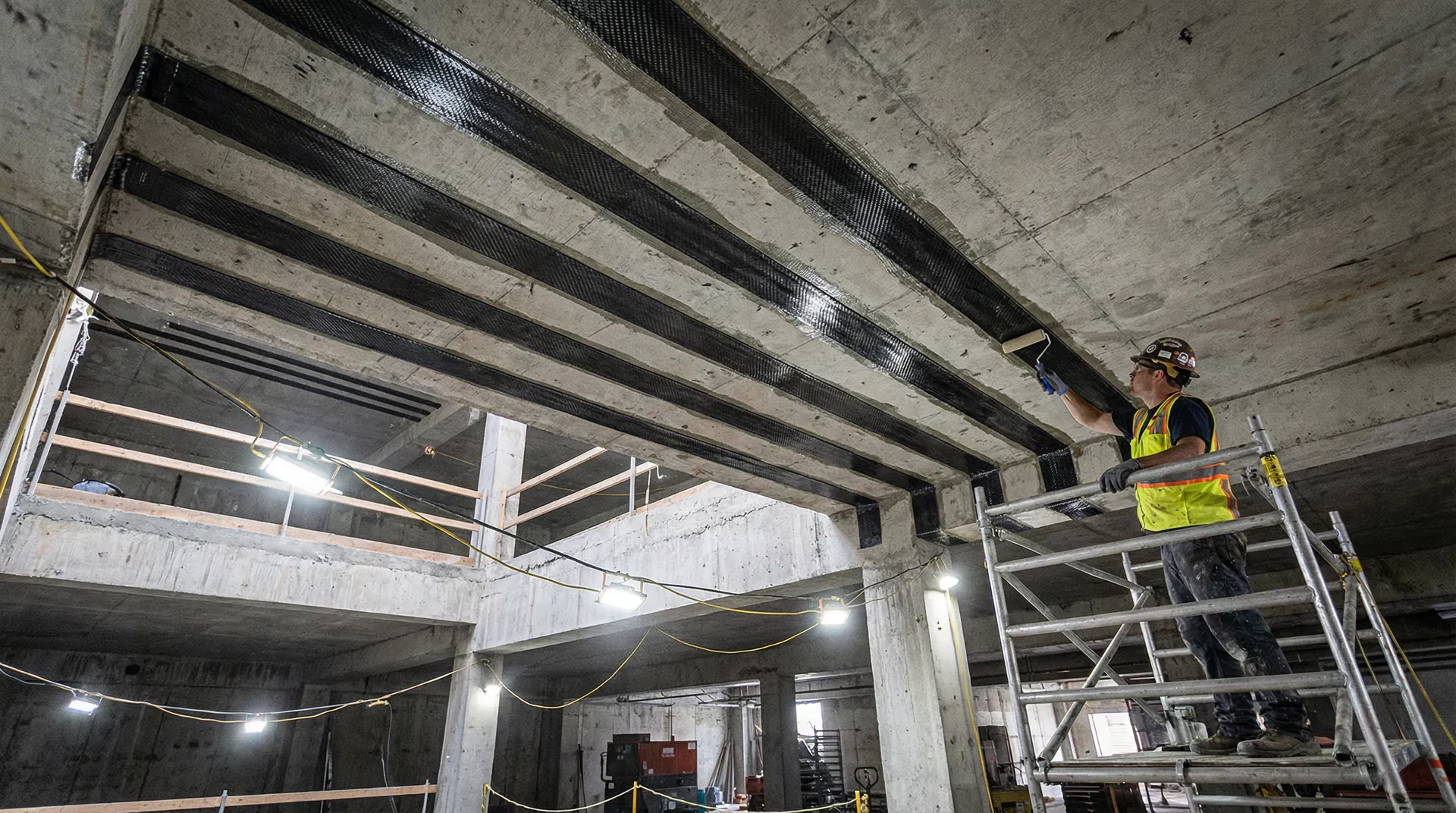

4. CFRP Saturation & Installation
A saturating epoxy resin is applied, and the carbon fiber fabric or laminate is placed into the wet epoxy. Specialized rollers ensure full saturation and remove any entrapped air for a void-free bond line.
5. Curing & Quality Control
The system cures for 24-72 hours. We then perform rigorous QC, including visual inspection, acoustic tap testing, and pull-off adhesion tests to verify bond strength meets ACI 440.2R-17 standards (>200 psi).
6. Protective Topcoat Application
To ensure long-term durability and fire resistance, a compatible protective topcoat (e.g., cementitious or polyurethane) is applied over the cured CFRP system for UV and fire protection.
Common Applications for Load Upgrades
Building Repurposing
Converting a structure from one use to another — office to warehouse, retail to manufacturing, residential to commercial — often requires higher floor load ratings. CFRP strengthening increases slab and beam capacity to meet the new occupancy requirements without structural demolition or reconstruction.
Warehouse Conversions
Warehouse-to-office, warehouse-to-retail, and warehouse-to-residential conversions are increasingly common in urban areas. These conversions frequently require floor load upgrades, mezzanine support strengthening, and column capacity increases that CFRP can deliver efficiently.
Parking Garage Upgrades
Aging parking garages often need capacity upgrades to accommodate heavier vehicles, additional floors, or code compliance. CFRP strengthening of beams, slabs, and columns restores and exceeds original design capacity while the garage remains operational.
Equipment Installation
Installing heavy equipment — HVAC systems, generators, manufacturing machinery, data center servers — may exceed the existing floor's load-carrying capacity. CFRP strengthening provides targeted capacity increases exactly where the additional loads will be applied.
Floor Load Increases
General floor load increases for code compliance, occupancy changes, or operational requirements. CFRP is applied to the underside of slabs and beams to increase flexural capacity, allowing higher live load ratings without reducing ceiling height or usable space.
Bridge Load Rating
Bridges with insufficient load ratings can be strengthened with CFRP to meet current AASHTO requirements, avoiding costly bridge replacement. CFRP is particularly effective for increasing flexural capacity of bridge decks and girders.
Code Compliance & Standards
Our work is governed by a stringent set of industry standards to ensure safety, reliability, and performance. We design and install all CFRP systems in strict accordance with:
ACI 440.2R-17
Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures.
ICC-ES Acceptance Criteria (AC125)
Ensures our systems are code-compliant for concrete and masonry strengthening.
AASHTO Specifications
For all bridge and transportation infrastructure strengthening applications.
Structure Types Served
CFRP strengthening is a versatile solution applicable to a wide range of structures and components:
Commercial & Industrial: Office buildings, data centers, warehouses, manufacturing plants.
Infrastructure: Parking garages, bridges, tunnels, and transportation facilities.
Specialized Structures: Waterfront/marine structures, historical buildings, and stadiums.
CFRP vs. Traditional Methods
| Method | Install Time | Space Impact | Disruption | Relative Cost | Corrosion Risk |
|---|---|---|---|---|---|
| CFRP Strengthening | Days | < 2mm | Minimal | $$ | None |
| Steel Plate Bonding | Weeks | 6-12mm | Moderate | $$$ | High |
| Section Enlargement | Months | 100-200mm | Major | $$$$ | Low |
| External Post-Tensioning | Weeks | 50-100mm | Moderate | $$$$ | Moderate |
Real-World Impact: Before & After CFRP
Scenario: Office to Data Center Conversion
A 1970s-era office building needs to be converted into a high-density data center. The existing concrete slabs are rated for a live load of 50 psf, but the new server racks will impose a load of 150 psf.
Traditional Approach (Before)
Demolish and recast slabs or install a dense grid of new steel beams. This means months of construction, complete evacuation, and reduced floor-to-ceiling height, impacting cooling and cabling.
CFRP Approach (After)
CFRP laminates are installed on the slab underside. The installation takes just 3 weeks, requires no evacuation, and adds <1/4 inch to the profile. The data center opens months ahead of schedule at 50% lower cost.
50%
Lower Project Cost
75%
Faster Return to Service
100%
Preserved Ceiling Height
Frequently Asked Questions
How long does a CFRP system last?
When properly designed and installed according to ACI 440.2R-17 guidelines, a CFRP strengthening system is considered a permanent repair with a service life of 50+ years. The system becomes an integral part of the structure and will last as long as the substrate it is bonded to.
What is the fire resistance of CFRP systems?
Standard epoxy resins have low fire resistance. However, we can achieve code-required fire ratings of up to 4 hours by applying specialized intumescent or cementitious fire protection coatings over the installed CFRP system.
Is the process disruptive to building occupants?
Disruption is minimal. The process is relatively quiet, low-vibration, and does not require heavy machinery. In many cases, work can be performed in occupied buildings, often during off-hours, without impacting daily operations.
How do you verify the installation was done correctly?
We employ a multi-step QC process, including visual inspection, acoustic tap-testing, and destructive pull-off tests on sample locations to quantitatively measure the bond strength and ensure it meets or exceeds the engineering design specifications (typically >200 psi).
Can you paint over the finished CFRP repair?
Yes. After the application of a protective topcoat, the repaired area can be painted to match the surrounding finishes, making the repair virtually invisible.
