Seismic Retrofit with CFRP
Carbon fiber reinforced polymer wrapping is the most effective method for seismic strengthening of existing concrete structures. CFRP column wrapping and confinement systems increase ductility, shear capacity, and axial load resistance — the three critical factors in seismic performance — without adding significant mass or altering the building's dynamic response.
Why CFRP for Seismic Retrofit?
Seismic retrofit of existing structures presents unique challenges that make CFRP an ideal solution. Traditional retrofit methods—steel jacketing, concrete jacketing, and section enlargement—add significant mass to the structure. This added weight increases the seismic forces the building must resist during an earthquake and can necessitate costly and disruptive foundation upgrades. CFRP, in contrast, adds virtually no mass while providing superior confinement and ductility enhancement, a critical advantage in seismic design.
The lightweight nature of CFRP is paramount for seismic applications because earthquake-induced forces are directly proportional to the building's mass (F=ma). Adding heavy steel or concrete jackets to columns increases the seismic demand on the entire lateral force-resisting system. This increased demand can partially or even wholly offset the intended capacity increase, leading to a less efficient and more expensive retrofit. CFRP provides the necessary capacity increase without the associated mass penalty, resulting in a much more favorable demand-to-capacity ratio and a more resilient structure.
Beyond mass, CFRP excels in enhancing the ductility of concrete members. Ductility—the ability of a material to undergo large inelastic deformations without a significant loss of strength—is the single most important factor in seismic performance. CFRP wrapping provides passive confinement to concrete columns. Under lateral seismic loading, the concrete core begins to expand. This expansion is restrained by the high-tensile-strength CFRP jacket, which generates a confining pressure. This pressure dramatically increases the concrete's ultimate compressive strain capacity, allowing the column to deform in a ductile manner rather than failing in a brittle, explosive fashion. This controlled, ductile behavior allows the structure to dissipate seismic energy safely, preventing catastrophic collapse and protecting lives.
CFRP confinement is governed by internationally recognized standards, primarily ACI 440.2R-17, Chapter 12. This guide provides detailed design equations for calculating the confined concrete strength and ultimate strain based on the number of CFRP layers, fiber properties, column geometry, and corner radius. Our engineers strictly adhere to these guidelines, as well as supplementary standards like ASCE 41-17 (Seismic Evaluation and Retrofit of Existing Buildings), to ensure every design is safe, efficient, and code-compliant.
Seismic Retrofit Techniques

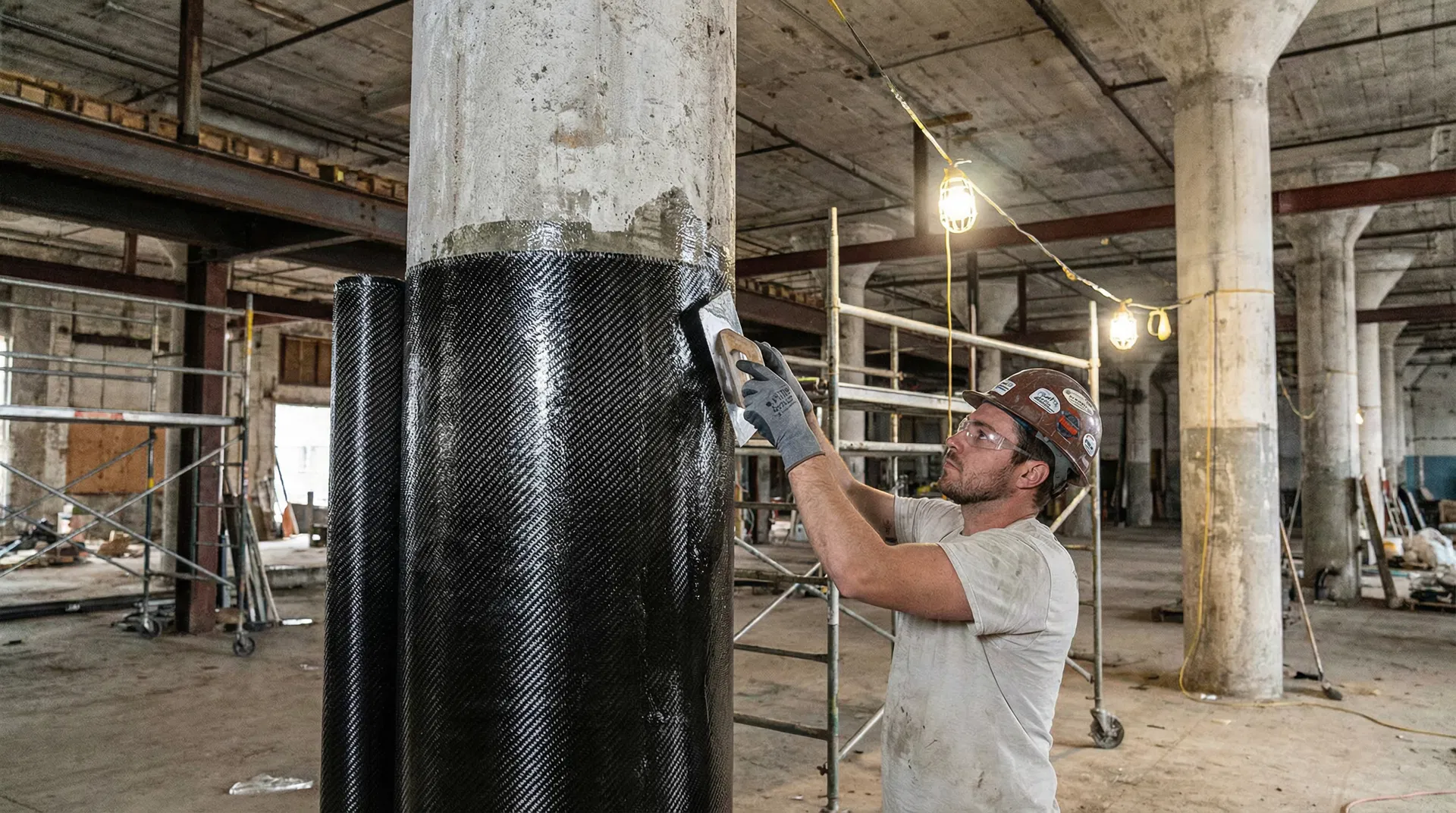

Column Wrapping
Full or partial CFRP wrapping of concrete columns increases confinement pressure, ductility, and shear capacity. Column wrapping is the most common seismic retrofit application, effective for both circular and rectangular columns. The number of CFRP layers is engineered based on the required confinement pressure and seismic demand.
Joint Strengthening
Beam-column joints are critical failure points during seismic events. CFRP reinforcement applied to joint regions increases shear capacity and prevents the brittle joint failures that can lead to progressive structural collapse. Joint strengthening is particularly important for pre-1970s concrete frames designed before modern seismic detailing requirements.
Shear Wall Strengthening
CFRP applied to concrete or masonry shear walls increases in-plane shear capacity and out-of-plane bending resistance. This technique is effective for buildings where existing shear walls are insufficient for current seismic code requirements or where new openings have reduced wall capacity.
Infill Wall Reinforcement
Unreinforced masonry infill walls in concrete frames can fail catastrophically during earthquakes. CFRP overlay systems applied to infill walls provide tensile reinforcement that prevents out-of-plane collapse while maintaining the wall's contribution to lateral resistance.
The CFRP Seismic Retrofit Process: A Step-by-Step Guide
Step 1: Initial Structural Assessment & Feasibility Analysis
The process begins with a comprehensive evaluation of the existing structure. Our engineers, in collaboration with the Engineer of Record, review original construction drawings, structural calculations, and any previous modification records. We conduct a site visit to perform a visual inspection, identify potential deficiencies, and take precise measurements. This phase may involve non-destructive testing (NDT) like ground-penetrating radar (GPR) to locate existing rebar or Schmidt hammer tests to estimate concrete strength. The goal is to build a complete picture of the structure's current state and its seismic vulnerabilities.
Step 2: Detailed Engineering Design & CFRP Specification
Using the data from the assessment, our structural engineering partners perform a detailed analysis using software like ETABS or SAP2000. They model the structure and apply seismic loads as defined by ASCE 7-22 and local building codes. This analysis determines the specific demand on each structural element. Based on this, we design the CFRP retrofit, specifying the exact number of layers, fiber orientation, and anchorage details required for each column, beam, or wall. The design is optimized for performance and cost-effectiveness, ensuring the retrofit meets or exceeds the required performance objectives, whether it's life safety, immediate occupancy, or collapse prevention.
Step 3: Concrete Surface Preparation
This is the most critical step for ensuring a durable bond between the CFRP and the concrete. The substrate must be clean, dry, and sound. Our certified technicians begin by mechanically abrading the concrete surface using diamond grinders or light shot-blasting to remove any laitance, contaminants, or existing coatings. This process creates a roughened surface profile (typically a Concrete Surface Profile of CSP 3-4) for optimal mechanical adhesion. All corners on columns and beams are rounded to a minimum radius (typically 1 inch) as specified by ACI 440.2R-17 to prevent stress concentrations in the CFRP fabric. Any defects, cracks, or spalls in the concrete are repaired with a high-strength epoxy mortar.
Step 4: Primer & Putty Application
Once the surface is prepared and cleaned, a two-part epoxy primer is applied to the concrete. This low-viscosity primer penetrates the concrete pores, sealing the surface and creating a high-strength substrate for the subsequent layers. Following the primer, a high-modulus epoxy putty or thickened epoxy is used to fill any remaining small voids or surface irregularities. This creates a perfectly smooth, monolithic surface, ensuring that the CFRP fabric will be in uniform contact with the substrate, which is essential for effective load transfer.
Step 5: CFRP Saturation & Application
With the surface prepared, the CFRP system is applied. We use a dry-layup process. The high-strength, unidirectional carbon fiber fabric is cut to the precise dimensions required by the design. Our technicians then apply a saturating epoxy resin (saturant) to the primed surface. The dry fabric is immediately placed onto the wet saturant and is pressed firmly into place using ribbed rollers. The rollers are used to work the resin through the fabric, ensuring full saturation of every fiber tow and removing all air voids. For multi-layer applications, subsequent layers are applied while the previous layer is still wet, creating a single, monolithic composite shell.
Step 6: Curing & Quality Control Inspection
The epoxy resin cures under ambient conditions, typically within 24-72 hours, to achieve its full mechanical properties. During this time, the area is protected from moisture and impact. After curing, our quality control manager performs a thorough inspection. This includes a visual check for any voids, delaminations, or dry spots. We also perform acoustic tap testing (sounding) across the entire surface to identify any subsurface voids that are not visually apparent. Any identified defects are immediately repaired according to ACI 440 guidelines.
Step 7: Application of Protective Top Coat & Documentation
While CFRP itself is highly durable, the epoxy resin can be susceptible to degradation from UV radiation. To ensure long-term performance, a compatible protective top coat is applied over the entire system. This is typically a UV-stable polyurethane or acrylic paint, which can be color-matched to the surrounding structure. Upon completion, we provide the building owner and Engineer of Record with a comprehensive documentation package, including material data sheets, installation records, quality control reports, and as-built drawings for their records.
Cost-Benefit Analysis: CFRP vs. Traditional Methods
When evaluating seismic retrofit options, it's crucial to look beyond the initial material cost and consider the total project cost, timeline, and long-term value. While CFRP materials can have a higher upfront cost per unit than steel or concrete, the overall project cost is often significantly lower.
| Feature | CFRP Strengthening | Steel Jacketing | Concrete Jacketing |
|---|---|---|---|
| Added Mass | Negligible | High | Very High |
| Foundation Upgrades | Rarely Required | Often Required | Almost Always Required |
| Installation Speed | Fast (1-2 days per column) | Slow (5-7 days per column) | Very Slow (7-10 days per column) |
| Disruption to Occupants | Minimal (low noise, no hot work) | High (welding, heavy equipment) | Very High (formwork, concrete pouring) |
| Architectural Impact | Minimal (adds < 1/4 inch) | Significant (adds 4-6 inches) | Major (adds 8-12 inches) |
| Corrosion Resistance | Excellent | Poor (requires maintenance) | Fair (can spall) |
| Total Project Timeline | Shortest | Moderate | Longest |
Key Cost & Timeline Considerations:
- Labor & Equipment: CFRP installation is fast and requires only light hand tools. Steel and concrete jacketing involve heavy equipment, welding, formwork, and concrete pumps, leading to much higher labor and equipment costs.
- Business Interruption: For commercial properties, hospitals, and manufacturing facilities, minimizing downtime is critical. The speed and low-impact nature of CFRP installation means that business operations can often continue with minimal disruption, providing a massive cost saving compared to the weeks or months of shutdown required for traditional methods.
- Foundation Costs: The added weight from steel or concrete jackets often triggers the need for expensive and highly disruptive foundation strengthening, a cost that is almost always avoided with lightweight CFRP.
- Long-Term Maintenance: CFRP is an inert, non-corroding material that requires virtually no maintenance. Steel jackets require regular inspection and repainting to prevent corrosion, adding to the life-cycle cost of the structure.
While a precise cost range depends heavily on project specifics, CFRP seismic retrofits can be 20-50% more cost-effective than traditional methods when considering the total installed cost and associated savings from reduced disruption and avoided foundation work.
Applicable Building Types
Pre-1970s concrete frame buildings
Non-ductile concrete columns and frames
Parking garages with inadequate lateral systems
Concrete tilt-wall industrial buildings
Masonry bearing wall structures
Bridge piers and abutments
Concrete water tanks and reservoirs
Hospital and essential facility upgrades
School and educational facility retrofits
Government and military structures
Before & After: Real-World Scenarios
Scenario 1: Non-Ductile Concrete Hospital Wing
Before:
A 5-story hospital wing built in the 1960s has non-ductile concrete columns with insufficient transverse reinforcement (ties). A seismic analysis reveals the columns are at high risk of shear failure and collapse in a design-level earthquake, posing an unacceptable risk to patients and staff. Traditional retrofit would require evacuating entire floors for months, causing massive operational disruption.
After CFRP Retrofit:
Our team works floor by floor, typically at night, to minimize disruption. Columns are wrapped with 3-5 layers of CFRP. The entire retrofit for a typical floor is completed in two weeks. The hospital remains fully operational. The retrofitted columns now have the required ductility and shear capacity to meet current seismic performance objectives, ensuring the facility can remain in service even after a major seismic event.
Scenario 2: Tilt-Up Warehouse with Inadequate Connections
Before:
A large distribution center constructed with concrete tilt-up walls has connections to the roof diaphragm that are insufficient for out-of-plane seismic forces. The analysis shows a high probability of the walls pulling away from the roof, leading to a partial or total collapse. The owner needs a solution that doesn't interrupt the 24/7 operation of the facility.
After CFRP Retrofit:
CFRP strips are used to create new, high-strength load paths, anchoring the wall panels to the roof diaphragm. The installation is performed from the exterior using aerial lifts, with no impact on interior operations. The work is completed in a fraction of the time and at a lower cost than installing new steel braces, and the facility's critical operations are never compromised.
Frequently Asked Questions (FAQ)
How long does a CFRP seismic retrofit take?
The timeline is significantly shorter than traditional methods. For a single column, the process from surface prep to final topcoat can be completed in as little as 2-3 days. A typical floor in a multi-story building can often be completed in 1-2 weeks, depending on the number of elements.
Is the process disruptive to building tenants?
We specialize in minimizing disruption. The process is low-noise, generates minimal dust (with proper containment), and does not involve hot work (welding). We can often schedule work during off-hours (nights and weekends) to ensure that commercial or residential tenants are not disturbed.
What is the design life of a CFRP system?
When properly designed and installed, a CFRP strengthening system is considered a permanent repair with a design life of 50+ years. The materials are inert, non-corroding, and have excellent fatigue resistance, ensuring they will outlast the structure they are applied to.
Can CFRP be painted or covered?
Absolutely. After the final inspection, the CFRP system is coated with a protective, UV-stable topcoat. This topcoat can be a specific color to match the existing architectural finishes. The repaired areas can then be framed and covered with drywall or other architectural finishes to be completely concealed.
How does CFRP compare to steel for seismic retrofitting?
CFRP offers a much higher strength-to-weight ratio. A single layer of CFRP fabric can provide the equivalent tensile strength of a thick steel plate, but at less than 10% of the weight. This lightweight property is the key advantage in seismic applications, as it strengthens the structure without increasing the seismic load.
Is CFRP approved by building codes?
Yes. The use of FRP systems for strengthening concrete structures is explicitly covered by the American Concrete Institute (ACI) in their document ACI 440.2R-17, which is referenced by the International Building Code (IBC). Our designs are fully compliant with these established industry standards.
What kind of warranty do you provide?
We provide a comprehensive warranty that covers both the materials and the installation. The specific terms depend on the project, but we stand behind our work as a permanent structural solution.
