CFRP Beam Strengthening
Concrete beams are the backbone of every structure. When they lose capacity due to corrosion, overloading, or code changes, CFRP strengthening restores and exceeds their original design strength — without demolition, without shoring, and without displacing a single occupant. Our ACI 440.2R compliant beam strengthening systems increase flexural capacity by 25-60% in days, not months.
What Is CFRP Beam Strengthening?
CFRP beam strengthening is the process of bonding high-strength carbon fiber reinforced polymer (CFRP) materials to the exterior surface of concrete beams to increase their load-carrying capacity. The carbon fiber acts as external tensile reinforcement, supplementing the internal steel rebar and allowing the beam to resist greater bending moments and shear forces than it was originally designed for.
The technique is governed by ACI 440.2R-17, "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures." This document provides the complete design methodology, including strain compatibility analysis, environmental reduction factors, and the critical debonding strain limits that prevent premature failure of the CFRP-to-concrete bond.
For flexural strengthening, CFRP laminates or fabric are applied to the tension face (soffit) of the beam. The carbon fiber resists the tensile stresses that develop when the beam is loaded, effectively increasing the beam's moment capacity. For shear strengthening, CFRP fabric is applied as U-wraps around the sides and bottom of the beam, functioning similarly to additional stirrups in resisting diagonal tension forces.
The key advantage of CFRP beam strengthening over traditional methods like section enlargement or external post-tensioning is its minimal impact on the structure. CFRP adds less than 2mm to the beam surface, preserves ceiling heights, and can be installed while the building remains fully operational. This makes it the preferred solution for occupied buildings, parking garages, and bridges where downtime is costly or impractical.
Beam Types We Strengthen
Every beam geometry presents unique engineering challenges. Our team has strengthened thousands of beams across every configuration, from simple rectangular spans to complex prestressed transfer beams.
Rectangular Beams
The most common application for CFRP flexural strengthening. Unidirectional carbon fiber laminates or fabric are bonded to the tension face (soffit) of rectangular beams to increase moment capacity. For beams with shear deficiencies, U-wraps are applied to the sides and bottom.
T-Beams & L-Beams
T-beams in parking garages and bridge decks present unique challenges due to the flange geometry. CFRP strips are applied to the stem soffit for flexural strengthening, while U-wraps address shear. The flange-to-web junction requires careful detailing to prevent debonding at stress concentrations.
Continuous Beams
Multi-span continuous beams require CFRP at both the bottom (positive moment regions at midspan) and top (negative moment regions over supports). Negative moment strengthening involves bonding CFRP to the top surface of the slab near the support, requiring careful coordination with existing reinforcement.
Prestressed Beams
Prestressed concrete beams that have lost effective prestress due to strand corrosion or relaxation can be restored using CFRP. The design must account for the existing prestress forces, the cracking moment, and the interaction between internal prestressing and external CFRP reinforcement per ACI 440.2R Section 10.2.
Deep Beams & Transfer Beams
Transfer beams in high-rise buildings carry enormous loads from columns above. CFRP strengthening of these critical elements requires detailed finite element analysis and often involves multiple layers of high-modulus carbon fiber to achieve the required capacity increase without altering the building's load path.
Spandrel Beams
Spandrel beams along building perimeters are subject to combined flexure and torsion. CFRP strengthening for torsion involves wrapping the beam with fibers oriented at 45 degrees to the longitudinal axis, creating a truss mechanism that resists the twisting forces.
Why Do Concrete Beams Need Strengthening?
Corrosion of Internal Reinforcement
Chloride intrusion from deicing salts or coastal environments causes rebar corrosion, reducing the beam's effective steel area and moment capacity. This is the #1 cause of beam deterioration in parking garages and bridges.
Increased Loading Requirements
Building repurposing (e.g., office to warehouse), new equipment installations, or heavier vehicle loads on parking decks require beams to carry loads beyond their original design capacity.
Design or Construction Deficiencies
Insufficient reinforcement from original design errors, missing stirrups, or construction defects that reduced the as-built capacity below the design intent.
Code Changes & Compliance
Updated building codes (ACI 318-19) and bridge load rating standards (AASHTO LRFR) may require higher capacities than the original design code specified, triggering mandatory strengthening.
Impact or Overload Damage
Vehicle impacts in parking garages, accidental overloading, or construction loading that caused cracking or permanent deformation requiring capacity restoration.
Freeze-Thaw & Environmental Damage
Repeated freeze-thaw cycles cause concrete scaling and microcracking, reducing the concrete's contribution to beam capacity. Chemical exposure in industrial settings accelerates deterioration.
Our Beam Strengthening Process
Every beam strengthening project follows a rigorous six-step process from initial analysis through final quality verification, ensuring the strengthened beam meets or exceeds all design requirements.
Structural Analysis & Load Rating
Licensed professional engineers perform a detailed structural analysis of the existing beam, including material testing (concrete cores, rebar scanning), load calculations per ACI 318, and determination of the existing capacity deficit. For bridges, this includes a load rating per AASHTO LRFR.
CFRP Design per ACI 440.2R
The engineering team designs the CFRP system specifying fiber orientation, number of plies, width, length, and anchorage details. The design accounts for all applicable load combinations, environmental exposure conditions, and the specific failure modes that must be prevented.
Concrete Surface Preparation
The beam soffit and sides are prepared to ICRI CSP 2-3 using diamond grinding. All existing cracks wider than 0.01 inches are injected with structural epoxy. Corroded rebar is exposed, cleaned, and patched with repair mortar before CFRP application.
CFRP Application

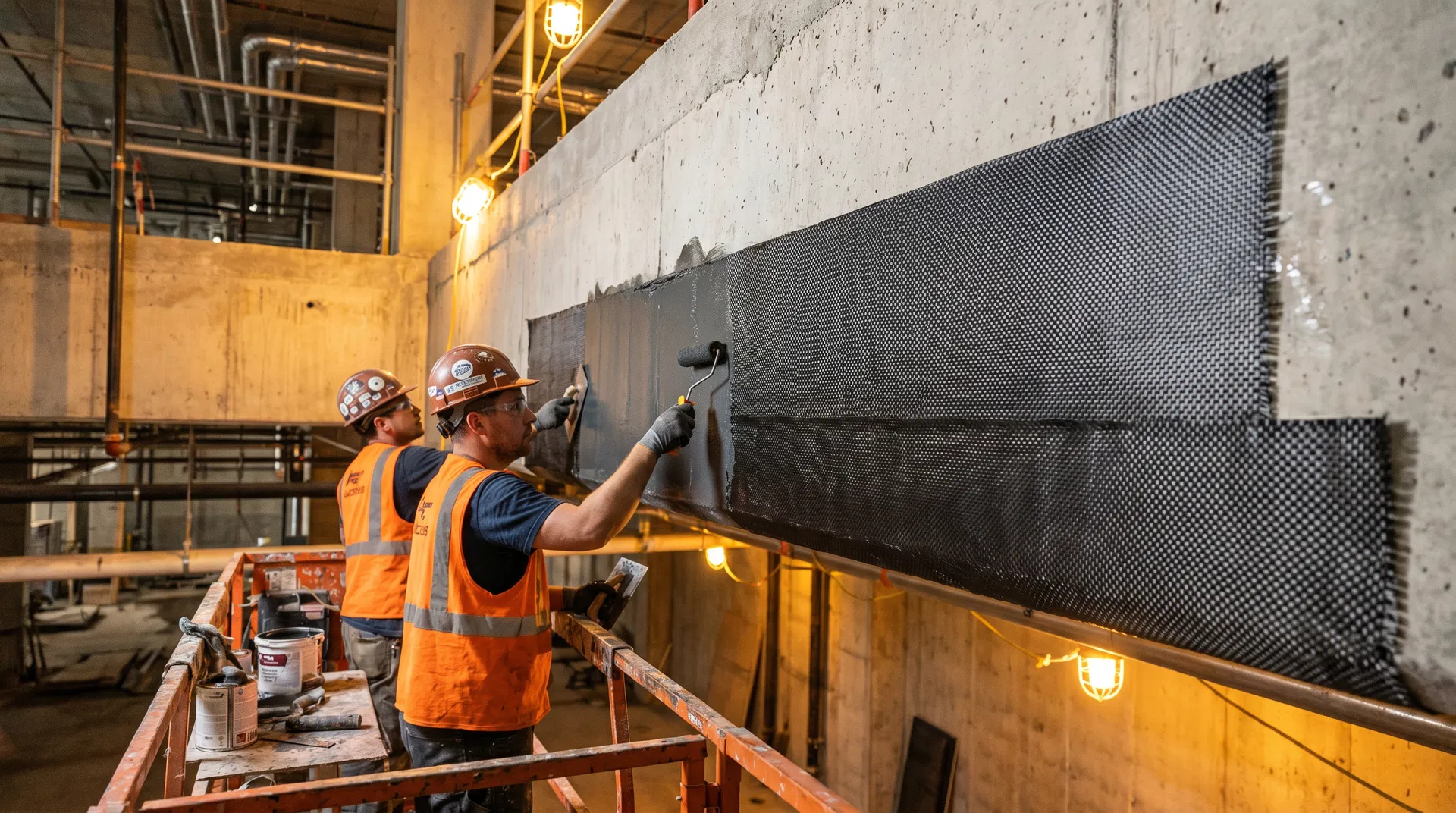

For flexural strengthening, pre-cured CFRP laminates (typically 50mm-120mm wide, 1.2mm-1.4mm thick) are bonded to the beam soffit using thixotropic structural adhesive. For shear strengthening, wet-layup carbon fiber fabric is applied as U-wraps at specified spacing.
Anchorage Installation
Mechanical anchorage systems or transverse CFRP U-wrap anchors are installed at plate termination points and at critical shear locations to prevent debonding failures. CFRP spike anchors may be used for enhanced anchorage in high-stress zones.
Quality Assurance & Load Testing
Pull-off testing per ASTM D7522 verifies bond strength exceeds 200 psi. For critical structures, a proof load test may be conducted to verify the strengthened beam performs as designed under actual loading conditions.
Understanding CFRP Beam Failure Modes
Proper CFRP beam design requires understanding and controlling the potential failure modes. ACI 440.2R provides specific design provisions to ensure the strengthened beam fails in a ductile, predictable manner. Our engineers design every system to prevent brittle failure modes through conservative strain limits and proper anchorage detailing.
Concrete Crushing
The concrete in the compression zone reaches its ultimate strain (0.003) before the CFRP ruptures. This is the preferred failure mode as it is ductile and predictable. ACI 440.2R design ensures this mode governs.
CFRP Rupture
The carbon fiber reaches its ultimate tensile strain. While this provides full utilization of the CFRP material, it can be sudden. Design strain limits in ACI 440.2R include environmental reduction factors (CE) to prevent this.
Debonding (IC)
Intermediate crack-induced debonding initiates at a flexural crack and propagates toward the plate end. This is the most common failure mode and is controlled by limiting the CFRP strain to the debonding strain per ACI 440.2R Equation 10.1.
Debonding (PE)
Plate-end debonding occurs at the termination point of the CFRP due to high interfacial shear and normal stresses. Prevented by proper anchorage detailing, extending CFRP past the inflection point, and using transverse U-wrap anchors.
CFRP vs. Traditional Beam Strengthening
| Factor | CFRP Strengthening | Section Enlargement | Steel Plate Bonding |
|---|---|---|---|
| Installation Time | 3-7 days | 4-12 weeks | 1-3 weeks |
| Added Weight | Negligible (<1 lb/ft) | Significant (50+ lb/ft) | Moderate (15-30 lb/ft) |
| Clearance Reduction | <2mm | 4-8 inches | 0.5-1 inch |
| Building Disruption | Minimal — remain occupied | Major — shoring required | Moderate — crane access needed |
| Corrosion Risk | None — carbon fiber immune | Yes — new rebar exposed | High — steel plates corrode |
| Typical Cost | $45-$120/LF | $150-$400/LF | $80-$200/LF |
Industries That Rely on Beam Strengthening
Beam strengthening is critical across virtually every building type. Here are the industries where we most frequently deploy CFRP beam strengthening solutions.
Related Resources
Complete Guide to ACI 440.2R Standards
Understand the design framework governing all CFRP beam strengthening projects.
Read MoreCFRP vs. Steel Plate Bonding
A detailed comparison of CFRP and steel plate bonding for beam strengthening applications.
Read MoreBridge Beam Strengthening Case Study
See how CFRP restored a deteriorated bridge beam to full load-rated capacity.
Read MoreBeam Strengthening FAQ
How much can CFRP increase a beam's load capacity?
CFRP can typically increase a beam's flexural capacity by 25% to 60%, depending on the existing reinforcement ratio, concrete strength, and the amount of CFRP applied. In some cases, capacity increases of up to 100% have been achieved. The actual increase is determined by a detailed engineering analysis per ACI 440.2R.
Can CFRP strengthen a beam for both flexure and shear simultaneously?
Yes. Flexural strengthening uses longitudinal CFRP strips bonded to the beam soffit, while shear strengthening uses U-wraps applied to the sides and bottom. Both systems can be installed on the same beam in a single mobilization, addressing multiple deficiencies at once.
How long does beam strengthening take?
A typical beam strengthening project can be completed in 3 to 7 days, depending on the number of beams, the extent of surface preparation required, and the number of CFRP layers. The building can remain fully occupied and operational during the entire process.
What causes a beam to need strengthening?
Common causes include corrosion of internal reinforcing steel, increased loading from building repurposing, design or construction errors, damage from impact or overloading, code changes requiring higher capacity, and deterioration from freeze-thaw cycles or chemical exposure.
Is CFRP beam strengthening less expensive than beam replacement?
In most cases, yes. CFRP beam strengthening typically costs 40% to 60% less than full beam replacement when you factor in demolition, shoring, new concrete, rebar, formwork, and the extended downtime. The non-disruptive nature of CFRP installation provides additional savings by avoiding tenant relocation and business interruption costs.
Can CFRP be applied to damaged or cracked beams?
Yes, but the existing damage must be repaired first. Cracks are injected with structural epoxy, spalled concrete is patched with repair mortar, and corroded rebar is treated before the CFRP system is applied. The CFRP then strengthens the repaired beam beyond its original capacity.
