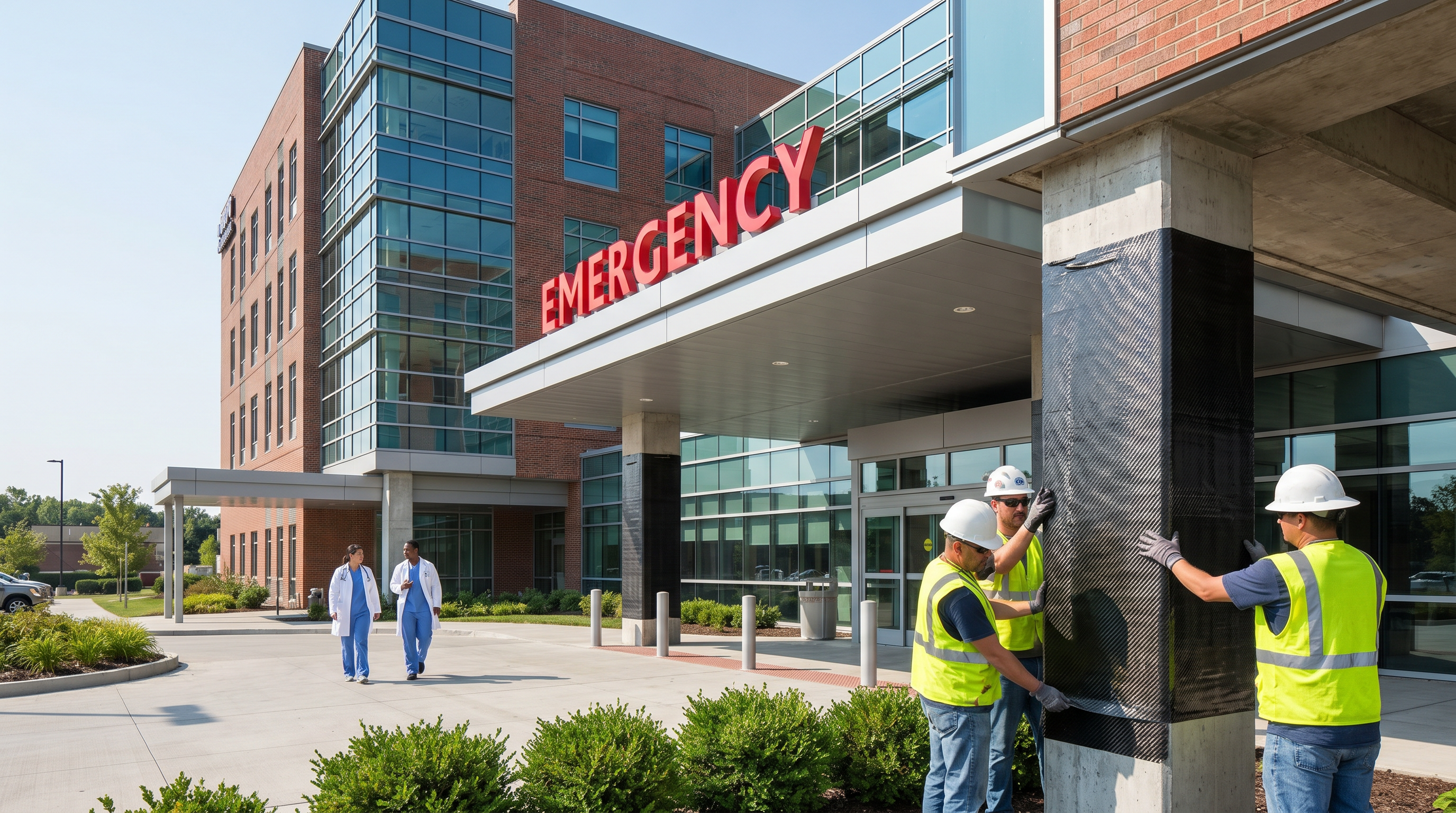

CFRP for Healthcare Facilities: Hospitals and Medical Centers

The Unseen Structural Challenges in Modern Healthcare

Hospitals and medical centers are among the most complex and critical building typologies. They operate 24/7, house some of the most advanced and heaviest technology on the planet, and must remain operational through any event to serve their communities. These demands place immense and often evolving stress on a facility's structural systems. From the constant vibrations of HVAC systems to the concentrated loads of MRI machines and the need for absolute resilience during a seismic event, the structural integrity of a healthcare facility is a matter of public safety and operational continuity. Traditional strengthening methods, such as section enlargement with concrete or steel plate bonding, often fall short in these sensitive environments. They are disruptive, time-consuming, and can introduce contaminants and noise that are unacceptable in an active patient care setting.

Heavy Equipment and Concentrated Loads

Modern medical imaging and diagnostic equipment, such as MRI machines, CT scanners, and linear accelerators, are incredibly heavy. An MRI machine can weigh over 80,000 pounds, exerting a massive concentrated load on the floor slab it rests upon. As technology advances, hospitals frequently upgrade or add new equipment, often in locations not originally designed for such loads. This requires targeted structural upgrades. Furthermore, the sensitivity of this equipment to vibration means that any structural work must be precise and result in a stiff, stable platform. The constant foot traffic, rolling equipment, and operational vibrations add another layer of dynamic load that the structure must safely handle for decades.

The High Cost of Disruption and Downtime

The primary mission of a hospital is patient care, which cannot be paused for construction. Closing a wing, an operating room, or an imaging suite for structural repairs has a direct impact on patient access and generates significant revenue loss. Traditional retrofitting methods are inherently disruptive. They involve noisy demolition, extensive dust and debris, and long cure times for concrete. The logistical challenge of isolating a construction zone while maintaining a sterile, quiet healing environment is immense. Infection control is paramount, and the dust generated by concrete chipping or steel grinding poses a serious risk in a facility filled with vulnerable patients. These factors make conventional strengthening methods a last resort for many hospital administrators, who are forced to weigh structural necessity against operational viability.

The CFRP Advantage for Occupied Healthcare Facilities

This is where Carbon Fiber Reinforced Polymer (CFRP) strengthening emerges as a transformative solution. CFRP offers a method of upgrading structural capacity with minimal disruption, making it uniquely suited for the challenges of occupied healthcare facilities. It is a high-strength, lightweight, and low-profile system that can be applied to concrete and steel structures to increase their load-bearing capacity, flexural strength, and seismic resilience.

Minimally Invasive Installation

Unlike steel plates or concrete jacketing, CFRP systems are incredibly lightweight and thin. The material, often resembling a fabric, is saturated with a high-performance epoxy resin and applied to the surface of the structural member being strengthened. The installation process is quiet, with minimal noise from surface preparation being the primary auditory impact. There is no heavy machinery, no hot work or welding, and significantly less dust and debris. A typical CFRP installation involves:

• Surface Preparation: Grinding the concrete surface to create a clean, open profile for bonding. This is often the most disruptive part, but modern dust extraction systems can capture over 98% of airborne particulates.
• Primer Application: Applying a primer to the prepared concrete to enhance the bond with the epoxy.
• Epoxy Saturation and Application: Applying the epoxy resin to the CFRP fabric and then carefully placing the saturated fabric onto the structural element.
• Curing: The epoxy cures at ambient temperature, typically reaching full strength within a few days, with the area often returnable to light service much sooner.

This entire process can often be completed in a fraction of the time required for traditional methods, and its low-impact nature means adjacent areas can remain fully operational. For a hospital, this means an operating room or patient floor can be upgraded overnight or over a weekend, eliminating the need for extended closures.

Advanced Applications: Beyond Basic Strengthening

While CFRP is widely recognized for its ability to increase the load-bearing capacity of beams and columns, its applications in sophisticated healthcare environments extend far beyond basic strengthening. The unique properties of carbon fiber composites address highly specific challenges related to advanced medical technology and operational resilience.

Vibration Control for Sensitive Medical Equipment

Hospitals are home to equipment that is highly sensitive to vibrations, such as electron microscopes, advanced imaging systems, and robotic surgical suites. Floor vibrations, whether from foot traffic, rolling carts, or HVAC systems, can compromise the accuracy of this equipment, affecting diagnostics and patient outcomes. CFRP offers an ideal solution for stiffening floor slabs to dampen these vibrations. By bonding thin, lightweight CFRP strips or sheets to the underside of a floor slab, its natural frequency can be altered and its stiffness significantly increased. This minimally invasive upgrade can be performed with little to no disruption to adjacent areas, providing a stable platform that meets the stringent vibration criteria (often measured in VC-A to VC-G) required for high-precision medical and research equipment.

Strengthening for MRI and Imaging Suites

The installation of a new MRI machine presents a significant structural challenge. These devices are not only extremely heavy, often weighing over 80,000 pounds, but they also generate powerful magnetic fields. Traditional strengthening with steel is not an option, as its ferromagnetic properties would interfere with the MRI's imaging capabilities, create safety hazards, and potentially produce artifacts in the diagnostic scans. CFRP is the ideal material for this application. Its non-magnetic nature ensures it is "transparent" to the magnetic fields, while its high tensile strength provides the necessary reinforcement to support the immense weight of the equipment. Furthermore, while CFRP itself is not a primary RF shield, it can be integrated into a broader RF shielding strategy, sometimes in combination with materials like copper mesh, to create a structurally sound and electromagnetically clean environment for the imaging suite.

Case Study: Seismic Retrofit of a California Hospital

A compelling real-world example of CFRP's advantages in a hospital setting is the seismic retrofit of a major hospital in California. Faced with a mandate to upgrade its facility to meet stringent seismic standards, the hospital's engineering team initially planned to use traditional steel plate collectors. However, this approach presented significant challenges. The installation would have required extensive work above the ceiling, navigating a dense network of mechanical, electrical, and plumbing (MEP) systems. This would have been highly disruptive, time-consuming, and costly, inevitably leading to the shutdown of critical patient care areas.

To avoid these setbacks, the design team pivoted to an innovative solution using externally bonded CFRP collectors. This decision was based on CFRP's ability to be installed on the top surface of the concrete slab, avoiding the congested overhead spaces. As detailed in a report in STRUCTURE magazine, the project required close collaboration between the engineers, the CFRP manufacturer, and the regulatory body (California's HCAI) to validate the approach, which included project-specific laboratory testing to confirm the performance of multi-layer, anchored CFRP collectors under high loads. The outcome was a resounding success. The CFRP installation was completed in a fraction of the time estimated for the steel alternative, with a clear, phased schedule that minimized disruption. This case study demonstrates how CFRP not only provides the required structural performance but also offers unparalleled logistical benefits that are critical in a 24/7 operational healthcare facility.

Navigating the Regulatory Landscape: ACI Standards and Compliance

The successful implementation of CFRP strengthening hinges on adherence to established engineering principles and industry standards. The primary guiding document in North America is ACI 440.2R-17: "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures," published by the American Concrete Institute. This comprehensive guide provides engineers with a framework for designing and specifying FRP systems, covering everything from material properties and surface preparation to load calculations and long-term durability.

Key considerations outlined in ACI 440.2R-17 include:

• Substrate Condition: The concrete must be sound and properly prepared to ensure a strong bond. This includes grinding to remove laitance and contaminants and achieving a specific Concrete Surface Profile (CSP).
• Debonding Control: The guide provides equations to calculate the effective strain limit of the FRP to prevent it from debonding from the concrete substrate, which is a primary failure mode.
• Anchor Systems: For highly loaded applications, such as the hospital case study mentioned above, the use of FRP anchors can significantly enhance performance by transferring forces into the concrete and preventing premature debonding.
• Fire Protection: While CFRP itself has limited fire resistance, ACI guidelines recommend the application of approved fire-retardant coatings to achieve the required fire rating for the structural element.

Working with a qualified structural engineer and a certified CFRP installer is crucial. Experienced professionals will not only design the system in accordance with ACI standards but will also understand the nuances of working in a sensitive healthcare environment, ensuring that all work complies with infection control and life safety protocols.

A Comparative Analysis: CFRP vs. Traditional Methods

When evaluating options for structural upgrades in a hospital, it is essential to look beyond the initial material costs and consider the total impact on the facility. The table below provides a comparison between CFRP and traditional methods like steel plate bonding and section enlargement (concrete jacketing).

Future-Proofing Healthcare Infrastructure

The demands on healthcare facilities are constantly evolving. Advances in medical technology, changing patient demographics, and the increasing frequency of extreme weather events all necessitate a forward-looking approach to structural design and maintenance. CFRP strengthening is not just a remedial fix; it is a proactive strategy to future-proof these critical assets.

Adapting to Evolving Medical Technologies

As medical technology advances, the equipment used in diagnosis and treatment tends to become heavier and more complex. A hospital built 30 years ago was not designed to support the weight of today's robotic surgery systems or next-generation imaging machines. CFRP allows facility managers to adapt their existing structures to accommodate these new technologies without undertaking massive, disruptive reconstruction projects. A floor that was originally designed for a 50 psf live load can be selectively strengthened to handle a 100 psf load in the specific area where new equipment will be located. This targeted approach is both cost-effective and efficient, allowing hospitals to stay at the forefront of medical innovation.

Enhancing Resilience Against Climate Change

Beyond seismic events, healthcare facilities are increasingly vulnerable to other environmental threats, such as hurricanes, floods, and heavy snow loads. CFRP can be used to enhance the overall resilience of a building envelope. For example, CFRP strips can be used to strengthen masonry walls against high winds or to reinforce floor diaphragms to handle increased snow loads. By proactively strengthening their facilities, hospitals can ensure they remain operational during and after extreme weather events, continuing to serve their communities when they are needed most.

The Financial Case for CFRP: A Lifecycle Cost Perspective

For hospital administrators and financial officers, any major capital expenditure must be justified by a clear return on investment. While traditional structural repair methods may sometimes appear cheaper on a line-item bid, a comprehensive lifecycle cost analysis often reveals a different story. The true cost of a structural intervention in a hospital is not just the materials and labor; it is the sum of the direct costs and the indirect costs associated with operational disruption.

Calculating the True Cost of Downtime

The revenue generated by an operating room or an advanced imaging suite can be substantial, often running into tens of thousands of dollars per day. When these areas are shut down for construction, the financial losses accumulate rapidly. A traditional concrete repair that takes three weeks to complete could result in over half a million dollars in lost revenue, not to mention the intangible costs of delayed patient care and damage to the hospital's reputation. Because CFRP installations are significantly faster—often completed in a matter of days or even overnight—the savings from avoided downtime can be immense. In many cases, these savings alone are enough to offset the higher material cost of the CFRP system, making it the most cost-effective solution overall.

Long-Term Durability and Reduced Maintenance

CFRP systems offer excellent long-term performance. Unlike steel, carbon fiber does not corrode, making it a highly durable solution, especially in environments with moisture or chemical exposure. Once installed and properly coated, a CFRP system is largely maintenance-free. This contrasts with steel plates, which may require periodic inspection and repainting to prevent corrosion, or concrete repairs, which can be susceptible to cracking over time. By choosing a durable, low-maintenance solution like CFRP, hospitals can reduce their long-term operational expenditures and ensure the longevity of their structural investment.

Enhancing Seismic Resilience for Uninterrupted Care

For hospitals in seismically active regions like California, ensuring the facility can withstand and remain operational after an earthquake is a critical life-safety and regulatory requirement. Structures must not only prevent collapse but also limit damage to a degree that allows for the continued care of patients. A structural assessment can identify vulnerabilities in columns, beams, and walls that could fail during seismic shaking.

CFRP for Ductility and Shear Strength

CFRP is an exceptional tool for seismic retrofitting. When wrapped around concrete columns, CFRP provides confinement, dramatically increasing the column's ductility and ability to deform without catastrophic failure. This is crucial for absorbing the energy of an earthquake. Similarly, applying CFRP strips to walls or beams can significantly enhance their shear strength, preventing the brittle failures that are common in older concrete structures during a seismic event. The lightweight nature of CFRP is a major advantage here; it adds significant strength without adding mass to the structure, which would otherwise increase the seismic forces the building must resist. The ability to perform these upgrades quickly and with minimal disruption allows hospitals to achieve seismic compliance without shutting down essential services.

A Case for Proactive Strengthening

The cost of inaction can be immense. The potential loss of life, the cost of rebuilding, and the loss of a critical community resource far outweigh the investment in a proactive seismic retrofit. As explored in our guide to CFRP costs, the expense of a CFRP solution is often highly competitive with traditional methods, especially when the savings from avoided downtime are factored in. For healthcare administrators and facility managers, CFRP represents a powerful, precise, and practical tool to ensure their facilities are safe, resilient, and always ready to serve.
