Parking Garage CFRP Repair & Strengthening
Parking garages are among the most hostile environments for concrete structures. Salt, water, freeze-thaw cycles, and constant traffic create a perfect storm of deterioration. CFRP repair and strengthening restores structural integrity, extends service life by 50+ years, and keeps your garage open during the entire process — saving millions compared to replacement.
Warning Signs Your Parking Garage Needs Repair
Parking garage deterioration is progressive — it accelerates over time as protective barriers break down and corrosion spreads. Early intervention with CFRP strengthening is dramatically less expensive than waiting until major structural repairs or full replacement are required. Watch for these warning signs:
Concrete spalling or delamination on beams, columns, or deck soffits
Visible rebar corrosion (rust staining on concrete surfaces)
Cracking patterns indicating structural distress (not just shrinkage)
Water leakage through deck joints, cracks, or construction joints
Efflorescence (white mineral deposits) indicating water migration
Potholing or surface deterioration on the driving surface
Previous patch repairs that are failing or debonding
Excessive deflection or vibration under vehicle loading
Common Parking Garage Deterioration
Understanding the root causes of deterioration is essential for designing effective repair and strengthening solutions that address both the symptoms and the underlying mechanisms.
Chloride-Induced Rebar Corrosion
Deicing salts tracked in by vehicles penetrate the concrete cover and initiate corrosion of the reinforcing steel. As rebar corrodes, it expands to 6-10x its original volume, causing concrete delamination, spalling, and loss of structural capacity. This is the #1 cause of parking garage deterioration in northern climates and coastal regions.
Freeze-Thaw Damage
Water that infiltrates the concrete expands when it freezes, creating internal microcracking that progressively weakens the concrete matrix. Over hundreds of freeze-thaw cycles, the concrete surface scales and deteriorates, reducing the effective section and exposing rebar to further corrosion.
Carbonation
Atmospheric CO2 reacts with calcium hydroxide in the concrete, lowering the pH from ~13 to below 9. This destroys the passive oxide layer that protects the rebar from corrosion. Carbonation-induced corrosion is more uniform than chloride-induced corrosion and is common in older garages.
Overloading & Impact Damage
Vehicles exceeding the design load rating, construction equipment on upper decks, or vehicle impacts to columns and barriers cause structural damage that reduces the garage's load-carrying capacity.
Post-Tensioning Tendon Corrosion
In post-tensioned garages, corrosion of the prestressing tendons is particularly dangerous because it can lead to sudden, catastrophic failure. Tendon corrosion is often hidden within the concrete and requires specialized investigation techniques to detect.
Waterproofing Membrane Failure
When the traffic-bearing waterproofing membrane fails, water and chlorides penetrate directly into the structural concrete, accelerating all other deterioration mechanisms. Membrane replacement is often the first step in a comprehensive garage rehabilitation.
CFRP Applications in Parking Garages
CFRP strengthening addresses every structural element in a parking garage, from deck slabs to columns to perimeter barriers.
Beam Flexural Strengthening
CFRP laminates bonded to the soffit of parking garage beams restore and increase flexural capacity lost to rebar corrosion. This is the most common CFRP application in parking garages, addressing the beams that span between columns and support the deck above.
Learn MoreBeam Shear Strengthening
CFRP U-wraps applied to beam sides and soffit increase shear capacity. Parking garage beams often have inadequate shear reinforcement (stirrups) due to original design practices or corrosion-induced section loss of existing stirrups.

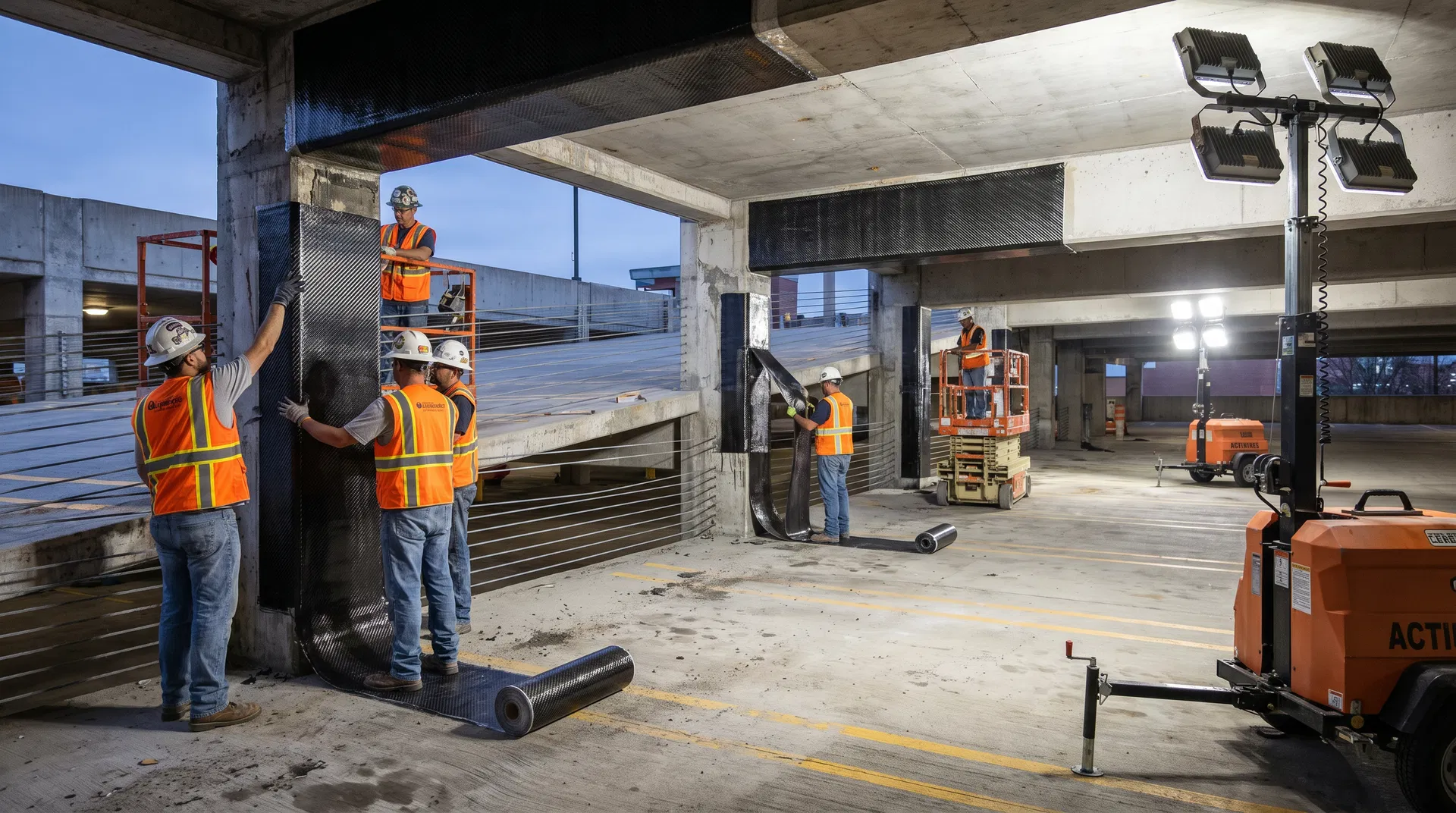

Column Confinement
CFRP wrapping of parking garage columns increases axial capacity and provides corrosion protection. Columns at drive aisles are particularly vulnerable to salt spray and vehicle impact damage.
Learn MoreSlab/Deck Strengthening
CFRP strips applied to the underside of parking decks increase the flexural capacity of the slab between beams. This addresses corrosion-related capacity loss and allows for increased vehicle weights.
Learn MorePunching Shear Reinforcement
Flat-slab parking garages are vulnerable to punching shear failure at column connections. CFRP systems with through-slab anchors increase the punching shear capacity at these critical locations.
Wall & Barrier Strengthening
Perimeter walls and vehicle barriers in parking garages must resist vehicle impact loads per IBC Section 1607.8. CFRP strengthening can increase the impact resistance of existing barriers to meet current code requirements.
Learn MoreOur Parking Garage Repair Process
A comprehensive approach that addresses existing damage, restores structural capacity, and protects against future deterioration.
Condition Assessment & Testing
Licensed engineers conduct a comprehensive condition survey including visual inspection, delamination sounding, half-cell potential mapping, chloride profiling, concrete core testing, and rebar evaluation. This establishes the extent of deterioration and identifies all structural deficiencies.
Structural Analysis & Load Rating
A detailed structural analysis determines the existing capacity of each member and compares it against current code requirements (ACI 318, IBC). For garages with significant deterioration, the analysis may reveal that the structure is operating below its required capacity, triggering immediate strengthening.
Concrete Repair
Before CFRP application, all deteriorated concrete is removed to sound substrate. Corroded rebar is cleaned to bare metal (SSPC-SP3 minimum). Repair mortar is applied to restore the member cross-section. Crack injection with structural epoxy restores monolithic behavior.
CFRP System Design
The CFRP strengthening system is designed per ACI 440.2R to address all identified deficiencies — flexural, shear, axial, and punching shear. The design specifies CFRP type, number of layers, orientation, width, spacing, and anchorage details for each member.
CFRP Installation
Surface preparation to ICRI CSP 2-3, primer application, and CFRP installation proceed systematically through the garage. Work is typically performed during off-peak hours (nights/weekends) with partial garage closures to minimize disruption to building operations.
Protective Systems
After CFRP installation, protective coatings are applied to the CFRP surfaces. New waterproofing membranes, joint sealants, and drainage improvements are installed to prevent future deterioration. A long-term maintenance plan is provided to the owner.
CFRP Repair vs. Garage Replacement
| Factor | CFRP Repair & Strengthening | Full Garage Replacement |
|---|---|---|
| Typical Cost | $15-$45/SF | $80-$150/SF |
| Project Duration | 4-12 weeks | 12-24 months |
| Garage Availability | 70-80% capacity maintained | Fully closed |
| Revenue Loss | Minimal | 12-24 months of lost revenue |
| Environmental Impact | Low — minimal demolition waste | High — full demolition + new construction |
| Extended Service Life | 50+ years with maintenance | 50-75 years |
Related Resources
CFRP Parking Garage Strengthening Guide
Comprehensive guide to CFRP applications in parking garage rehabilitation.
Read MoreParking Garage Column Strengthening
Case study of CFRP column strengthening in a multi-level parking structure.
Read MoreParking Garage CFRP Guide
Detailed technical guide for parking garage owners and facility managers.
Read MoreParking Garage Repair FAQ
How long does a parking garage CFRP repair project take?
A typical parking garage CFRP repair project takes 4 to 12 weeks, depending on the size of the garage and extent of deterioration. The garage can remain partially open during construction, with work typically proceeding one bay or one level at a time. Night and weekend work schedules are available to minimize disruption to daily operations.
Can the parking garage stay open during CFRP repairs?
Yes. This is one of the primary advantages of CFRP over traditional repair methods. Work proceeds in designated zones while the rest of the garage remains operational. Temporary barriers and signage direct traffic around active work areas. Most garages maintain 70-80% of their parking capacity throughout the project.
How much does parking garage CFRP repair cost?
Parking garage CFRP repair costs vary widely based on the extent of deterioration and the scope of strengthening required. Typical projects range from $15 to $45 per square foot of garage area for comprehensive repair and strengthening. This is generally 40-60% less than full structural replacement and avoids the 12-18 month closure that replacement requires.
How does CFRP compare to steel plate repairs for parking garages?
CFRP is superior to steel plates in parking garage environments for several reasons: carbon fiber is immune to the chloride-rich environment that causes steel plates to corrode, CFRP is lighter and doesn't require heavy lifting equipment in low-clearance garages, and CFRP adds minimal thickness, preserving already-tight vehicle clearances.
What is the lifespan of CFRP repairs in a parking garage?
CFRP systems have a design life of 50+ years when properly installed and protected. The carbon fiber itself does not corrode, fatigue, or degrade under normal environmental exposure. The epoxy adhesive is protected by UV-resistant coatings. With proper waterproofing maintenance, CFRP repairs will outlast the original structure.
Does CFRP repair address the root cause of parking garage deterioration?
CFRP strengthening restores and increases structural capacity, but it must be combined with concrete repair (to address existing deterioration) and waterproofing improvements (to prevent future deterioration). Our comprehensive approach addresses all three aspects: repair the damage, strengthen the structure, and protect against future deterioration.
