CFRP Structural Strengthening
Carbon fiber reinforced polymer (CFRP) strengthening is the most advanced method for increasing the load-carrying capacity of existing structures. Our expert crews install high-performance CFRP systems on beams, columns, slabs, and walls following ACI 440.2R guidelines — delivering structural upgrades that outperform traditional methods in strength, speed, and durability.
What Is CFRP Strengthening?
Carbon fiber reinforced polymer (CFRP) strengthening involves bonding high-strength carbon fiber materials to the exterior surface of structural elements using structural epoxy adhesives. The carbon fiber acts as external reinforcement, increasing the element's capacity to resist bending, shear, axial, and confinement forces. This method is analogous to adding external rebar, but with a material that is significantly lighter, stronger, and non-corrosive.
CFRP materials consist of thousands of individual carbon filaments — each approximately 5 to 10 micrometers in diameter — bundled together and embedded in an epoxy resin matrix. The resulting composite material has a tensile strength of over 550 ksi (3,800 MPa), making it approximately 10 times stronger than structural steel per unit weight. This incredible strength-to-weight ratio allows for significant capacity increases with minimal added mass, a critical advantage in seismic retrofits and structures with sensitive load limitations.
The American Concrete Institute's ACI 440.2R-17, "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures," provides the definitive design framework for CFRP strengthening in the United States. This essential document governs every aspect of a project, from initial calculations to final quality control. All CFRP Repair installations follow these guidelines without deviation, ensuring consistent quality and code compliance across all 50 states we serve.
Two primary CFRP system types are used in structural strengthening: wet layup systems, where dry carbon fiber fabric is saturated with epoxy resin on-site and applied to the prepared concrete surface; and pre-cured systems, where factory-manufactured carbon fiber plates or strips are bonded to the surface using structural adhesive. The choice between systems depends on the specific application, geometry, and performance requirements. Wet layup is ideal for complex shapes like columns, while pre-cured plates are excellent for the flexural strengthening of beams and slabs.
Common Applications for CFRP Strengthening
CFRP strengthening is a versatile solution for a wide range of structural deficiencies across nearly every structure type. Here are the most common applications where our systems provide unmatched value.

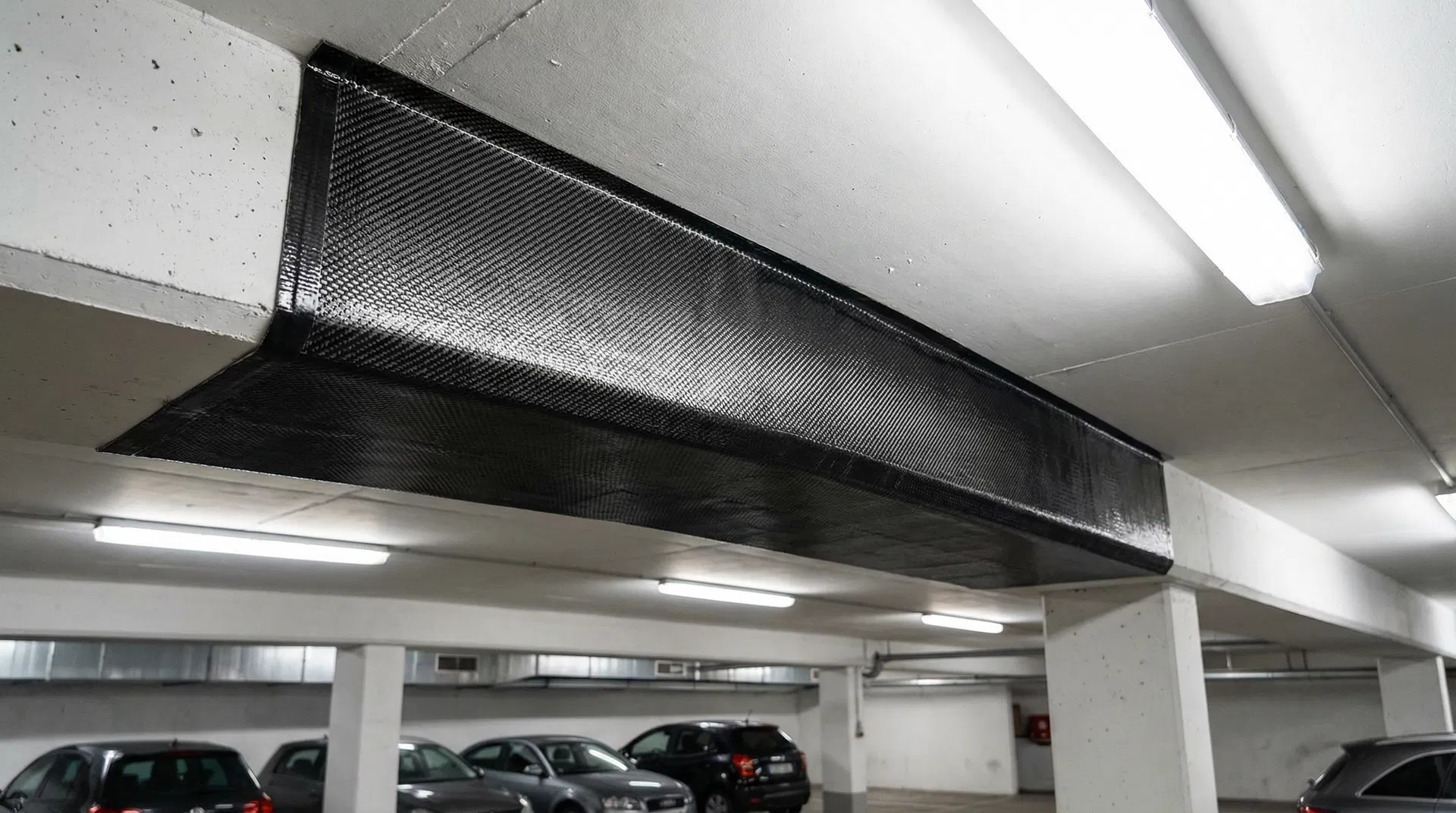

Beam Strengthening
Increase flexural and shear capacity of concrete beams using externally bonded CFRP laminates or fabric wraps. Ideal for beams with insufficient reinforcement, corrosion damage, or increased load requirements.
Column Confinement
CFRP wrapping increases column axial load capacity, ductility, and shear strength. Particularly effective for circular and rectangular columns requiring seismic retrofit or load capacity upgrades.
Slab Reinforcement
Strengthen concrete slabs from below using CFRP strips or fabric to increase load-carrying capacity for building repurposing, equipment installation, or code compliance upgrades.
Shear Strengthening
U-wraps and side-bonded CFRP strips provide additional shear reinforcement for beams and girders where existing shear capacity is insufficient for current or proposed loading conditions.
Wall Strengthening
CFRP systems applied to concrete and masonry walls increase out-of-plane bending resistance, in-plane shear capacity, and blast resistance for critical infrastructure.
Bridge Strengthening
CFRP strengthening for bridge decks, girders, piers, and abutments to restore structural capacity, extend service life, and meet current AASHTO load rating requirements.
The Unmistakable Benefits of CFRP Strengthening
10x Strength-to-Weight Ratio
Carbon fiber is approximately 10 times stronger than steel per unit weight, providing exceptional reinforcement without adding significant mass.
Rapid Installation
Most CFRP installations complete in days rather than weeks or months, minimizing operational disruption and revenue loss.
Minimal Profile Change
CFRP adds less than 2mm to the structural surface, preserving ceiling heights, floor space, and architectural aesthetics.
Corrosion Resistant
Unlike steel reinforcement, carbon fiber does not corrode. CFRP systems maintain their strength indefinitely in harsh environments.
Non-Disruptive
Buildings can remain occupied and operational during CFRP installation. No heavy equipment, no structural demolition, no tenant relocation.
Versatile Application
CFRP systems can be applied to concrete, masonry, steel, and timber structures in virtually any configuration and orientation.
Our ACI-Compliant Installation Process
Every CFRP Repair project follows a rigorous, documented six-step process to ensure quality, safety, and long-term performance that meets or exceeds all industry standards.
Structural Assessment & Engineering Design
Our process begins with a comprehensive evaluation by licensed professional engineers. They analyze the existing structure, perform load calculations, and identify the precise strengthening requirements. Using specialized software and adhering strictly to ACI 440.2R design guidelines, they create a detailed engineering plan specifying the exact location, orientation, and number of CFRP layers required.
Concrete Surface Preparation (ICRI CSP 2-3)
This is the most critical phase. The concrete substrate is mechanically abraded using diamond grinders or abrasive blasting to achieve a Concrete Surface Profile (CSP) of 2 to 3, as defined by the International Concrete Repair Institute (ICRI). This removes laitance and contaminants, exposing the aggregate and creating the ideal surface for bonding. All cracks larger than 0.01 inches are repaired via epoxy injection.
Primer Application
A two-component, low-viscosity epoxy primer is applied to the prepared concrete. This primer penetrates the concrete pores, sealing the substrate and creating a high-strength, uniform surface. The primer is allowed to become tack-free, typically within 2-8 hours, before proceeding to the next step.
CFRP Installation (Wet Layup or Pre-Cured)
For wet layup systems, a saturation resin is applied to the primed surface before the carbon fiber fabric is carefully placed and impregnated. For pre-cured laminates, a high-modulus epoxy adhesive is applied and the CFRP plates are firmly pressed into it.
Quality Assurance & Testing (ASTM D7522)
We perform rigorous quality control, including visual inspection for fiber alignment and delamination, and destructive pull-off testing per ASTM D7522 to verify the bond strength between the CFRP and the concrete. A minimum tensile bond strength of 200 psi is required.
Protective Topcoat Application
Once the CFRP system has cured, a compatible protective coating is applied. This is typically a UV-stable, fire-rated, and impact-resistant coating that shields the carbon fiber from environmental damage and ensures its long-term durability.
Governing Standards and Compliance
CFRP strengthening is governed by a set of rigorous industry standards to ensure safety, reliability, and performance. Our installations strictly adhere to these critical guidelines, and all projects are overseen by licensed engineers to guarantee compliance.
- ACI 440.2R-17: This is the primary design and construction guide for externally bonded FRP systems in the United States. It provides a comprehensive framework for calculating required FRP reinforcement, detailing surface preparation, and ensuring proper installation and quality control.
- AASHTO LRFD Bridge Design Specifications: For bridge strengthening projects, we follow AASHTO guidelines, which provide specific criteria for the design and evaluation of highway bridges, including the use of advanced materials like CFRP.
- International Code Council (ICC) AC125: This acceptance criteria outlines the testing and evaluation requirements for concrete and reinforced and unreinforced masonry strengthening using FRP composite systems.
Structure Types We Strengthen
Our CFRP solutions can be applied to a wide variety of structures, from commercial buildings to critical infrastructure. If it's made of concrete, steel, or masonry, we can likely make it stronger.
Commercial Buildings
Parking Garages
Industrial Facilities
Bridges & Overpasses
Waterfront Structures
Historical Buildings
Cost, Timelines, and ROI
While every project is unique, CFRP strengthening is often more cost-effective than traditional methods when considering the total project cost, including downtime and disruption. The return on investment is realized not just in direct costs, but in minimized operational impact.
Cost: CFRP installation typically ranges from $45 to $150 per square foot, depending on the complexity of the project, the number of CFRP layers required, and the site conditions. While the material cost can be higher than steel, the labor and equipment savings are substantial.
Timeline: A typical CFRP strengthening project can be completed in 3 to 10 days. The non-disruptive nature of the installation allows buildings to remain fully operational, saving significant costs associated with tenant relocation and business interruption. For a business owner, this is the most critical advantage.
Before & After: A Real-World Scenario
BEFORE CFRP
A 1970s-era parking garage shows signs of distress. The concrete beams have flexural cracks, and the load capacity is insufficient for modern vehicles. The owner is facing the prospect of a costly and disruptive section replacement, which would close large portions of the garage for months, leading to lost revenue and tenant frustration.
AFTER CFRP
Our team installs a CFRP strengthening system on the affected beams. The installation is completed in just one week, with minimal disruption. The CFRP reinforcement increases the beams' flexural capacity by 40%, exceeding the original design strength and extending the service life of the structure by decades. The garage remains open, and the owner avoids a multi-million dollar capital expenditure.
CFRP vs. Traditional Strengthening Methods
| Feature | CFRP Strengthening | Section Enlargement | External Post-Tensioning |
|---|---|---|---|
| Added Weight | Negligible | Significant | Moderate |
| Installation Speed | Fast (days) | Slow (weeks/months) | Moderate |
| Disruption | Minimal | High | Moderate |
| Clearance Reduction | Minimal (<1 inch) | Significant | Moderate |
| Corrosion Resistance | Excellent | Poor (if steel is added) | Fair (requires maintenance) |
| Aesthetic Impact | Low | High | Moderate |
Frequently Asked Questions
What is the expected service life of a CFRP strengthening system?
When properly designed and installed, a CFRP system will last indefinitely. The materials are immune to corrosion and have excellent fatigue resistance. The limiting factor is typically the service life of the structure itself.
Can CFRP be used on structures other than concrete?
Yes. While most commonly used on concrete, CFRP can also be used to strengthen steel, timber, and masonry structures. The design and installation process is adapted for each substrate.
Is CFRP strengthening disruptive to building occupants?
No. CFRP installation is a very low-impact process. There is minimal noise, dust, and vibration. In most cases, the building can remain fully occupied and operational during the entire project.
How does CFRP compare to traditional strengthening methods?
CFRP offers significant advantages in terms of strength-to-weight ratio, speed of installation, and minimal aesthetic impact. See the comparison table on this page for more details.
Can CFRP be painted or coated?
Yes. A protective topcoat is a standard part of the installation process. This coating can be color-matched to the surrounding structure to create a seamless finish.
