Carbon fiber reinforced polymer (CFRP) strengthening is at the forefront of structural engineering, offering a modern and highly effective solution for enhancing the capacity and lifespan of existing structures. This advanced composite material, known for its remarkable strength-to-weight ratio and durability, has become the preferred method for structural upgrades in a wide range of applications, from buildings and bridges to tunnels and pipes. This comprehensive guide provides an in-depth exploration of CFRP, covering everything from the fundamental materials science to the practical aspects of installation, design, and cost.
The Science Behind Carbon Fiber Reinforced Polymer
CFRP is a composite material, meaning it is composed of at least two constituent materials with significantly different physical or chemical properties which remain separate and distinct at the macroscopic or microscopic level within the finished structure. In the case of CFRP, these two materials are carbon fibers and a polymer resin matrix.
Carbon Fiber: The Reinforcement
The primary load-bearing component of CFRP is the carbon fiber. These fibers are incredibly thin, with a diameter of about 5 to 10 micrometers, which is roughly one-tenth the thickness of a human hair. Thousands of these individual filaments are bundled together to form a tow, which is then woven into a fabric or used to create other forms of reinforcement. The properties of carbon fibers are what give CFRP its exceptional performance characteristics:
- High Tensile Strength: Carbon fibers exhibit a tensile strength that can exceed 700,000 psi (700 ksi or 4,800 MPa), which is approximately 10 times stronger than structural steel by weight.
- High Stiffness (Modulus of Elasticity): The stiffness of carbon fibers is also a key attribute. Standard-modulus carbon fibers have a modulus of elasticity of around 33 million psi (33 msi or 228 GPa), which is comparable to that of steel. High-modulus and ultra-high-modulus fibers can reach stiffness levels of 55 msi (380 GPa) and 85 msi (586 GPa) respectively, significantly exceeding that of steel.
- Low Weight: With a density of approximately 1.6 g/cm³, carbon fiber is about 20% the weight of steel and 60% the weight of aluminum, making it an incredibly lightweight material.
- Durability: Carbon fibers are chemically inert and highly resistant to corrosion and fatigue, which contributes to the long-term performance of CFRP systems.
Epoxy Matrix Systems: The Binder
The polymer matrix is the component that surrounds the carbon fibers, binding them together and forming the composite material. The most common type of matrix used in structural strengthening applications is a two-part epoxy resin system, consisting of a resin and a hardener. The matrix serves several critical functions:
- Load Transfer: The matrix transfers stresses between the individual carbon fibers, ensuring that the load is distributed throughout the reinforcement.
- Fiber Protection: It protects the fibers from environmental factors such as moisture, chemicals, and abrasion.
- Shape and Stability: The matrix gives the composite its shape and maintains the alignment of the fibers.
The properties of the epoxy matrix, such as its glass transition temperature (Tg), adhesion strength, and durability, are crucial to the overall performance of the CFRP system.
Fiber Orientations: Tailoring Properties
The directional nature of carbon fibers allows for the properties of a CFRP laminate to be tailored to the specific needs of an application. The orientation of the fibers determines the direction of maximum strength and stiffness:
- Unidirectional: In a unidirectional fabric, all the fibers are aligned in a single direction. This provides maximum strength and stiffness in that direction and is ideal for applications where the load path is well-defined, such as flexural strengthening of beams.
- Bidirectional: Bidirectional fabrics have fibers woven in two perpendicular directions (typically 0° and 90°). This provides strength and stiffness in both directions and is commonly used for applications such as shear strengthening and confinement.
- Multi-axial: Multi-axial fabrics have fibers oriented in multiple directions (e.g., 0°, 90°, +45°, -45°). These are used in more complex applications where loads are applied from various directions.
Mechanical Properties of CFRP vs. Traditional Materials
The combination of high-performance carbon fibers and a durable epoxy matrix results in a composite material with an exceptional profile of mechanical properties. Here’s how CFRP compares to traditional construction materials:
| Property | CFRP (Standard Modulus) | Structural Steel (A36) | Reinforced Concrete (4000 psi) | Timber (Douglas Fir) |
|---|---|---|---|---|
| Tensile Strength | >550 ksi (>3,800 MPa) | 58-80 ksi (400-550 MPa) | 0.4 ksi (2.8 MPa) | 1.35 ksi (9.3 MPa) |
| Modulus of Elasticity | >33 msi (>228 GPa) | 29,000 ksi (200 GPa) | 3,600 ksi (25 GPa) | 1,600 ksi (11 GPa) |
| Ultimate Strain | 1.5% - 2.0% | 20% - 25% | 0.3% - 0.4% | 1.0% - 1.5% |
| Density | ~100 lb/ft³ (1.6 g/cm³) | 490 lb/ft³ (7.85 g/cm³) | 150 lb/ft³ (2.4 g/cm³) | 33 lb/ft³ (0.53 g/cm³) |
As the table illustrates, CFRP offers a significant advantage in tensile strength and stiffness when compared to traditional construction materials, especially when considering its low density.
Application Methods for CFRP Strengthening
There are several methods for applying CFRP to a structure, each with its own advantages and best-use cases.
Wet Layup Systems

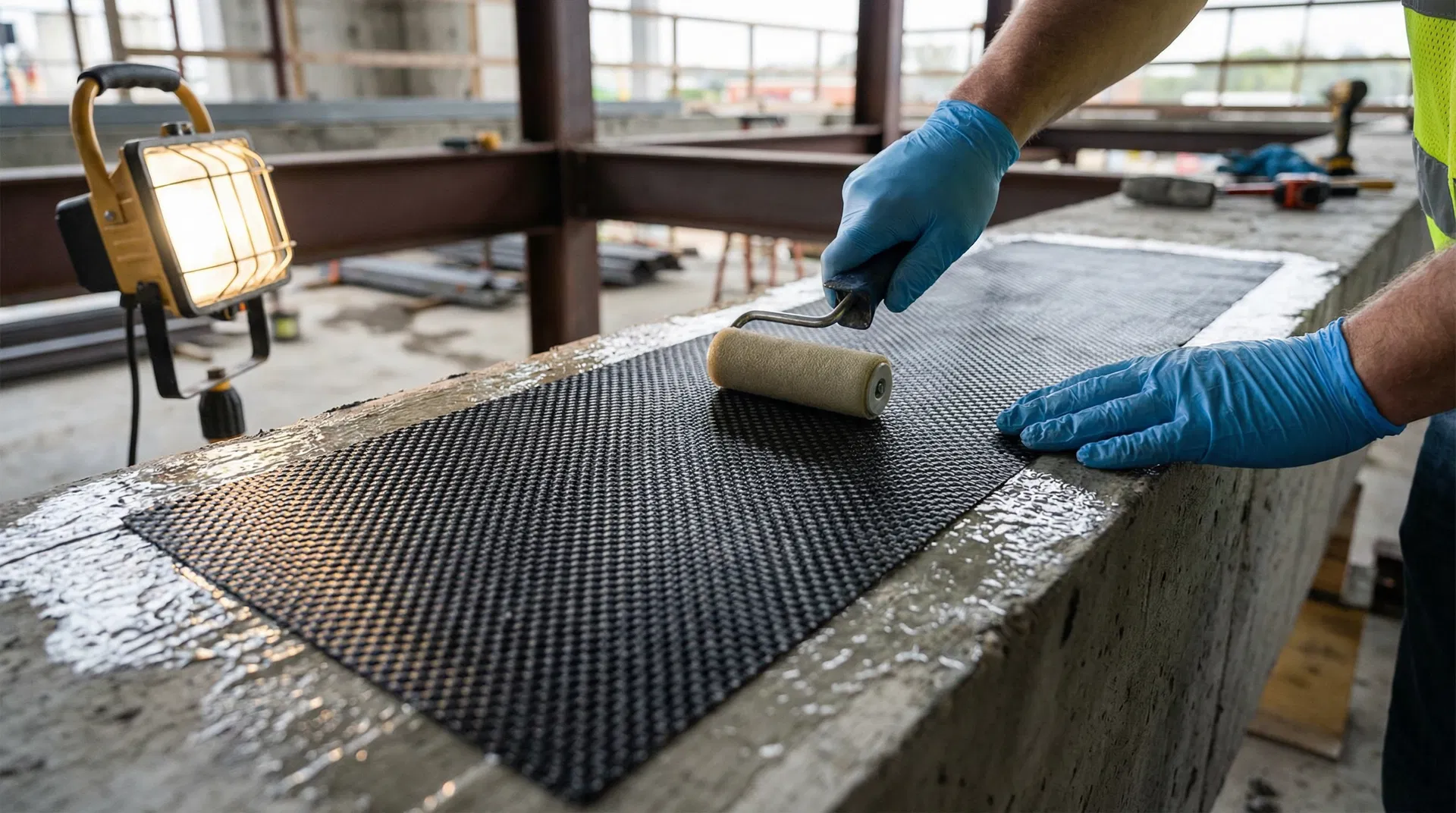

The most common method for CFRP installation is the wet layup system. This technique involves saturating a dry carbon fiber fabric with a two-part epoxy resin on-site and then applying the saturated fabric to the prepared surface of the structural member. The versatility of the wet layup method allows it to be used on a wide variety of structural elements and geometries, including curved surfaces and corners.
Pre-cured Laminates
Pre-cured laminates are rigid strips or plates of CFRP that are manufactured in a factory under controlled conditions. These laminates are then bonded to the surface of the structure using a high-strength epoxy adhesive. Pre-cured systems offer a higher degree of quality control and can provide a higher fiber volume fraction, but they are generally limited to flat or near-flat surfaces.
Near-Surface Mounted (NSM) Bars
The NSM technique involves cutting a small groove into the surface of the concrete, filling it with an epoxy paste, and then embedding a carbon fiber bar or strip into the groove. This method offers enhanced bond performance and improved aesthetics, as the reinforcement is less conspicuous than externally bonded systems.
Prestressed CFRP
For applications requiring a higher level of strengthening or crack control, prestressed CFRP systems can be used. In this method, the CFRP laminate is tensioned before being anchored to the structure. This pre-tensioning force is then transferred to the structural member, which can help to close existing cracks and increase the load-carrying capacity.
Common Structure Types for CFRP Strengthening
The versatility of CFRP allows it to be used for strengthening a wide range of structural elements and types:
- Beams and Slabs: Flexural strengthening to increase load-carrying capacity.
- Columns: Confinement (wrapping) to increase compressive strength and ductility, especially for seismic retrofitting.
- Walls: Shear strengthening and in-plane flexural strengthening.
- Bridges: Strengthening of girders, decks, and columns to handle increased traffic loads.
- Tunnels and Culverts: Repair and strengthening of linings.
- Pipes: Strengthening of pressure pipes and gravity-flow pipelines.
Design Standards: An Overview of ACI 440.2R-17
The primary design guide for externally bonded FRP systems in the United States is ACI 440.2R-17, "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures," published by the American Concrete Institute. This document provides a comprehensive framework for the design of CFRP strengthening systems, including guidance on material properties, strength reduction factors, and environmental considerations.
Strength Reduction Factors
ACI 440.2R-17 specifies the use of strength reduction factors (φ) to account for uncertainties in material properties, workmanship, and structural analysis. These factors are applied to the nominal strength of the strengthened member to determine its design strength. For example, the strength reduction factor for flexure is typically 0.90.
Environmental Exposure Factors (CE)
To account for the potential degradation of FRP systems over time due to environmental exposure, ACI 440.2R-17 introduces an environmental reduction factor (CE). This factor is applied to the ultimate tensile strength and rupture strain of the FRP material. The value of CE depends on the type of fiber and the exposure condition, as shown in the table below.
| Exposure Condition | Fiber and Resin Type | Environmental-Reduction Factor (CE) |
|---|---|---|
| Interior exposure | Carbon/epoxy | 0.95 |
| Exterior exposure (bridges, piers, unenclosed parking garages) | Carbon/epoxy | 0.85 |
| Aggressive environment (chemical plants, wastewater treatment plants) | Carbon/epoxy | 0.85 |
The 8-Step CFRP Installation Process
A successful CFRP installation requires a meticulous and well-executed process. The following 8 steps outline the typical procedure for a wet layup system:
- Surface Preparation: The concrete surface is prepared to a specific profile (typically a Concrete Surface Profile (CSP) of 3) using methods such as grinding or abrasive blasting. This removes any laitance or contaminants and provides a clean, sound substrate for bonding.
- Primer Application: A low-viscosity epoxy primer is applied to the prepared surface to penetrate the concrete and improve the bond of the subsequent layers.
- Putty Application: A thixotropic epoxy putty is used to fill any small voids or irregularities in the surface, creating a smooth and uniform substrate.
- Resin Mixing: The two-part epoxy resin is carefully mixed according to the manufacturer's instructions.
- Fabric Saturation: The dry carbon fiber fabric is saturated with the mixed epoxy resin using a mechanical saturator or by hand.
- Fabric Application: The saturated fabric is applied to the prepared surface, ensuring proper orientation and alignment.
- Consolidation: Rollers are used to consolidate the laminate, removing any entrapped air and ensuring full contact with the substrate.
- Curing and Finishing: The epoxy resin is allowed to cure, and a protective topcoat may be applied to provide UV protection and a finished appearance.
Advantages and Limitations of CFRP
Advantages
- High Strength-to-Weight Ratio: Adds significant strength with minimal added weight.
- Versatility: Can be applied to a wide range of structures and geometries.
- Low Disruption: Installation is relatively quiet and does not require heavy machinery.
- Durability: Resistant to corrosion and chemicals.
- Speed of Installation: Can be installed much faster than traditional methods.
Limitations
- Cost: The initial material cost of CFRP can be higher than traditional materials.
- Fire Performance: The epoxy resins used in CFRP systems have a low fire resistance and require protection in fire-rated structures.
- Impact Resistance: CFRP can be susceptible to damage from direct impact.
- Substrate Condition: The effectiveness of the bond is dependent on the quality of the concrete substrate.
Cost Overview
The cost of CFRP strengthening can vary significantly depending on the project’s size, complexity, and location. However, a general range for the installed cost of CFRP is typically between $40 and $150 per square foot. While the upfront material cost may be higher than some traditional methods, the savings in labor, time, and reduced disruption often make CFRP a more cost-effective solution over the life of the project. For a more detailed breakdown, see our CFRP Cost Guide.
