CFRP Wall Strengthening
Walls do more than divide spaces — they resist earthquakes, hold back earth, carry gravity loads, and protect against wind. When walls need more capacity, CFRP strengthening delivers dramatic performance improvements without the disruption of adding new walls, excavating foundations, or installing steel bracing. From seismic upgrades to foundation wall repair, CFRP is the modern solution.
What Is CFRP Wall Strengthening?
CFRP wall strengthening involves bonding carbon fiber reinforced polymer strips or fabric to the surface of concrete or masonry walls to increase their structural capacity. The carbon fiber acts as external reinforcement, supplementing the internal steel rebar (in concrete walls) or providing reinforcement where none exists (in unreinforced masonry walls).
For concrete walls, the design follows ACI 440.2R-17. For masonry walls, ACI 440.7R-10, "Guide for the Design and Construction of Externally Bonded Fiber Reinforced Polymer Systems for Strengthening Unreinforced Masonry Structures," provides specific design provisions that account for the unique properties of masonry construction, including the mortar joint behavior and the interaction between the CFRP and the masonry substrate.
The orientation of the CFRP fibers determines which capacity is increased. Horizontal fibers increase in-plane shear capacity (critical for shear walls resisting lateral forces). Vertical fibers increase out-of-plane bending capacity (critical for retaining walls, foundation walls, and walls subjected to wind pressure). Many applications require CFRP in both directions.
Wall Types We Strengthen
Every wall type has unique structural behavior and strengthening requirements. Our engineers design CFRP solutions tailored to each wall's specific load path and failure mode.
Shear Walls
Shear walls resist lateral forces from wind and earthquakes. CFRP strengthening increases both the in-plane shear capacity and flexural capacity of existing shear walls, allowing them to resist higher lateral loads without the massive disruption of adding new walls or steel bracing. The CFRP is applied in both horizontal (for shear) and vertical (for flexure) orientations.
Retaining Walls
Retaining walls that have developed structural cracks, excessive deflection, or reduced capacity due to increased soil pressures can be strengthened with CFRP applied to the tension face. The design accounts for the lateral earth pressure distribution, surcharge loads, and water pressure behind the wall.
Load-Bearing Walls
Masonry and concrete load-bearing walls that carry gravity loads from floors and roof above can be strengthened with CFRP to increase their axial and out-of-plane bending capacity. This is common when building repurposing adds loads or when walls have deteriorated from moisture intrusion.
Foundation Walls
Basement and foundation walls subjected to lateral soil pressure, hydrostatic pressure, or frost heave can be strengthened with horizontal CFRP strips on the interior face. This is a common residential and light commercial application that avoids the cost and disruption of exterior excavation.
Masonry Walls (CMU & Brick)
Unreinforced masonry walls (URM) are among the most seismically vulnerable structural elements. CFRP strengthening dramatically improves their out-of-plane and in-plane resistance, bringing them into compliance with modern seismic codes. Both concrete masonry unit (CMU) and clay brick walls can be strengthened.
Tilt-Up Concrete Walls
Tilt-up concrete walls in warehouses and industrial buildings can be strengthened for increased wind loads, seismic forces, or new mezzanine connections. CFRP is applied to the interior face, preserving the exterior appearance and weatherproofing.
Wall Strengthening Applications
Seismic Upgrade
Bringing existing walls into compliance with current seismic codes (ASCE 7, IBC). This is the most common application for CFRP wall strengthening, particularly for unreinforced masonry buildings in seismic zones.
Wind Load Resistance
Increasing wall capacity to resist higher wind loads from updated codes or building modifications that increase wind exposure (e.g., removing adjacent buildings, adding stories).
Opening Reinforcement
New openings cut through existing walls for doors, windows, HVAC, or structural modifications require strengthening of the remaining wall around the opening to compensate for the interrupted load path.
Blast Resistance
CFRP wall strengthening can significantly improve a wall's resistance to blast loading by increasing its flexural capacity and ductility. This is increasingly important for government buildings, embassies, and critical infrastructure.
Foundation Wall Repair
Bowing or cracking foundation walls from lateral soil pressure are stabilized and strengthened with CFRP strips, avoiding the need for exterior excavation, steel bracing, or wall replacement.
Historic Preservation
CFRP strengthening can be applied to the interior face of historic masonry walls, preserving the exterior architectural character while bringing the structure into compliance with modern structural codes.
Our Wall Strengthening Process
A systematic approach from assessment through finishing ensures maximum strengthening effectiveness.
Wall Assessment & Analysis
Engineers evaluate the existing wall condition, including material properties (concrete/masonry strength, mortar condition), reinforcement details, and current loading. Structural analysis determines the existing capacity and the required strengthening demand for the applicable load combinations.
CFRP Design
The CFRP system is designed per ACI 440.2R (for concrete walls) or ACI 440.7R (for masonry walls), specifying fiber orientation, number of layers, strip width, spacing, and anchorage details. For shear walls, the design addresses both in-plane shear and out-of-plane bending.
Surface Preparation
The wall surface is prepared to the required profile (ICRI CSP 2-3 for concrete, smooth and clean for masonry). Cracks are injected with structural epoxy. For masonry walls, the mortar joints are filled flush and the surface is leveled with putty to ensure full CFRP contact.

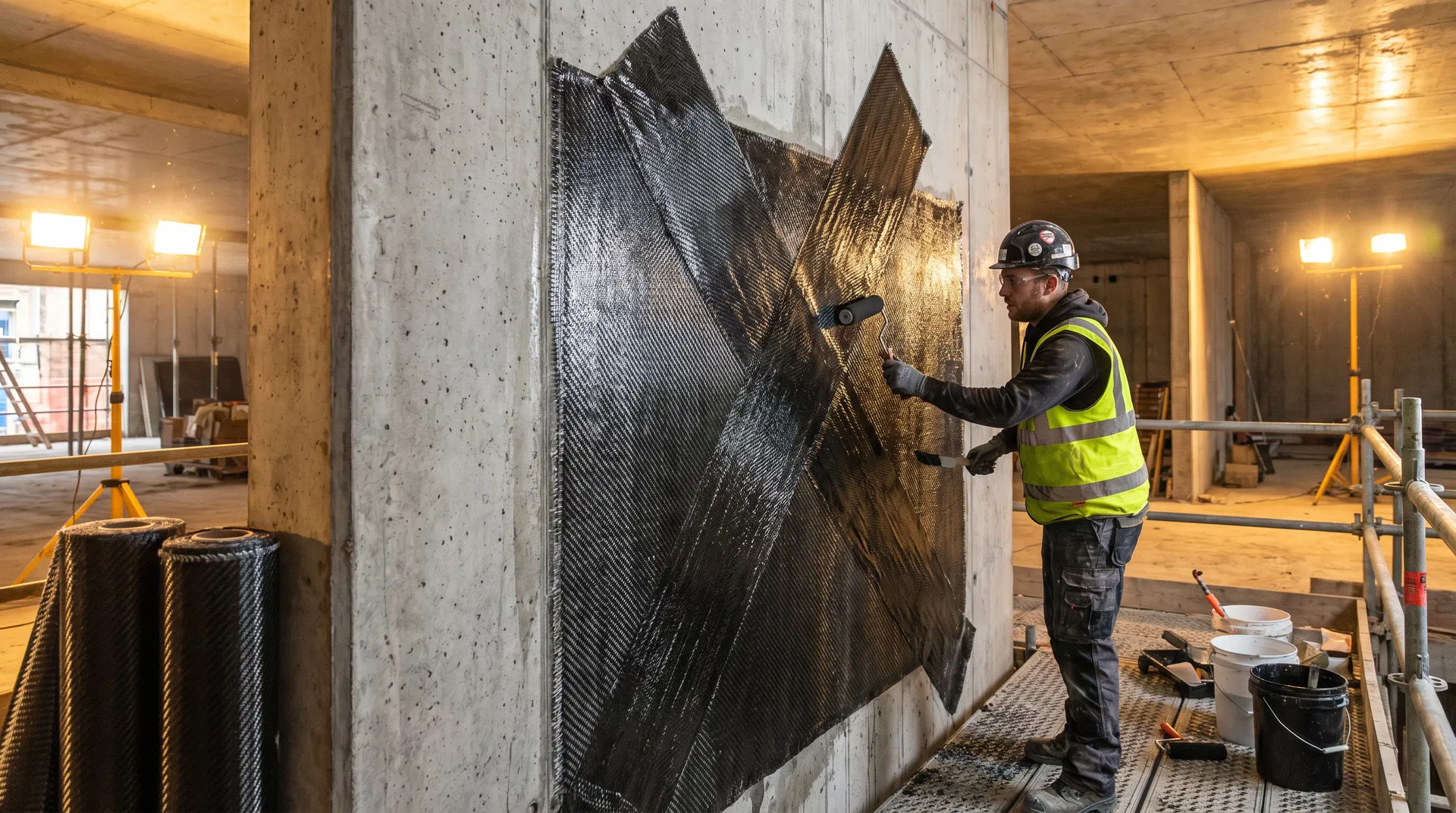

CFRP Installation
CFRP strips or fabric are applied to the wall surface using structural epoxy. For shear strengthening, fibers are oriented horizontally. For flexural strengthening, fibers are oriented vertically. Multiple layers may be applied as required by the design.
Anchorage & Connections
CFRP anchors are installed at wall-to-floor and wall-to-roof connections to ensure load transfer. For shear walls, the CFRP must be anchored into the foundation and the diaphragm above to develop the full shear capacity.
Finishing & Protection
The CFRP surface is coated with a protective finish that can be painted or covered with architectural finishes. For fire-rated assemblies, intumescent coatings or gypsum board overlays provide the required fire protection.
CFRP vs. Traditional Wall Strengthening
| Factor | CFRP Strengthening | New Shear Walls | Steel Bracing |
|---|---|---|---|
| Installation Time | 1-2 weeks | 4-12 weeks | 3-8 weeks |
| New Foundations | None required | Required | Required |
| Space Impact | Negligible (<3mm) | 8-12 inches wall thickness | Braces intrude into space |
| Building Disruption | Minimal | Major | Moderate |
| Typical Cost | $25-$80/SF | $100-$300/SF | $80-$200/SF |
Related Resources
Seismic Retrofit Services
Comprehensive seismic retrofit including wall strengthening, column wrapping, and joint reinforcement.
Read MoreHistoric Preservation with CFRP
How CFRP strengthens historic masonry buildings while preserving their architectural character.
Read MorePost-Disaster CFRP Repair
Emergency wall repair and strengthening after earthquakes, storms, and other natural disasters.
Read MoreWall Strengthening FAQ
Can CFRP strengthen unreinforced masonry walls for earthquakes?
Yes. CFRP is one of the most effective methods for seismically strengthening unreinforced masonry (URM) walls. The carbon fiber dramatically increases both the in-plane shear capacity and the out-of-plane bending resistance of the wall. This is governed by ACI 440.7R, which provides specific design provisions for masonry walls.
Can CFRP be applied to both sides of a wall?
Yes, but it's usually only necessary on one side. For most applications, CFRP is applied to the tension face only (interior for retaining/foundation walls, one side for shear walls). Applying CFRP to both sides is sometimes done for maximum capacity increase or when the wall is loaded in both directions.
Does CFRP wall strengthening affect the wall's appearance?
CFRP adds approximately 1-3mm per layer to the wall surface. After the protective coating is applied, the wall can be painted, covered with drywall, or finished with any standard architectural treatment. When applied to the interior face of exterior walls, the exterior appearance is completely unchanged.
How does CFRP compare to adding new shear walls?
Adding new shear walls is extremely disruptive — it requires new foundations, floor/roof connections, and often impacts the building's functional layout. CFRP strengthening of existing walls achieves similar capacity increases without new foundations, without layout changes, and in a fraction of the time and cost.
Can CFRP fix a bowing basement wall?
Yes. CFRP strips applied vertically to the interior face of a bowing basement wall arrest further movement and increase the wall's resistance to lateral soil pressure. This is a permanent structural repair that is far less disruptive and expensive than exterior excavation and wall replacement. It's one of our most common residential applications.
What is the cost of CFRP wall strengthening?
CFRP wall strengthening typically costs $25 to $80 per square foot of wall area, depending on the number of CFRP layers, surface condition, and access constraints. For foundation wall repair, typical project costs range from $8,000 to $25,000 for a standard residential basement. This is generally 50-70% less than exterior excavation and wall replacement.
