CFRP Seismic Retrofit in California and the Pacific Northwest

The western United States faces some of the most significant seismic hazards on the planet. California's San Andreas Fault system, the Cascadia Subduction Zone threatening Washington and Oregon, and numerous smaller fault systems throughout the region create earthquake risk that affects millions of people and billions of dollars in infrastructure. Carbon Fiber Reinforced Polymer (CFRP) strengthening has emerged as one of the most effective and cost-efficient technologies for seismic retrofit of existing structures — providing earthquake protection without the cost, disruption, and timeline of traditional structural replacement.

The Seismic Threat: Understanding the Risk

The Pacific Coast seismic hazard is not theoretical — it is a documented geological certainty. California experiences thousands of earthquakes annually, with major events like the 1994 Northridge earthquake (M6.7) causing $20 billion in damage and the 1989 Loma Prieta earthquake (M6.9) collapsing sections of the Bay Bridge and Cypress Street Viaduct. But the most significant seismic threat to the region may be the Cascadia Subduction Zone, which runs from northern California through Oregon and Washington to British Columbia.

The Cascadia Subduction Zone is capable of producing magnitude 9.0+ earthquakes — comparable to the 2011 Tohoku earthquake in Japan that caused the Fukushima disaster. Geological evidence shows that Cascadia produces these massive earthquakes approximately every 200-600 years, and the last full-margin rupture occurred on January 26, 1700 — over 325 years ago. Scientists estimate a 10-15% probability of a full Cascadia rupture within the next 50 years, making seismic preparedness an urgent priority for Washington, Oregon, and northern California.

Why Existing Structures Need Seismic Retrofit

The fundamental challenge is that seismic building codes have evolved dramatically over the past several decades. Structures built before modern seismic codes — particularly those constructed before the 1970s — were designed with little or no consideration for earthquake forces. Even structures built to earlier seismic codes may not meet current standards, as each major earthquake has revealed new failure modes that prompted code revisions.

Common seismic vulnerabilities in existing structures include:

• Non-ductile concrete columns — Older concrete columns with insufficient transverse reinforcement (ties or spirals) fail in a brittle shear mode during earthquakes rather than deforming ductilely. This is the most common cause of concrete building collapse during earthquakes.
• Inadequate beam-column joints — Older concrete frame buildings often have beam-column joints with insufficient confinement reinforcement, creating weak points where seismic forces concentrate.
• Unreinforced masonry (URM) — Brick and stone buildings without steel reinforcement are extremely vulnerable to earthquake damage. URM buildings have caused more earthquake deaths in the United States than any other building type.
• Soft story conditions — Buildings with open ground floors (parking, retail) and rigid upper floors create a "soft story" that concentrates seismic deformation at the ground level, often leading to collapse.
• Insufficient bridge column capacity — Bridge columns designed before modern seismic codes lack the ductility and shear capacity to survive strong ground shaking, as demonstrated by the collapse of the Cypress Street Viaduct in 1989.

How CFRP Provides Seismic Protection

CFRP seismic retrofit works by wrapping carbon fiber fabric around concrete columns, beams, and joints to provide additional confinement, shear capacity, and ductility. The mechanism is straightforward but profoundly effective: the carbon fiber wrap acts as external reinforcement that prevents the concrete from expanding laterally during seismic loading, maintaining the column's axial load-carrying capacity even under severe earthquake deformation.

Column Confinement

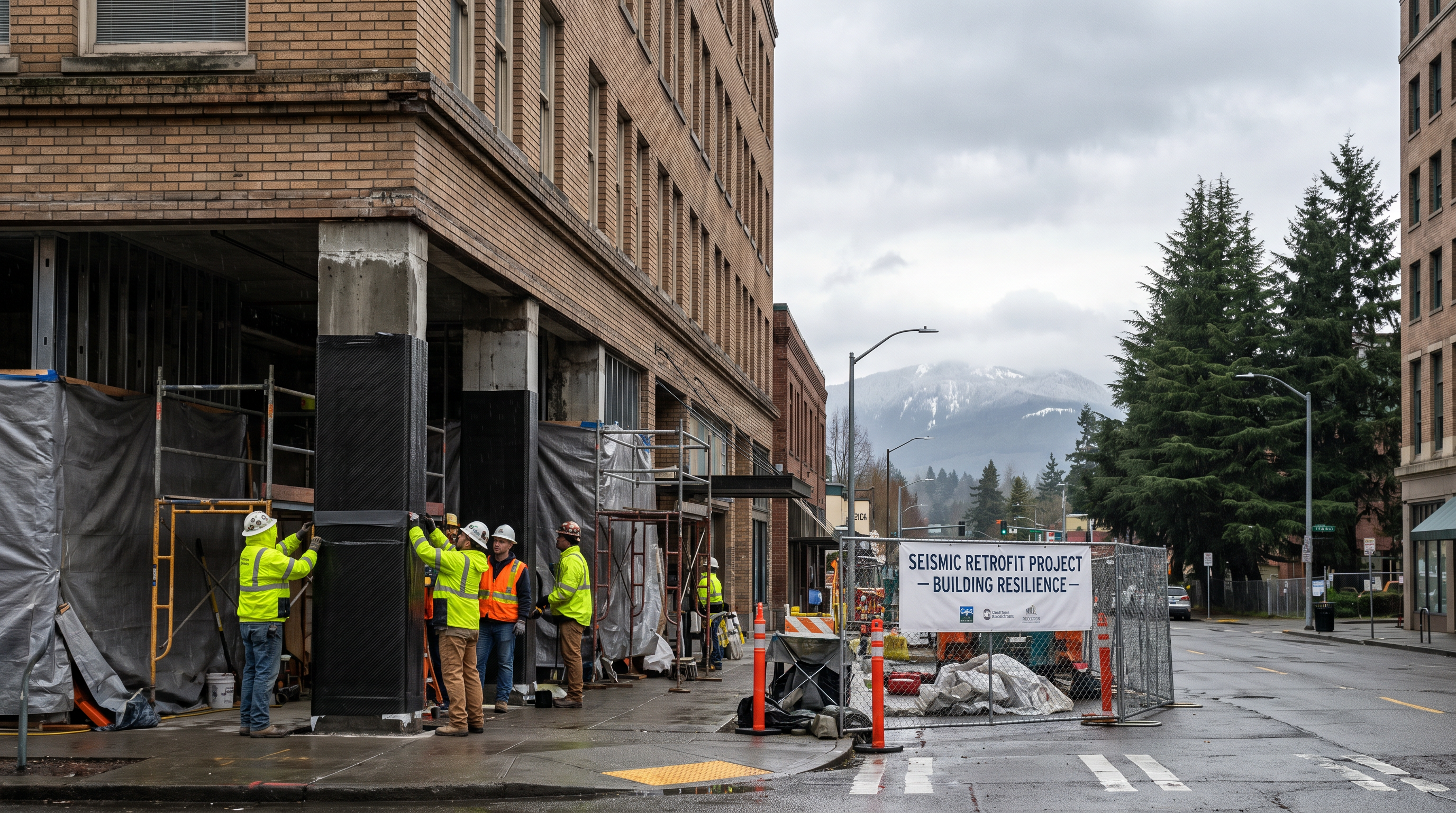

The primary application of CFRP in seismic retrofit is column confinement wrapping. When carbon fiber fabric is wrapped around a concrete column in the hoop (circumferential) direction, it provides passive confinement that activates when the concrete attempts to expand laterally under axial and seismic loads. This confinement dramatically increases the column's ductility — its ability to deform without losing load-carrying capacity — which is the fundamental requirement for earthquake survival.

Research and field performance have demonstrated that CFRP column wrapping can increase column ductility by 2-5 times, depending on the number of wrap layers and the column's existing reinforcement. This means a column that would fail at 1% lateral drift without CFRP can sustain 3-5% drift with CFRP wrapping — the difference between collapse and survival in a major earthquake.

Shear Strengthening

Many older columns fail in shear before they can develop their full flexural capacity. CFRP wraps oriented in the hoop direction provide additional shear capacity that prevents this brittle failure mode, allowing the column to reach its ductile flexural capacity instead. This is particularly important for short, squat columns that are shear-critical by geometry.

Lap Splice Clamping

Older concrete columns often have inadequate lap splices in the longitudinal reinforcement — the overlapping region where one rebar connects to the next. Under seismic loading, these lap splices can pull apart, causing sudden loss of column capacity. CFRP wrapping provides clamping pressure that prevents lap splice failure, maintaining the continuity of the longitudinal reinforcement through the seismic event.

Beyond Columns: Comprehensive Seismic Retrofit with CFRP

While CFRP column wrapping is the most common application, a truly resilient seismic retrofit addresses the entire structural system. Earthquakes impart complex forces that travel through every element of a building, and strengthening columns alone may simply shift the failure point to another unprepared component. Modern seismic engineering with CFRP, therefore, takes a holistic approach, considering beams, slabs, and walls as integral parts of the seismic force-resisting system.

• Beam and Slab Strengthening: Beams and slabs are critical for transferring lateral seismic loads to the columns and shear walls. In older buildings, they often lack the shear or flexural capacity to handle these forces. CFRP laminates and fabrics can be applied to the tension faces of beams and slabs to increase their flexural strength, or wrapped as "U-wraps" to enhance shear capacity. This prevents premature failure and ensures a clear load path. Research has shown that strengthening beam-column joints with CFRP can increase shear capacity by over 25% and significantly improve ductility, preventing the brittle failures that are common in earthquakes.
• Shear Wall and Diaphragm Strengthening: Shear walls and floor/roof diaphragms act as the primary lateral force-resisting elements in many buildings. CFRP can be applied in a grid pattern to the surface of masonry or concrete shear walls to increase their in-plane shear capacity and prevent brittle diagonal tension failures. For large, flexible diaphragms (common in industrial or commercial buildings), CFRP strips can be used to increase stiffness and ensure that seismic forces are distributed evenly to the vertical resisting elements.
• Beam-Column Joint Enhancement: The connection points between beams and columns are among the most critical and complex zones in a concrete frame. Inadequate reinforcement in these joints can lead to catastrophic failure. CFRP wrapping of the joint region provides crucial confinement, enhancing its shear strength and ductility. This ensures the joint can withstand the intense, reversing load cycles of an earthquake and allows the intended "strong column, weak beam" behavior to occur, where plastic hinges form in the beams (which is a ductile failure mode) rather than the columns.

CFRP vs. Traditional Seismic Retrofit Methods

Before CFRP technology became widely available, seismic retrofit of concrete columns typically involved one of two approaches: steel jacketing or concrete jacketing. Both methods are effective but carry significant disadvantages compared to CFRP:

The Role of Engineering and Design in CFRP Retrofit (ACI 440.2R-17)

A successful CFRP seismic retrofit is not just about wrapping columns in carbon fiber; it is a highly engineered solution that must be designed by a qualified structural engineer. The American Concrete Institute's ACI 440.2R-17, "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures," is the governing document for these projects. It provides a detailed framework for:

• Structural Analysis: Evaluating the existing structure to identify seismic deficiencies and determine the required strength and ductility increases.
• FRP System Design: Calculating the required amount of CFRP, including the number of layers, fiber orientation, and anchorage details, to meet the performance objectives.
• Surface Preparation: Specifying the correct procedures for preparing the concrete surface to ensure a strong, durable bond between the CFRP and the structure. This is one of the most critical steps for a successful installation.
• Quality Control and Inspection: Outlining the testing and inspection protocols required to verify that the installation meets the design specifications.

Adherence to ACI 440.2R-17 is not optional; it is essential for ensuring the safety and effectiveness of the retrofit. Property owners should always ensure their CFRP contractor and engineering partner have extensive experience in applying this standard.

State-Specific Seismic Retrofit Requirements

California

California has the most developed seismic retrofit regulatory framework in the nation. The state's mandatory retrofit ordinances — particularly in Los Angeles and San Francisco — require building owners to strengthen vulnerable structures within specified timelines. Los Angeles' Ordinance 183893 (soft-story buildings) and Ordinance 184081 (non-ductile concrete buildings) have created massive retrofit demand. CFRP column wrapping is widely accepted by California building officials and has been used on hundreds of retrofit projects throughout the state.

Washington State

Washington State has been increasing its seismic preparedness efforts in response to growing scientific understanding of the Cascadia Subduction Zone threat. WSDOT has an active bridge seismic retrofit program, and Seattle has begun evaluating mandatory retrofit requirements for unreinforced masonry buildings. CFRP is increasingly specified for bridge column retrofit projects throughout the state.

Oregon

Oregon faces similar Cascadia risk as Washington and has been developing its seismic resilience plan. ODOT's bridge seismic retrofit program has identified hundreds of bridges requiring strengthening, and Portland has evaluated mandatory retrofit requirements for unreinforced masonry buildings. CFRP column wrapping is a primary retrofit technology for Oregon's bridge and building seismic programs.

The Cost Advantage of CFRP Seismic Retrofit

The economics of CFRP seismic retrofit are compelling. For a typical column retrofit project, CFRP wrapping costs 30-50% less than steel jacketing and 40-60% less than concrete jacketing when total project costs (including disruption, schedule, and ancillary work) are considered. The cost savings become even more significant for occupied buildings where minimizing disruption has direct economic value.

For building owners facing mandatory retrofit requirements, CFRP provides the most cost-effective path to compliance. The rapid installation timeline means less lost revenue from building closures, and the minimal space impact means no loss of usable floor area — a critical consideration in high-value urban real estate markets like San Francisco, Seattle, and Portland.

Planning Your Seismic Retrofit Project

If you own or manage a building or bridge in a seismic zone, the first step is a structural assessment to evaluate your structure's current seismic capacity and identify specific vulnerabilities. CFRP Repair provides comprehensive seismic assessments that include:

• Review of original structural drawings and construction records
• Field investigation of existing reinforcement details and concrete condition
• Seismic demand analysis based on current code requirements and site-specific ground motion
• Capacity evaluation of columns, beams, joints, and connections
• CFRP retrofit design with detailed installation specifications
• Cost estimate and project timeline

Our engineering team has designed CFRP seismic retrofit systems for structures ranging from single-story commercial buildings to multi-span highway bridges. We work with building owners, structural engineers, and government agencies to develop retrofit solutions that meet code requirements while minimizing cost and disruption.

Ready to evaluate your structure's seismic vulnerability? Request a free assessment or call 661-733-7009 to discuss your project.
