CFRP Bridge Rehabilitation: A Complete Engineering Guide

The nation's infrastructure is aging, and bridges are a critical component facing significant challenges. Thousands of bridges across the United States are structurally deficient or functionally obsolete, requiring immediate attention. Traditional repair methods involving steel and concrete can be costly, time-consuming, and disruptive. Carbon Fiber Reinforced Polymer (CFRP) composites have emerged as a transformative solution for structural strengthening, offering a durable, high-strength, and rapid alternative for bridge rehabilitation. This guide provides a comprehensive engineering overview of CFRP applications in bridge repair, from design principles to installation.

Understanding Bridge Deterioration and Load Deficiencies

Before exploring the solution, it's essential to understand the problem. Bridge structures degrade over time due to a combination of environmental factors, loading conditions, and material aging. These issues often lead to reduced load-carrying capacity, compromising public safety and necessitating costly interventions.

Common Deterioration Mechanisms

Several mechanisms contribute to the weakening of concrete and steel bridges:

• Corrosion of Steel Reinforcement: This is the most prevalent issue, particularly in regions with heavy use of de-icing salts or marine environments. Chloride ingress breaks down the passive layer protecting the steel rebar, initiating corrosion, which causes concrete cracking, spalling, and a reduction in the steel's cross-sectional area.
• Freeze-Thaw Cycles: Water penetrating the concrete pores expands when it freezes, creating internal pressures that lead to surface scaling, cracking, and delamination over time.
• Alkali-Silica Reaction (ASR): A chemical reaction between the alkaline cement paste and reactive silica aggregates in the concrete can form a gel that expands with moisture, causing extensive internal cracking and structural damage.
• Fatigue: Repetitive traffic loading, especially from heavy trucks, can induce fatigue in steel components, leading to crack initiation and propagation at stress concentration points, such as welds and connections.

Load Rating Deficiencies

A bridge's load rating determines the maximum weight it can safely carry. Deficiencies arise for two primary reasons:

1. Increased Legal Loads: Over the decades, legal vehicle weight limits have increased. A bridge designed 50 years ago may no longer have the capacity to safely handle modern truck traffic, even if it is in perfect condition.
2. Section Loss and Degradation: Deterioration directly reduces the capacity of structural members. Corrosion diminishes the effective area of steel reinforcement in concrete beams, while section loss in steel girders reduces their flexural and shear strength. A load rating analysis based on the current, deteriorated condition of the bridge will often reveal a capacity well below the original design intent.

When a bridge is found to have a load rating insufficient for legal loads, it must be posted with weight limits, restricting commercial and emergency vehicle access. This creates significant economic and logistical disruptions, making efficient rehabilitation a top priority for bridge owners.

CFRP Strengthening for Bridge Superstructures

CFRP composites provide an effective method to restore or enhance the load-carrying capacity of bridge beams and girders. The system consists of high-strength carbon fibers embedded in a polymer matrix, which is applied to the surface of the existing structure. The result is a supplemental structural system that is lightweight, corrosion-proof, and incredibly strong.

Flexural Strengthening of Beams and Girders

The most common application of CFRP in bridge rehabilitation is for flexural strengthening. When a beam bends under load, the bottom portion experiences tension. By bonding CFRP laminates or fabrics to the tension face (the soffit) of a beam, the composite material acts as external reinforcement, carrying a portion of the tensile forces.

This approach significantly increases the beam's moment capacity. The high tensile strength of carbon fibers—often ten times that of steel—allows a thin, lightweight application to provide a substantial boost in strength. This is a key advantage of what CFRP strengthening is and why it is so effective. The process involves preparing the concrete surface, applying a saturating resin, and then placing the CFRP material, ensuring a strong bond is achieved. The lightweight nature of the material means installation can often proceed with minimal traffic disruption.

Shear Strengthening of Beams and Girders

Shear forces are highest near the supports of a beam. Inadequate shear capacity can lead to diagonal tension cracks, a brittle and dangerous failure mode. CFRP can be used to enhance shear strength by applying it to the sides (webs) of the beams.

CFRP fabrics are typically applied in one of three configurations:

• Side Bonding: Strips are bonded to the sides of the beam.
• U-Wraps: The fabric is wrapped around the sides and bottom of the beam in a "U" shape. This is the most common method as it provides anchorage for the fibers.
• Complete Wraps: The fabric is wrapped entirely around the beam's cross-section. This is the most effective method but is often impractical due to the presence of the bridge deck.

The fibers in the CFRP wrap are oriented perpendicular to the direction of potential shear cracks (typically vertically or at a 45-degree angle). When a shear crack begins to form, the CFRP engages, bridging the crack and preventing its propagation, thereby increasing the member's shear capacity.

Design Principles: ACI 440.2R and AASHTO Guidelines

The design of CFRP strengthening systems is governed by established industry codes and guidelines, primarily ACI 440.2R-17, "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures," and supplemental guidance from AASHTO.

The core principle is limit-state design. The strengthened member must be checked for both serviceability (stress and crack control) and ultimate strength. A critical aspect of the design is ensuring that the failure mode is ductile. The guidelines impose limits on the amount of strengthening that can be added to prevent a brittle failure, such as debonding of the CFRP from the concrete substrate.

Key Design Considerations:

• Substrate Condition: The concrete must have sufficient tensile strength to transfer load to the CFRP. A pull-off test is required to verify the substrate is sound.
• Bond-Critical Failure Modes: The design strength of the CFRP system is often controlled by the bond between the CFRP and the concrete. ACI 440 provides equations to calculate the debonding strain, which limits the usable strain in the CFRP to prevent it from peeling off the concrete surface before the fibers can reach their full tensile strength.
• Environmental Durability: The design must account for long-term performance. Environmental reduction factors are applied to the CFRP material properties to account for potential degradation from UV exposure, moisture, and temperature cycles.
• Creep and Fatigue: The design must consider the effects of sustained loads (creep) and cyclic loads (fatigue) on the bond and the material itself to ensure long-term durability.

Understanding the costs associated with CFRP involves not just materials but also this detailed engineering and design phase, which is critical for a successful and safe outcome.

Advanced CFRP Systems: Pushing the Boundaries of Bridge Repair

While externally bonded CFRP fabrics and laminates are the conventional approach, recent innovations have introduced more advanced systems that offer superior performance, durability, and efficiency. These next-generation solutions are engineered to tackle more complex structural deficiencies and provide even greater long-term value.

Near-Surface Mounted (NSM) CFRP Reinforcement

The Near-Surface Mounted (NSM) technique represents a significant evolution in CFRP application. Instead of bonding materials to the concrete surface, the NSM method involves placing CFRP strips or rods into pre-cut grooves filled with a high-strength epoxy adhesive.

The NSM process involves:

1. Grooving: Cutting narrow, shallow grooves (typically 1.5 times the bar or strip diameter) into the concrete cover in the required strengthening region.
2. Cleaning: Thoroughly cleaning the grooves of dust and debris using compressed air.
3. Epoxy Injection: Partially filling the grooves with a specialized, high-viscosity epoxy paste.
4. CFRP Placement: Pressing the CFRP bar or strip into the epoxy-filled groove, causing the adhesive to displace and encapsulate the reinforcement.
5. Finishing: Troweling the surface flush for a clean, unobtrusive finish.

This method offers several key advantages over surface bonding. By embedding the reinforcement within the concrete member, the CFRP is better protected from direct impact, abrasion, and fire. Furthermore, the NSM technique provides a superior mechanical bond and anchorage, enhancing the system's overall performance and resistance to delamination, making it a highly robust solution for both flexural and shear strengthening.

Prestressed CFRP Systems

Prestressing takes CFRP strengthening to the next level of efficiency. In this advanced application, a tensile force is applied to the CFRP laminate or tendon before it is anchored to the structure. This pre-tensioning is then locked in, creating a compressive force in the concrete that actively counteracts the tensile forces imposed by traffic loads.

This "active" strengthening approach makes more efficient use of the CFRP's high strength. It leads to immediate benefits, including:

• Instant Load Reduction: The prestressing force immediately reduces the stress in the existing steel reinforcement, mitigating fatigue and extending the structure's life.
• Superior Crack Control: By inducing compression, prestressed CFRP can reduce the width of existing cracks or even close them entirely, preventing further moisture ingress and corrosion.
• Increased Stiffness: The system provides a more significant increase in the overall stiffness of the member compared to non-prestressed applications.

A notable innovation in this area is the Flat Prestressed Unbonded Retrofit (FPUR) system, which uses mechanical clamps to anchor pre-tensioned CFRP plates to steel girders. This avoids the use of adhesives, addressing concerns about the long-term performance of bonded joints in harsh environments and allowing for application on corroded or uneven surfaces.

Factory-Pultruded Pre-Cured Laminates

While wet layup systems involving resin-saturated fabrics are common, the use of pre-cured, pultruded CFRP plates (or laminates) is often preferred for bridge applications. These components are manufactured in a controlled factory environment through a process called pultrusion, where carbon fibers are pulled through a resin bath and then through a heated die to create a solid, cured composite with a precise shape and consistent properties.

Using pre-cured laminates ensures a higher quality, more reliable product with superior mechanical properties compared to field-saturated fabrics. The installation is often faster and less prone to workmanship errors, making it a highly dependable solution for critical infrastructure projects.

Quality Control and Assurance: Ensuring Long-Term Performance

A successful CFRP strengthening project is not just about using high-strength materials; it is fundamentally dependent on rigorous quality control at every stage. From substrate assessment to post-installation inspection, adherence to established standards is critical for ensuring the system's long-term durability and performance.

Substrate Repair and Surface Preparation

The bond between the CFRP system and the existing concrete is the single most critical factor determining its success. The substrate must be sound, clean, and properly profiled to achieve the required bond strength. According to ACI guidelines, the prepared concrete surface should have a minimum tensile pull-off strength of 200 psi (1.4 MPa), with 250 psi (1.7 MPa) being a common project specification.

Key steps include:

• Concrete Surface Profile (CSP): The surface must be mechanically abraded to achieve a specific roughness, typically a CSP-3 to CSP-5 as defined by the International Concrete Repair Institute (ICRI). This removes laitance and creates a textured profile for the epoxy to grip.
• Crack Repair: All dormant cracks wider than 0.01 inches (0.25 mm) within the bond area must be repaired, typically via epoxy injection, to create a solid, monolithic substrate.
• Substrate Testing: Pull-off tests (per ASTM D7522) are performed on representative areas before full-scale installation to verify that the concrete substrate's tensile strength is adequate.

Non-Destructive Testing (NDT) for Bond Verification

After the CFRP system has cured, it is essential to verify the quality of the bond and ensure there are no hidden defects. Non-Destructive Testing (NDT) methods are used to inspect the bonded area for voids, air pockets, or delaminations without damaging the repair.

Common NDT techniques for CFRP include:

• Acoustic Tapping: A simple but effective method where the surface is systematically tapped with a small hammer or chain. A solid, sharp sound indicates a good bond, while a dull or hollow sound suggests a potential void.
• Infrared (IR) Thermography: This technique uses a thermal camera to detect subsurface anomalies. The area is gently heated, and areas with voids or delaminations will exhibit different thermal signatures as they cool, appearing as "hot spots."
• Shearography: An advanced laser-based optical method that can detect very small debonds by measuring surface deformations under a slight change in pressure or temperature. It is highly sensitive and provides a full-field view of the bond condition.

Implementing a thorough QA/QC plan based on ACI 440.2R-17 guidelines is non-negotiable for ensuring the safety and longevity of the rehabilitated bridge.

Cost-Benefit Analysis: The Business Case for CFRP

While the upfront material cost of CFRP can be higher than traditional materials like steel plates, a comprehensive cost-benefit analysis reveals a compelling financial advantage, particularly when considering life-cycle costs and indirect user costs.

Studies have shown that while the initial investment for CFRP might be 1.5x to 2x that of a conventional repair, the long-term savings are substantial. The reduced construction time minimizes the immense economic impact of traffic detours and delays. Furthermore, the superior durability of CFRP means a longer service life extension with far lower maintenance costs, avoiding the cycle of repeated repairs. For many bridge owners, the reduced user impact and long-term value make CFRP the most cost-effective solution over the life of the structure.

Environmental and Sustainability Benefits of CFRP

Beyond the structural and economic advantages, CFRP strengthening offers significant environmental benefits compared to traditional reconstruction methods. As infrastructure decisions face increasing scrutiny for their environmental impact, the sustainability of CFRP becomes a critical decision-making factor.

Reduced Carbon Footprint

Traditional bridge repair or replacement is an energy-intensive process. It involves the demolition of large amounts of concrete, the production of new cement (a major source of CO2 emissions), and the transportation of heavy materials and equipment to the site.

In contrast, CFRP strengthening is a low-impact, additive process. Key environmental advantages include:

• Material Reduction: CFRP strengthening adds a small volume of material to the existing structure, avoiding the need for mass concrete or steel replacement. This drastically reduces the demand for new raw materials and the associated carbon emissions from their production.
• Lower Transportation Emissions: CFRP materials are incredibly lightweight. A roll of carbon fiber fabric that can provide the tensile strength equivalent to tons of steel can be transported in a small truck, significantly reducing fuel consumption and transportation-related emissions.
• Extended Service Life: By extending the functional lifespan of a bridge by 20 years or more, CFRP delays the need for a full replacement. This effectively defers the massive carbon footprint associated with demolition and new construction, preserving the embodied energy of the existing structure.

Minimized Site Disturbance

Major bridge reconstruction can cause significant disruption to the local environment. This can include impacts on waterways from demolition debris, noise pollution from heavy machinery, and air quality degradation from dust and equipment exhaust. The minimally invasive nature of CFRP installation mitigates these impacts. Work is often confined to the immediate area below the bridge, with less noise, dust, and general disturbance to the surrounding ecosystem and community.

Contribution to a Circular Economy

By focusing on repair and reuse rather than demolition and replacement, CFRP strengthening aligns with the principles of a circular economy. It prioritizes the preservation of existing assets, maximizing their value and service life. This approach is a more sustainable model for infrastructure management, reducing waste and conserving resources for future generations. As asset owners and government agencies place a higher value on sustainability, the environmental case for CFRP becomes just as compelling as its technical performance.

Installation on Active Bridges: A Logistical Advantage

One of the most significant benefits of CFRP rehabilitation is the ability to perform the work with minimal disruption to traffic. Unlike a full bridge replacement or major concrete repairs, CFRP installation is a surface-applied process that can often be completed from below the bridge.

The typical installation sequence is as follows:

1. Surface Preparation: The concrete surface is ground to remove any laitance or contaminants and to achieve a specific profile for optimal bond. Cracks are injected with epoxy.
2. Primer Application: A primer is applied to the prepared concrete to seal the surface and enhance the bond of the saturating resin.
3. Resin and CFRP Application: The saturating resin (epoxy) is applied to the surface, and the CFRP fabric or laminate is placed into the wet resin. Rollers are used to work the resin into the fibers and remove any air voids.
4. Curing: The epoxy is allowed to cure, typically for 24-72 hours, depending on the product and ambient temperature. During this time, the strengthened member should not be subjected to significant load changes.

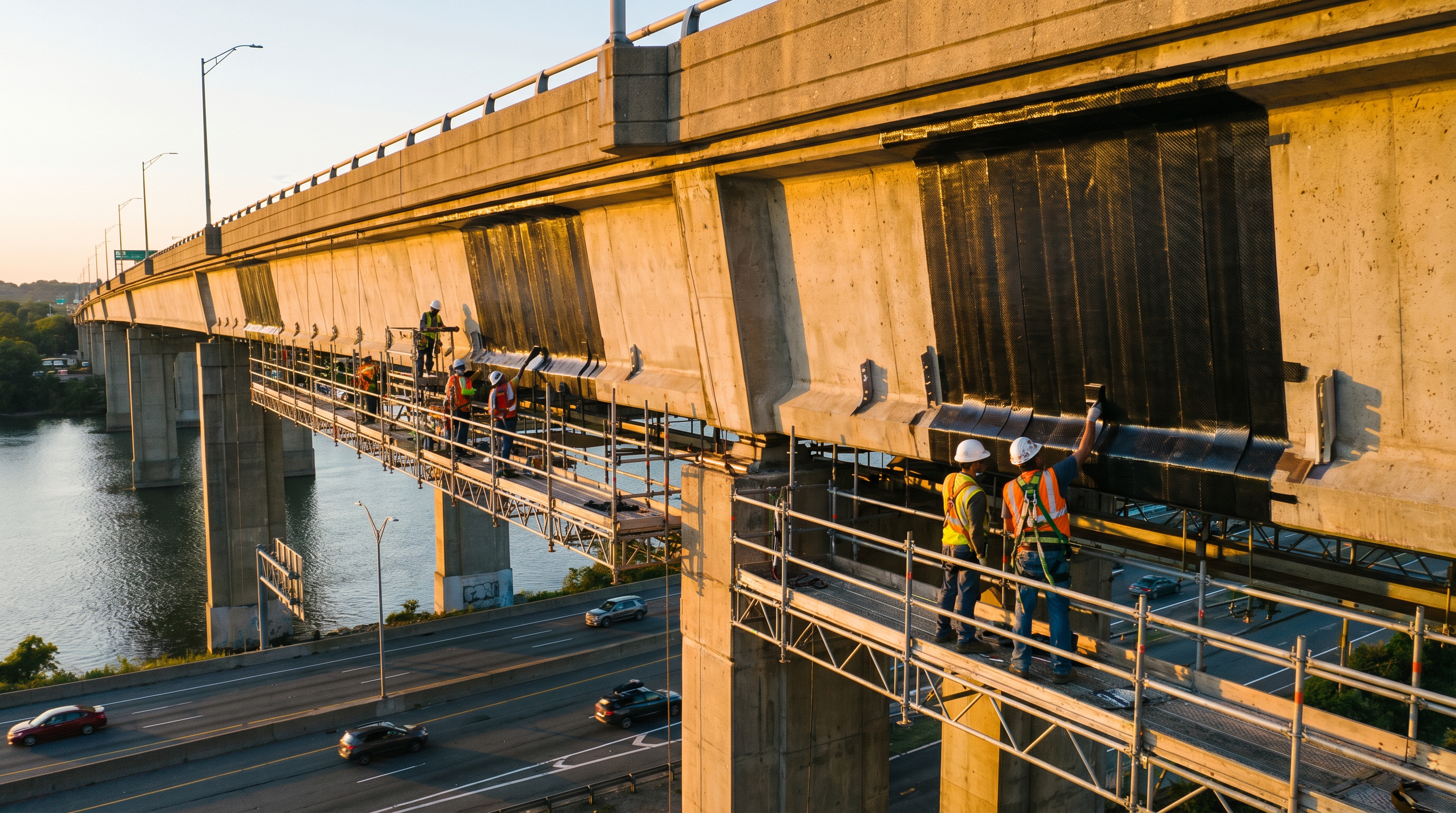

This process can be executed using man-lifts or scaffolding, often allowing lanes to remain open above. This rapid, low-impact installation reduces the societal costs associated with traffic detours and long construction timelines, making it an attractive option for transportation agencies in states like Pennsylvania and Ohio where traffic density is high.

Case Examples of CFRP Bridge Rehabilitation

Real-world applications demonstrate the power of CFRP technology. In one notable project capability involving bridge beam strengthening, a series of concrete T-beam bridges showed significant shear and flexural deficiencies during a routine load rating analysis. Instead of imposing restrictive weight limits, the transportation authority opted for CFRP strengthening.

CFRP U-wraps were applied to the webs of the beams to increase shear capacity, while longitudinal CFRP laminates were bonded to the soffits to enhance flexural strength. The installation was completed in a matter of weeks with only nighttime lane closures. Post-strengthening load tests confirmed that the bridge capacity was restored to well above legal load requirements, extending the service life of the structure by decades at a fraction of the cost of replacement.

Similar success stories are found across the country, from rural bridges in Oklahoma to major overpasses in urban centers of Georgia and Tennessee, proving CFRP is a versatile and reliable tool for modern infrastructure preservation.

Limitations and Challenges of CFRP

While CFRP offers numerous advantages, it is not a universal solution, and engineers must be aware of its limitations and challenges to ensure its appropriate and successful application.

High Initial Material Cost

The most significant barrier to the wider adoption of CFRP is the high initial cost of the materials themselves. Carbon fibers are energy-intensive to produce, and the epoxy resins are specialized chemical products. While life-cycle cost analysis often favors CFRP, the upfront capital investment can be a deterrent for projects with tight budgets.

Susceptibility to UV Radiation

The epoxy matrix used in most CFRP systems can be degraded by long-term exposure to ultraviolet (UV) radiation from sunlight. This degradation can make the resin brittle and reduce its ability to transfer stress to the carbon fibers. To mitigate this, CFRP systems installed in locations exposed to direct sunlight must be protected with a UV-resistant topcoat, such as an aliphatic polyurethane or acrylic paint. This adds an extra step and cost to the installation process and requires periodic inspection and maintenance.

Low Fire Resistance

CFRP systems have a relatively low resistance to high temperatures. The glass transition temperature (Tg) of the epoxy resin—the temperature at which it begins to soften and lose its mechanical properties—is typically between 150°F and 200°F (65°C to 93°C). In the event of a fire, such as a tanker truck fire on a bridge, the epoxy can soften or burn, leading to a complete loss of the strengthening effect. For this reason, CFRP is often not recommended for structures where fire is a significant risk, unless specific fire protection measures are implemented.

Need for Specialized Labor

The installation of CFRP systems requires a high level of skill and training. The performance of the system is highly dependent on the quality of the workmanship, particularly in surface preparation and resin application. A lack of experienced and certified installers can be a challenge in some regions, and the cost of specialized labor can be higher than for traditional construction trades.

Difficulty in Making Field Modifications

Once a CFRP system is installed and cured, it is very difficult to modify. Cutting or drilling through cured CFRP is challenging and can damage the fibers, compromising the strength of the system. Any modifications or future attachments to the structure must be carefully planned before the CFRP is installed.

Conclusion: The Future of Bridge Repair

CFRP strengthening represents a paradigm shift in bridge rehabilitation. It addresses the core structural deficiencies caused by deterioration and increased loading with a solution that is strong, durable, and minimally disruptive. By leveraging the principles of ACI 440 and the unique properties of composite materials, engineers can extend the life of our critical bridge infrastructure safely and cost-effectively. As our nation continues to confront its aging infrastructure crisis, CFRP will undoubtedly play an increasingly vital role in keeping our bridges safe and our economy moving.
