Structural problems rarely appear overnight. They develop gradually, often over years or decades, progressing from minor cosmetic issues to serious safety concerns. Recognizing the early warning signs of structural distress can save building owners hundreds of thousands of dollars in repair costs and prevent potentially dangerous structural failures. This guide details the five most critical warning signs that your building may need professional structural assessment and repair, and introduces the advanced diagnostic techniques used to provide a definitive analysis.
1. Cracking Patterns in Concrete and Masonry
Not all cracks indicate structural problems — concrete naturally develops shrinkage cracks as it cures, and minor hairline cracks are common in both concrete and masonry structures. However, certain cracking patterns are clear indicators of structural distress that require professional evaluation.
Diagonal cracks at 45 degrees in beams or walls typically indicate shear stress exceeding the element's capacity. Horizontal cracks in columns suggest excessive axial loading or lateral pressure. Vertical cracks in the mid-span of beams indicate flexural overload. Stair-step cracking in masonry walls signals differential settlement or lateral movement. Any crack wider than 1/16 inch (1.5mm) or any crack that is actively growing warrants immediate professional assessment.
The location, orientation, width, and pattern of cracks provide critical diagnostic information to structural engineers. Documenting cracks with photographs and measurements over time helps engineers determine whether the condition is stable or progressing, and what type of structural intervention is needed.
2. Spalling and Exposed Reinforcement

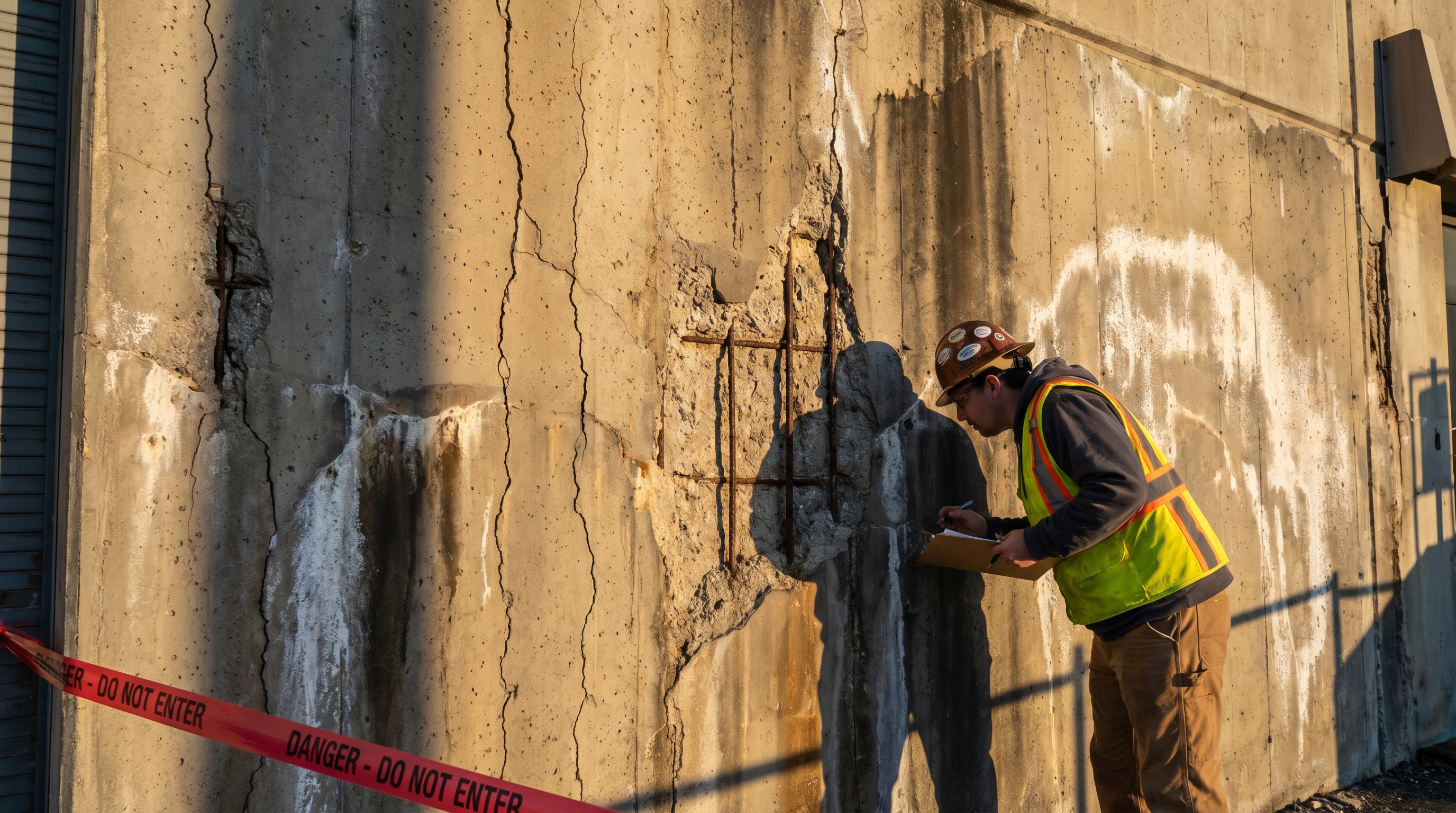

Spalling — the breaking away of concrete surface layers — is one of the most visible and concerning signs of structural deterioration. Spalling typically results from corrosion of the internal steel reinforcement: as steel rusts, it expands to several times its original volume, creating internal pressure that fractures the surrounding concrete.
When spalling progresses to the point where reinforcing steel is visible, the condition is serious. Exposed reinforcement is actively corroding, and the cross-sectional area of the steel is decreasing — directly reducing the structural capacity of the element. Left untreated, reinforcement corrosion can reduce a beam's capacity by 20-40% over a period of 10-20 years.
Rust staining on concrete surfaces — even without visible spalling — is an early indicator of reinforcement corrosion. The rust migrates through the concrete pores to the surface, creating characteristic brown-orange stains. This is a warning sign that spalling will develop in the future if the corrosion is not addressed.
3. Excessive Deflection or Sagging
Visible sagging or deflection of beams, slabs, or floors indicates that the structural element is being loaded beyond its serviceability limits. While some deflection is normal and accounted for in structural design, excessive deflection suggests that the element's stiffness has been reduced (due to cracking, corrosion, or material degradation) or that the applied loads exceed the design assumptions.
Deflection limits are specified in building codes — typically L/240 to L/360 of the span length for floor elements, where L is the span. A 20-foot beam, for example, should not deflect more than 0.67 to 1.0 inches under service loads. Deflection exceeding these limits can cause cracking in partitions and finishes, door and window misalignment, and ponding of water on flat roofs.
If you notice floors that feel bouncy or springy, doors that no longer close properly, or visible sagging in ceiling lines, these are indicators of excessive structural deflection that should be evaluated by a professional engineer.
4. Water Infiltration and Moisture Damage
Water is the primary enemy of concrete and steel structures. Water infiltration accelerates reinforcement corrosion, causes freeze-thaw damage in cold climates, promotes alkali-silica reaction in susceptible concrete, and creates conditions for biological growth that can further deteriorate structural materials.
Signs of water-related structural damage include efflorescence (white mineral deposits on concrete surfaces), active water leaks through cracks or joints, damp or wet areas on structural elements, and calcium carbonate stalactites forming on the underside of concrete slabs. In parking garages, water infiltration from the driving surface is the primary cause of structural deterioration.
Addressing water infiltration is essential before any structural strengthening work. CFRP systems require a dry, sound substrate for proper bonding. Our structural assessments always evaluate moisture conditions and recommend waterproofing measures as part of the overall repair strategy.
5. Changes in Building Use or Loading
This warning sign is different from the others — it's not a visible symptom of distress, but a change in conditions that may create structural inadequacy. When a building's use changes, the structural loads often change as well. Converting an office to a warehouse, installing heavy equipment, adding a mezzanine, or increasing vehicle weights in a parking garage can all impose loads that exceed the original structural design.
Building codes specify different live load requirements for different occupancy types: 50 psf for offices, 100 psf for light storage, 125 psf for heavy storage, and 250 psf for manufacturing. A building designed for 50 psf office loads cannot safely support 125 psf storage loads without structural evaluation and potential strengthening.
If you're planning any change in building use, equipment installation, or occupancy modification, a structural assessment should be conducted before the change occurs. CFRP strengthening can increase floor load capacity to meet the new requirements, often at a fraction of the cost of structural replacement.
Beyond Visual Inspection: Advanced Diagnostic Techniques
While visual inspection is the first step, a comprehensive structural assessment often requires advanced Non-Destructive Testing (NDT) to understand the full extent of deterioration. These technologies allow engineers to see inside concrete and identify problems that are not visible on the surface. At CFRP Repair, we utilize a suite of NDT methods to provide our clients with the most accurate and detailed assessments possible.
Ground Penetrating Radar (GPR): GPR is a powerful tool that uses electromagnetic waves to map the interior of concrete structures. It can accurately locate reinforcing steel, post-tensioning cables, and conduits, as well as identify voids, delaminations, and areas of deterioration. GPR is particularly useful for assessing concrete slab-on-grade, bridge decks, and parking garage slabs.
Infrared Thermography (IR): IR cameras detect temperature differences on the surface of concrete, which can indicate subsurface delaminations, voids, or moisture intrusion. As the sun heats a concrete surface, these defects disrupt the normal flow of heat, creating thermal anomalies that are visible with an IR camera. This technique is highly effective for rapidly scanning large areas like building facades and bridge decks.
Impact-Echo (IE): This method uses sound waves to evaluate the integrity of concrete. A small mechanical impact is applied to the surface, and the resulting stress waves are measured by a sensor. By analyzing the frequency of the waves, engineers can determine the thickness of the concrete element and detect internal flaws such as voids, delaminations, and honeycombing.
Comparing NDT Methods for Concrete Assessment
Each Non-Destructive Testing method has unique strengths and is suited for different applications. Often, a combination of methods provides the most comprehensive understanding of a structure's condition. The table below compares the primary NDT techniques used in concrete assessment.
| Method | Primary Use | Advantages | Limitations |
|---|---|---|---|
| Ground Penetrating Radar (GPR) | Locating rebar, conduits, post-tension cables; detecting voids and delamination. | Fast, high-resolution imaging of subsurface features. Can penetrate deep into concrete. | Data interpretation requires skilled technicians. Signal can be attenuated by high moisture or chloride content. |
| Infrared Thermography (IR) | Detecting delamination, voids, and moisture intrusion over large areas. | Very fast for scanning large surfaces like facades or bridge decks. Non-contact. | Requires specific environmental conditions (solar loading) for best results. Primarily detects near-surface defects. |
| Impact-Echo (IE) | Measuring element thickness; detecting deep delaminations, voids, and honeycombing. | Accurate for thickness measurement and detecting deep flaws. Can be used on various geometries. | Slower, point-by-point measurement. Requires good surface contact. |
| Half-Cell Potential (HCP) | Assessing the probability of active rebar corrosion. | Directly measures electrochemical potential related to corrosion. Standardized by ASTM C876. | Only indicates probability, not corrosion rate. Requires electrical connection to rebar. |
The Role of ACI Standards in Structural Assessment
Professional structural assessments are not arbitrary; they are guided by established industry standards to ensure safety, reliability, and consistency. The American Concrete Institute (ACI) is a leading authority in this field, and its publications provide the framework for evaluating and repairing concrete structures. ACI 440.2R-17, "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures," is a critical document that we adhere to in all our CFRP strengthening projects. This guide provides detailed instructions on everything from substrate preparation and material selection to installation and quality control.
In addition to ACI 440.2R-17, our engineers also reference other important standards such as ACI 562, "Code Requirements for Assessment, Repair, and Rehabilitation of Existing Concrete Structures," and ACI 318, "Building Code Requirements for Structural Concrete." By following these industry-best practices, we ensure that our assessments are thorough and our repair designs are safe, durable, and code-compliant.
Real-World Scenarios: From Warning Signs to Structural Solutions
Understanding these warning signs is more impactful when seen through real-world examples. Consider a 1970s-era parking garage in a major metropolitan area. The owner noticed significant cracking and spalling on the underside of the elevated slabs, along with rust stains and water leakage. A structural assessment, including GPR and IR scans, revealed widespread delamination and corrosion of the reinforcing steel, reducing the garage's load capacity to unsafe levels. The solution involved removing the delaminated concrete, cleaning the existing rebar, and applying a CFRP strengthening system to restore and enhance the garage's structural integrity, extending its service life by over 20 years.
Another common scenario involves warehouse floor slabs. A company leasing a new facility planned to use heavy-duty forklifts and high-density racking systems. A structural evaluation revealed that the existing 6-inch slab was only designed for light office loads and would not safely support the proposed new loads. Instead of a costly and disruptive slab replacement, CFRP strips were applied to the underside of the slab to increase its flexural capacity, allowing the company to move in and begin operations on schedule.
The Financial Consequences of Neglect
Ignoring the warning signs of structural distress is not just a safety risk; it's a significant financial liability. The cost of structural repair escalates dramatically as deterioration progresses. A minor crack that might cost a few thousand dollars to seal and monitor can evolve into a major spalling issue requiring tens of thousands of dollars in concrete patching and reinforcement repair. The "rule of fives" is a well-known concept in infrastructure maintenance: for every dollar not spent on preventative maintenance, five dollars will be needed for repairs, and twenty-five dollars for replacement.
Furthermore, unaddressed structural issues can lead to business interruption, loss of rental income, and increased insurance premiums. In the most severe cases, a structural failure can result in catastrophic financial losses and legal liabilities. Proactive assessment and repair, especially with cost-effective solutions like CFRP strengthening, represent a high-return investment in the long-term value and safety of your property. A professional structural assessment provides the data needed to make informed financial decisions, prioritizing repairs and planning capital expenditures effectively.
What to Do If You See These Signs
If you observe any of these warning signs in your building, the appropriate response is to contact a qualified structural engineer for a professional assessment. Do not attempt to evaluate structural conditions yourself — the severity of structural problems is often not apparent from visual inspection alone, and some conditions that appear minor may indicate serious underlying issues.
CFRP Repair provides free structural assessments conducted by licensed professional engineers. Our assessments evaluate the full range of structural conditions and provide actionable recommendations for repair and strengthening. Early intervention is always more cost-effective than delayed repair — contact us today to schedule your assessment.
