Why Parking Garages Are Uniquely Vulnerable
Parking garages represent one of the most challenging structural environments in commercial construction. Unlike enclosed buildings, parking structures are exposed to the full range of environmental stressors: freeze-thaw cycling, road salt from vehicles, moisture infiltration, carbonation, and continuous dynamic loading from traffic. These factors combine to create an accelerated deterioration cycle that can compromise structural integrity decades before the structure's intended design life expires.
The statistics are sobering. According to the International Concrete Repair Institute (ICRI), the average parking garage begins showing significant deterioration within 15-20 years of construction, and many structures built in the 1960s through 1980s are now in critical need of rehabilitation. Traditional repair approaches — demolition and reconstruction, or extensive steel reinforcement — are prohibitively expensive and disruptive. This is where carbon fiber reinforced polymer (CFRP) strengthening has emerged as a transformative solution, offering a faster, more durable, and cost-effective alternative.
Understanding Parking Garage Deterioration
Before discussing CFRP solutions, it's essential to understand the specific deterioration mechanisms that affect parking garages. The primary culprit is chloride-induced corrosion of reinforcing steel. When vehicles enter a garage during winter months, they carry road salt and deicing chemicals on their tires and undercarriages. This salt-laden water drips onto the concrete deck surface and, over time, penetrates through the concrete cover to reach the embedded reinforcing steel.
Once chloride ions reach the rebar, they break down the passive oxide layer that normally protects steel from corrosion. The resulting rust occupies approximately 6-10 times the volume of the original steel, creating expansive pressure that cracks and spalls the surrounding concrete. This process is self-reinforcing: cracks allow more moisture and chlorides to penetrate, accelerating further corrosion in a deterioration spiral. This is one of the most common warning signs of structural damage.
Freeze-thaw cycling compounds the problem. Water that has infiltrated cracks expands when it freezes, widening existing cracks and creating new ones. In northern climates, parking garages may experience 100 or more freeze-thaw cycles per year, each one incrementally worsening the concrete's condition.
Structural loading adds another dimension. Parking garages experience continuous dynamic loading from vehicle traffic, including impact loads from vehicles traversing expansion joints and speed bumps. Over time, this cyclic loading can cause fatigue in concrete elements, particularly at connection points between beams and columns.
How CFRP Strengthening Works for Parking Garages
CFRP strengthening addresses parking garage deterioration through three primary application methods, each targeting specific structural elements and deficiencies:
Flexural Strengthening of Beams and Slabs
The most common CFRP application in parking garages involves bonding carbon fiber sheets or strips to the tension face (bottom) of concrete beams and slabs. This increases the flexural capacity of the member, compensating for section loss due to corrosion or allowing increased load capacity for changed use requirements. A single layer of CFRP can increase flexural capacity by 20-40%, while multiple layers can achieve even greater strengthening.
Shear Strengthening of Beams
Shear deficiencies in parking garage beams are addressed by applying CFRP strips or sheets in a U-wrap configuration around the beam web. This is analogous to adding external stirrups and can increase shear capacity by 30-60%. Shear strengthening is particularly important for beams that have lost stirrup capacity due to corrosion.
Column Confinement

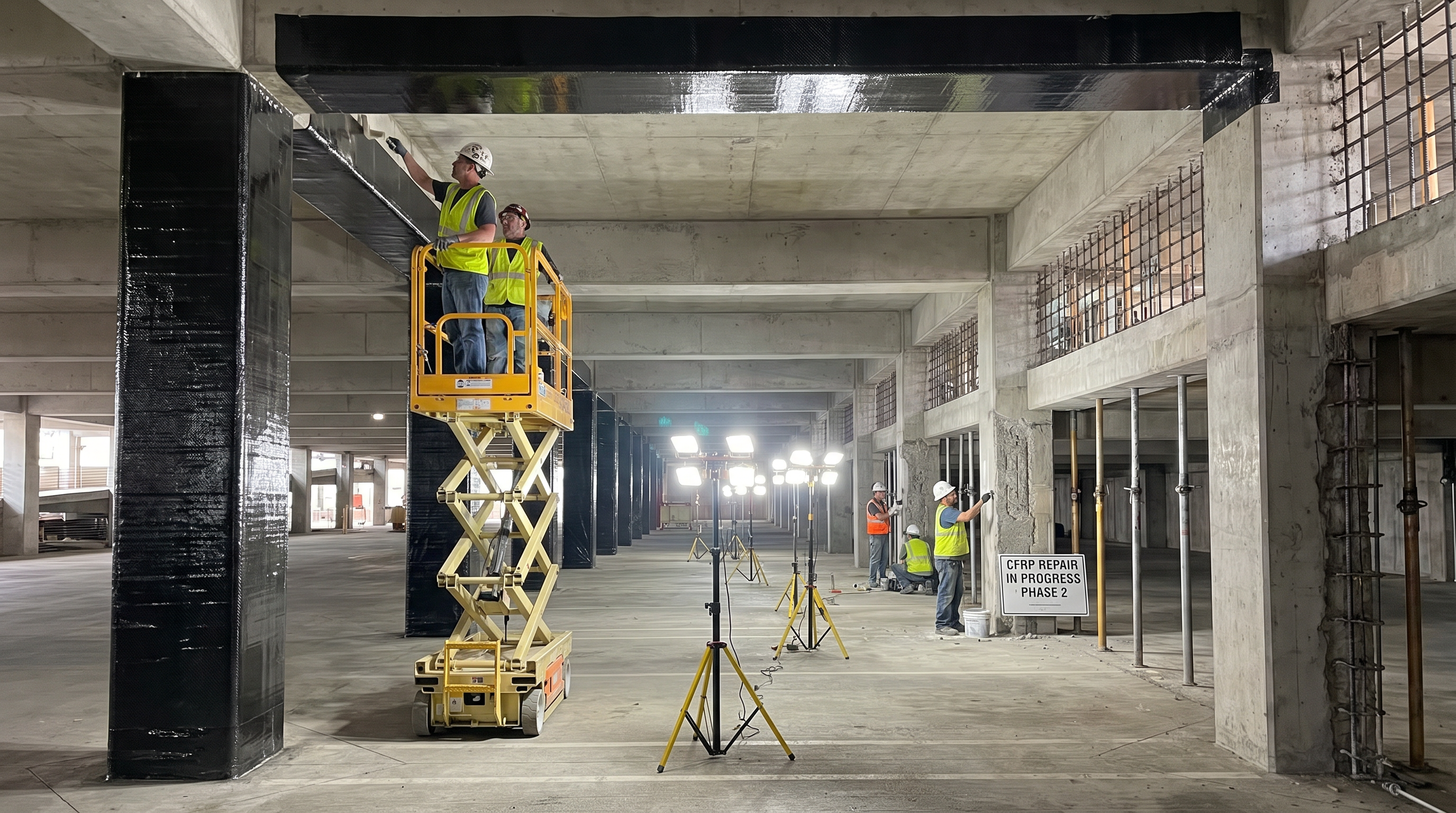

Parking garage columns, especially those in drive aisles exposed to vehicle impact and salt spray, are strengthened by wrapping them with CFRP sheets. This confinement increases both the axial load capacity and the ductility of the column. For columns in seismic zones, CFRP wrapping can dramatically improve seismic performance by preventing brittle failure modes.
Advanced Diagnostic Techniques for Parking Structure Assessment
A successful strengthening project begins with an accurate diagnosis. While visual inspection is the first step, modern Non-Destructive Testing (NDT) methods provide a much deeper understanding of the garage's condition, allowing for a more precise and efficient repair strategy. These techniques, which are a core part of our free assessment process, allow engineers to "see inside" the concrete without damaging it.
- Ground Penetrating Radar (GPR): GPR is used to locate reinforcing steel, conduits, and post-tensioning cables within the concrete. It can also help determine concrete cover depth and identify areas of potential delamination or voiding. This is crucial for planning safe concrete removal and ensuring CFRP is applied to a sound substrate.
- Infrared Thermography (IRT): IRT detects subsurface delaminations by measuring temperature differentials on the concrete surface. Delaminated areas heat and cool at a different rate than solid concrete, appearing as distinct thermal anomalies. This allows for rapid, large-scale screening of decks and soffits.
- Half-Cell Potential Testing (ASTM C876): This electrochemical test is used to assess the probability of active corrosion in the reinforcing steel. By measuring the voltage potential between the rebar and a reference electrode on the surface, engineers can create a "corrosion map" of the structure, identifying hotspots that require immediate attention even if no surface damage is visible.
- Impact-Echo Testing: This method uses stress waves to detect flaws within the concrete, such as cracks, voids, and honeycombing. It is also highly effective for measuring the thickness of slabs and walls.
By combining these advanced diagnostics with traditional methods like concrete coring and chloride testing, engineers can build a comprehensive 3D model of the structure's health. This data-driven approach ensures that the CFRP strengthening design is optimized for performance and cost-effectiveness, targeting only the areas that require intervention.
The Role of ACI 440.2R-17 in Ensuring Quality
The American Concrete Institute's "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures" (ACI 440.2R-17) is the industry's cornerstone document for CFRP projects. Adherence to this standard is not just a best practice; it is essential for ensuring the safety, durability, and long-term performance of the repair. A qualified CFRP contractor will base their entire process on these guidelines.
The ACI 440.2R-17 guide provides detailed recommendations covering every phase of a project:
- Design: It outlines the engineering principles and equations for calculating the required amount of CFRP to achieve a specific capacity increase for flexure, shear, and axial loads. It includes critical environmental reduction factors that account for long-term exposure to conditions like moisture and temperature fluctuations.
- Materials: The guide specifies the required properties of the carbon fibers, resins, and protective coatings, ensuring that only high-quality, tested materials are used.
- Installation: It provides explicit instructions for surface preparation (Concrete Surface Profile - CSP), epoxy mixing and application, fiber placement, and curing procedures.
- Quality Assurance/Quality Control (QA/QC): ACI 440.2R-17 mandates specific QA/QC protocols, including pull-off adhesion testing to verify bond strength and visual inspection to ensure an installation free of voids and delaminations. Minimum bond strength is typically specified at 200 psi.
By strictly following these guidelines, engineers and contractors can be confident that the installed CFRP system will perform as designed for decades. When evaluating proposals, building owners should always verify that the contractor's design and installation plan is fully compliant with ACI 440.2R-17.
The CFRP Installation Process for Parking Garages
A typical parking garage CFRP strengthening project follows a systematic process designed to ensure quality and minimize disruption to garage operations:
Phase 1: Structural Assessment (1-2 Weeks)
The project begins with a comprehensive structural assessment. Engineers perform visual inspection, NDT as described above, concrete coring, rebar scanning, chloride testing, and load analysis to determine the extent of deterioration and the required strengthening design. This assessment identifies which elements need CFRP strengthening and what capacity increases are required.
Phase 2: Engineering Design (1-2 Weeks)
Based on the assessment findings, structural engineers design the CFRP strengthening system in accordance with ACI 440.2R-17 guidelines. The design specifies the type, width, thickness, and orientation of CFRP materials for each structural element. Design calculations are stamped by a licensed Professional Engineer.
Phase 3: Surface Preparation (2-5 Days)
Proper surface preparation is critical to CFRP bond performance. Deteriorated concrete is removed, reinforcing steel is cleaned and treated, and the concrete surface is prepared to the specified profile (typically CSP 2-3) using grinding or sandblasting. Any structural concrete repairs are completed before CFRP application.
Phase 4: CFRP Application (3-10 Days)
Carbon fiber materials are applied using a wet layup or precured system, depending on the application. Epoxy adhesive is applied to the prepared concrete surface, CFRP sheets are positioned and saturated, and the system is rolled to remove air voids and ensure full contact. Multiple layers are applied as specified in the design.
Phase 5: Quality Assurance (1-2 Days)
After curing, the CFRP system is tested using pull-off adhesion testing (ASTM D4541) and acoustic tap testing for delamination. Test results are documented and compared against design requirements to verify the installation meets all performance specifications.
Cost Analysis: CFRP vs. Traditional Parking Garage Repair
The economic case for CFRP strengthening in parking garages is compelling. A comprehensive cost comparison reveals significant advantages across multiple dimensions. While a detailed estimate can be provided with our cost calculator, the general benefits are clear.
| Factor | CFRP Strengthening | Traditional Replacement |
|---|---|---|
| Direct Cost | 40-60% less than replacement | 100% (Baseline) |
| Project Duration | 3-6 weeks | 3-12 months |
| Disruption & Revenue Loss | Minimal (phased closures) | Significant (full/partial closure) |
| Design Life | 50+ years | 15-25 years until next repair |
| Added Weight | Negligible | Substantial |
Direct construction costs: CFRP strengthening typically costs 40-60% less than traditional concrete replacement for equivalent structural capacity improvement. For a typical 500-space parking garage, CFRP strengthening might cost $200,000-$500,000, compared to $500,000-$1,500,000 for traditional repair.
Revenue preservation: CFRP installation can be performed with the garage remaining open, typically requiring only partial closures of individual bays during active work. Traditional repair often requires full or partial garage closure for months, resulting in significant lost parking revenue.
Project duration: CFRP projects typically complete in 3-6 weeks, compared to 3-12 months for traditional repair. This compressed timeline reduces indirect costs including project management, traffic control, and temporary parking arrangements.
Long-Term Performance and Maintenance of CFRP Systems
One of the most significant advantages of CFRP is its long-term durability and low maintenance requirements. Unlike steel, carbon fiber is an inert material that does not rust or corrode, even when exposed to salts, chemicals, and moisture. This makes it an ideal solution for the harsh environment of a parking garage.
Once installed and cured, a CFRP system becomes a permanent, integrated part of the structure with a design life exceeding 50 years. The primary maintenance requirement is periodic visual inspection of the system, typically as part of the garage's overall annual structural review. The main goal is to check for any signs of impact damage, delamination, or changes in the appearance of the protective topcoat. If the topcoat is damaged, it can be easily repaired to maintain the system's UV protection and aesthetic appearance. This simple, low-cost inspection routine stands in stark contrast to the cycle of corrosion and repair often associated with traditional concrete and steel structures.
Case Considerations by Climate Zone
Parking garage CFRP strengthening requirements vary significantly by climate zone. In northern states like Michigan, Ohio, Pennsylvania, and New York, the primary drivers are freeze-thaw damage and chloride-induced corrosion from road salt. These garages typically need both flexural strengthening of deteriorated beams and column confinement for salt-exposed columns.
In seismic zones like California and the Pacific Northwest, parking garage CFRP projects often focus on seismic retrofit — improving column ductility and beam-column connection capacity to meet updated seismic codes. Coastal garages in Florida and the Gulf Coast face salt air corrosion and hurricane wind load considerations.
Regardless of climate zone, the fundamental advantages of CFRP — speed, cost-effectiveness, minimal disruption, and corrosion resistance — make it the preferred strengthening method for parking garages nationwide.
Selecting a CFRP Contractor for Parking Garage Work
Choosing the right contractor for parking garage CFRP work is critical. Look for contractors with specific parking garage experience, ACI 440 certified installers, and a track record of projects completed on schedule and within budget. The contractor should provide a comprehensive engineering design stamped by a licensed PE, detailed project schedule with phasing plan, quality assurance testing protocol, and warranty coverage for both materials and workmanship.
