Oklahoma faces one of the most significant bridge infrastructure challenges in the United States. With over 23,000 bridges statewide — more bridges per capita than almost any other state — and approximately 2,300 classified as structurally deficient, the state's bridge repair backlog represents billions of dollars in deferred maintenance. Carbon Fiber Reinforced Polymer (CFRP) strengthening offers a cost-effective, rapid-deployment solution that can address Oklahoma's bridge crisis without the prohibitive cost and timeline of full bridge replacement.
The Scale of Oklahoma's Bridge Problem
Oklahoma's bridge inventory is one of the largest in the nation relative to its population. The state's extensive road network — developed during the oil boom era and expanded during the Interstate Highway System construction of the 1950s–1970s — includes thousands of bridges that have now exceeded their original 50-year design life. According to the American Society of Civil Engineers (ASCE), Oklahoma consistently receives a D+ or lower grade for bridge infrastructure in its state infrastructure report card.
The Oklahoma Department of Transportation (ODOT) manages approximately 6,800 state-owned bridges, while counties and municipalities maintain an additional 16,000+ bridges. Many county-owned bridges were constructed with minimal engineering oversight and have received limited maintenance over their service life. These rural bridges carry agricultural equipment, oil field traffic, and school buses — loads that often exceed the bridges' original design capacity.
The financial challenge is staggering. Full replacement of Oklahoma's 2,300+ structurally deficient bridges would cost an estimated $4–6 billion at current construction prices. With ODOT's annual bridge budget of approximately $200–300 million, traditional replacement approaches would require 15–20+ years to address the current backlog — during which time additional bridges would deteriorate to deficient status.
Why Oklahoma Bridges Deteriorate
Several factors unique to Oklahoma accelerate bridge deterioration beyond normal aging:
Induced Seismicity
Oklahoma has experienced a dramatic increase in earthquake activity since 2009, with thousands of earthquakes linked to wastewater injection from oil and gas operations. While most earthquakes are small (magnitude 2.0–4.0), the cumulative effect of repeated seismic events causes progressive micro-cracking in concrete bridge elements, loosens connections, and accelerates deterioration. Bridges not designed for seismic loads are particularly vulnerable.
Freeze-Thaw Cycling
Oklahoma's climate produces significant freeze-thaw cycling, with winter temperatures frequently crossing the 32°F threshold. Water that infiltrates concrete cracks expands when frozen, progressively widening cracks and causing spalling. Bridge decks and exposed structural elements are particularly susceptible because they lose heat from both top and bottom surfaces.
Overweight Vehicles
Oklahoma's energy sector generates heavy truck traffic that frequently exceeds posted bridge weight limits. Oil field equipment, drilling rigs, and overweight agricultural loads create fatigue damage in bridge beams and girders, accelerating structural deterioration beyond what normal traffic would produce.
Deicing Salt Damage
Winter deicing operations introduce chlorides to bridge decks and structural elements. These chlorides penetrate concrete and initiate corrosion of reinforcing steel, causing internal expansion that cracks and spalls the concrete cover. Once corrosion begins, deterioration accelerates exponentially without intervention.
The Economic Ripple Effect of Deficient Bridges
Structurally deficient bridges are more than just a safety concern; they are a significant drag on Oklahoma's economy. When a bridge is load-posted (i.e., restricted from carrying legal weight limits), it sets off a chain reaction of economic consequences. In a state where agriculture and energy are economic cornerstones, these impacts are particularly acute. Rerouting heavy trucks around these bridges increases fuel consumption, labor hours, and vehicle wear-and-tear. A 15-mile detour can add thousands of dollars in operational costs for a single truck over a year, costs that are ultimately passed on to consumers.
For Oklahoma's agricultural sector, load-posted bridges can isolate farms, making it difficult and expensive to get products to market. This leads to lost revenue and decreased competitiveness. Furthermore, emergency vehicles are often too heavy for these bridges, and detours can add critical minutes to response times. According to a study by the Kansas University Transportation Center, the economic impact of closing a single rural bridge can range from $20,000 to over $200,000 per year. For Oklahoma, with over 2,300 deficient bridges, the cumulative economic impact is likely in the hundreds of millions of dollars annually.
Adherence to ACI 440.2R-17: The Gold Standard in CFRP Design
The American Concrete Institute's "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures" (ACI 440.2R-17) is the authoritative standard for CFRP design and installation. Adherence to this guide is critical for ensuring the safety, quality, and long-term performance of CFRP bridge repairs. It provides detailed procedures for material qualification, structural design, surface preparation, installation, and quality control. By adhering to ACI 440.2R-17, engineers and contractors ensure that CFRP repairs are executed to the highest standards.
How CFRP Strengthening Addresses Oklahoma's Bridge Crisis
CFRP strengthening provides a fundamentally different approach to bridge rehabilitation compared to traditional methods. Rather than replacing entire bridge structures — a process that takes months to years and costs millions per bridge — CFRP strengthening restores and enhances the load-carrying capacity of existing bridge elements in days to weeks at a fraction of the cost.
Beam and Girder Strengthening

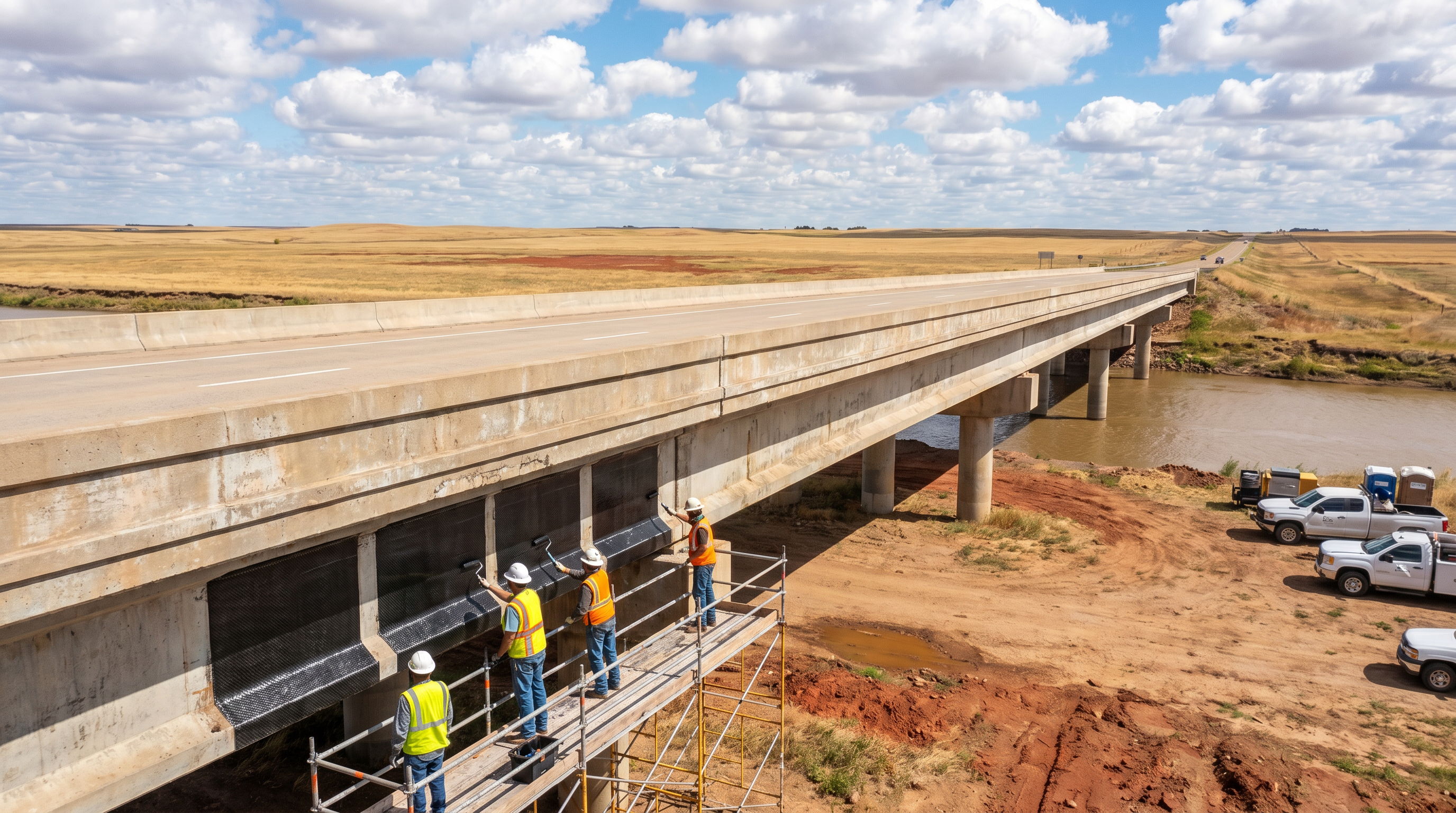

The most common CFRP application for Oklahoma bridges is flexural strengthening of concrete beams and girders. CFRP laminates bonded to the tension face of bridge beams increase the moment capacity, restoring or exceeding the original load rating. This application is particularly effective for bridges where beam deterioration has reduced load ratings below legal truck weights, requiring posting of weight restrictions that force detours for heavy vehicles.
A typical Oklahoma bridge beam strengthening project can restore a posted bridge to full legal load rating in 2–5 days of installation time, compared to 6–12 months for beam replacement. The cost savings are equally dramatic — CFRP beam strengthening typically costs 30–50% less than beam replacement while achieving equivalent or superior structural performance.
Column and Pier Strengthening
For Oklahoma bridges in areas of induced seismicity, CFRP column wrapping provides critical seismic retrofit capability. Column confinement with CFRP increases both the shear capacity and ductility of bridge piers, allowing them to withstand earthquake forces that exceed their original design capacity. This application is essential for bridges along I-35, I-44, and I-40 corridors that pass through Oklahoma's most seismically active zones.
Advanced Application Techniques
Beyond standard applications, advanced techniques like Near-Surface Mount (NSM) CFRP, where a CFRP bar is placed in a groove cut into the concrete, offer superior bond strength and protection. Prestressed CFRP systems, which are tensioned before being bonded, introduce a compressive force that actively counteracts tensile forces from traffic loads, making them highly effective for long-span bridges.
Case Study: A Rural Oklahoma Bridge Revitalized
A 60-foot concrete girder bridge in Payne County, built in the 1960s, was load-posted at 15 tons due to heavy agricultural traffic, forcing grain trucks into a 12-mile detour. A CFRP solution, designed per ACI 440.2R-17, involved repairing deteriorated concrete, applying externally bonded CFRP laminates for flexural strength, and adding CFRP U-wraps for shear capacity. The project was completed in five days for $85,000, a fraction of the $750,000 replacement cost. The load posting was removed, restoring a vital transportation link for the local agricultural community.
Cost Comparison: CFRP vs. Bridge Replacement
| Factor | CFRP Strengthening | Full Replacement |
|---|---|---|
| Typical Cost per Bridge | $50,000 – $300,000 | $500,000 – $5,000,000+ |
| Installation Time | 2–10 days | 6–18 months |
| Traffic Disruption | Minimal (often single-lane) | Full closure typical |
| Service Life Extension | 25–50+ years | 75 years (new design life) |
| Environmental Impact | Minimal waste | Significant demolition waste |
| Bridges Addressed per $1M | 3–20 bridges | 0.2–2 bridges |
The cost efficiency of CFRP strengthening means that Oklahoma could address 5–10x more deficient bridges per budget dollar compared to full replacement. For a state with 2,300+ deficient bridges and limited annual funding, this multiplier effect is transformative.
ODOT and Federal Funding Compatibility
CFRP strengthening is an approved repair method under ODOT bridge standards and is eligible for federal bridge funding through the Highway Bridge Program and the Infrastructure Investment and Jobs Act (IIJA). The 2021 IIJA allocated significant new funding for bridge repair nationwide, with Oklahoma receiving increased allocations based on its high percentage of deficient bridges. CFRP strengthening projects qualify for these federal funds, allowing Oklahoma to leverage federal dollars more efficiently by repairing more bridges per dollar allocated.
CFRP Repair's Oklahoma Bridge Experience
CFRP Repair provides bridge strengthening services throughout Oklahoma, with rapid mobilization from our headquarters. Our engineering team is familiar with ODOT bridge standards, load rating procedures, and the specific challenges facing Oklahoma's bridge inventory. We work with county engineers, ODOT district offices, and consulting engineers to develop cost-effective CFRP strengthening solutions for Oklahoma bridges of all types and sizes.
For Oklahoma bridge owners — whether state, county, or municipal — CFRP strengthening represents the most practical path to addressing the state's bridge infrastructure crisis within realistic budget and timeline constraints.
