Coastal High-Rise Concrete Repair with CFRP

The Coastal High-Rise Challenge

Coastal high-rise buildings face a relentless assault from their environment. Salt-laden air, driven by ocean winds, penetrates concrete surfaces and accelerates chloride-induced corrosion of reinforcing steel at rates 3-5 times faster than inland structures. Combined with high wind loads, thermal cycling, and the increasing intensity of coastal storms, these buildings experience structural deterioration that demands innovative repair solutions.

The problem is particularly acute in major coastal cities. In Miami, Fort Lauderdale, and Tampa, thousands of high-rise condominiums and commercial buildings built during the construction booms of the 1970s through 1990s are now reaching the age where significant structural rehabilitation is needed. Similar challenges face buildings along the Atlantic seaboard from Virginia Beach to Boston, and along the Pacific coast from San Diego to Seattle.

The tragic collapse of Champlain Towers South in Surfside, Florida in 2021 brought national attention to the urgency of coastal high-rise structural maintenance. In the aftermath, Florida enacted sweeping structural inspection requirements, and other coastal states have followed with enhanced building safety legislation. Building owners and managers now face both the moral imperative and legal obligation to address structural deterioration proactively.

How Salt Air Damages Concrete Structures

Understanding the deterioration mechanism is essential for developing effective repair strategies. In coastal environments, the primary degradation pathway begins with airborne chloride deposition. Ocean spray and salt-laden wind deposit chloride ions on exposed concrete surfaces. These ions penetrate the concrete through a combination of diffusion, capillary absorption, and pressure-driven flow.

The rate of chloride penetration depends on several factors: concrete quality and permeability, cover depth over reinforcing steel, exposure severity (splash zone vs. atmospheric), and the presence of cracks or construction defects. In typical coastal conditions, chloride concentrations at the rebar level can exceed the corrosion threshold within 10-20 years, even in well-constructed buildings.

Once corrosion initiates, the expansive rust products create internal pressure that cracks the concrete cover, creating pathways for accelerated moisture and chloride ingress. This positive feedback loop can rapidly escalate from minor surface cracking to significant structural section loss. In balcony slabs, parking levels, and other exposed elements, corrosion-induced deterioration can reduce structural capacity by 20-40% within a decade of initiation.

Advanced Diagnostics for Coastal Structures

Before an effective repair strategy can be designed, a thorough diagnosis of the building's condition is paramount. While visual inspection and hammer sounding are foundational, modern non-destructive testing (NDT) methods provide a much deeper understanding of the extent and severity of deterioration. These techniques, recommended by ACI guidelines, allow engineers to pinpoint issues without damaging the structure.

• Ground Penetrating Radar (GPR): This technique is used to determine the concrete cover over reinforcing steel, locate rebar patterns, and identify voids or delamination within the concrete. It provides a "blueprint" of the internal structure, which is critical for planning precise repairs.
• Infrared Thermography: By detecting subtle temperature variations on the concrete surface, infrared cameras can identify areas of delamination or subsurface voids where water has intruded. This is highly effective for quickly scanning large areas like facades and balcony slabs.
• Half-Cell Potential Testing (ASTM C876): This electrochemical test measures the likelihood of active corrosion in the reinforcing steel. By creating a map of potential readings across a concrete surface, engineers can identify "hot spots" of corrosion activity that may not yet be visible.

Employing these advanced diagnostics allows for a surgical approach to repair, ensuring that resources are focused on the areas of greatest need and preventing future problems. It moves the process from reactive patching to proactive, data-driven structural rehabilitation.

Why CFRP Is Ideal for Coastal High-Rise Repair

Carbon fiber reinforced polymer systems offer several critical advantages for coastal high-rise repair that traditional methods cannot match:

Corrosion Immunity

Unlike steel reinforcement, carbon fiber is completely immune to chloride-induced corrosion. This is perhaps the most significant advantage in coastal environments. When CFRP is used to strengthen a deteriorated member, the repair itself will never corrode, eliminating the cycle of repeated repairs that plagues traditional steel-based rehabilitation approaches. This directly addresses the root cause of coastal structural failure.

Lightweight Application

High-rise repair presents unique logistical challenges. Materials must be transported vertically, often through occupied buildings, and applied in confined spaces with limited staging area. CFRP materials weigh approximately 1/5 as much as equivalent steel reinforcement, making them dramatically easier to transport and install in high-rise environments. A roll of carbon fiber fabric that provides equivalent strengthening to a steel plate can be carried by a single worker up a stairwell.

Minimal Structural Impact

CFRP sheets are typically 1-3mm thick, adding negligible weight and dimension to the structure. This is critical in high-rise buildings where additional dead load from repairs must be carefully considered in the overall structural analysis. Traditional repair methods that add significant concrete or steel mass may require strengthening of supporting elements below — a cascading effect that multiplies cost and complexity.

Rapid Installation

In occupied high-rise buildings, minimizing disruption to residents and tenants is a priority. CFRP installation is significantly faster than traditional repair methods, with individual elements typically completed in 1-2 days. The process generates minimal noise, dust, and vibration compared to concrete demolition and steel installation.

The CFRP Application Process: A Step-by-Step Guide

A successful CFRP strengthening project relies on meticulous surface preparation and strict adherence to installation protocols outlined in ACI 440.2R-17. The process ensures a durable, monolithic bond between the CFRP system and the existing concrete structure.

1. Concrete Repair and Preparation: All deteriorated or unsound concrete is removed. The exposed reinforcing steel is cleaned of all corrosion and, if section loss is significant, supplemented with new steel. The area is then repaired with a high-strength, polymer-modified repair mortar.
2. Surface Profiling: The concrete surface where the CFRP will be applied is mechanically abraded (typically by grinding) to remove any laitance or contaminants and create a clean, open-pored surface. This is critical for achieving a strong bond.
3. Primer Application: A low-viscosity epoxy primer is applied to the prepared concrete surface. This primer penetrates the concrete pores, sealing the surface and creating a high-strength substrate for the subsequent layers.
4. Saturant and Fabric Application: A high-strength epoxy saturant (or putty) is applied. The carbon fiber fabric is then carefully placed into the wet saturant and pressed into the resin, ensuring full impregnation of the fibers. Multiple layers can be applied to achieve the required design strength.
5. Final Coating: A final topcoat is applied to protect the CFRP system from UV exposure and provide a uniform, aesthetically pleasing finish that can be painted to match the surrounding structure.
6. Quality Control and Inspection: Throughout the process, rigorous quality control checks are performed, including monitoring environmental conditions (temperature, humidity), verifying epoxy mix ratios, and conducting bond tests to confirm adhesion strength.

Common CFRP Applications in Coastal High-Rises

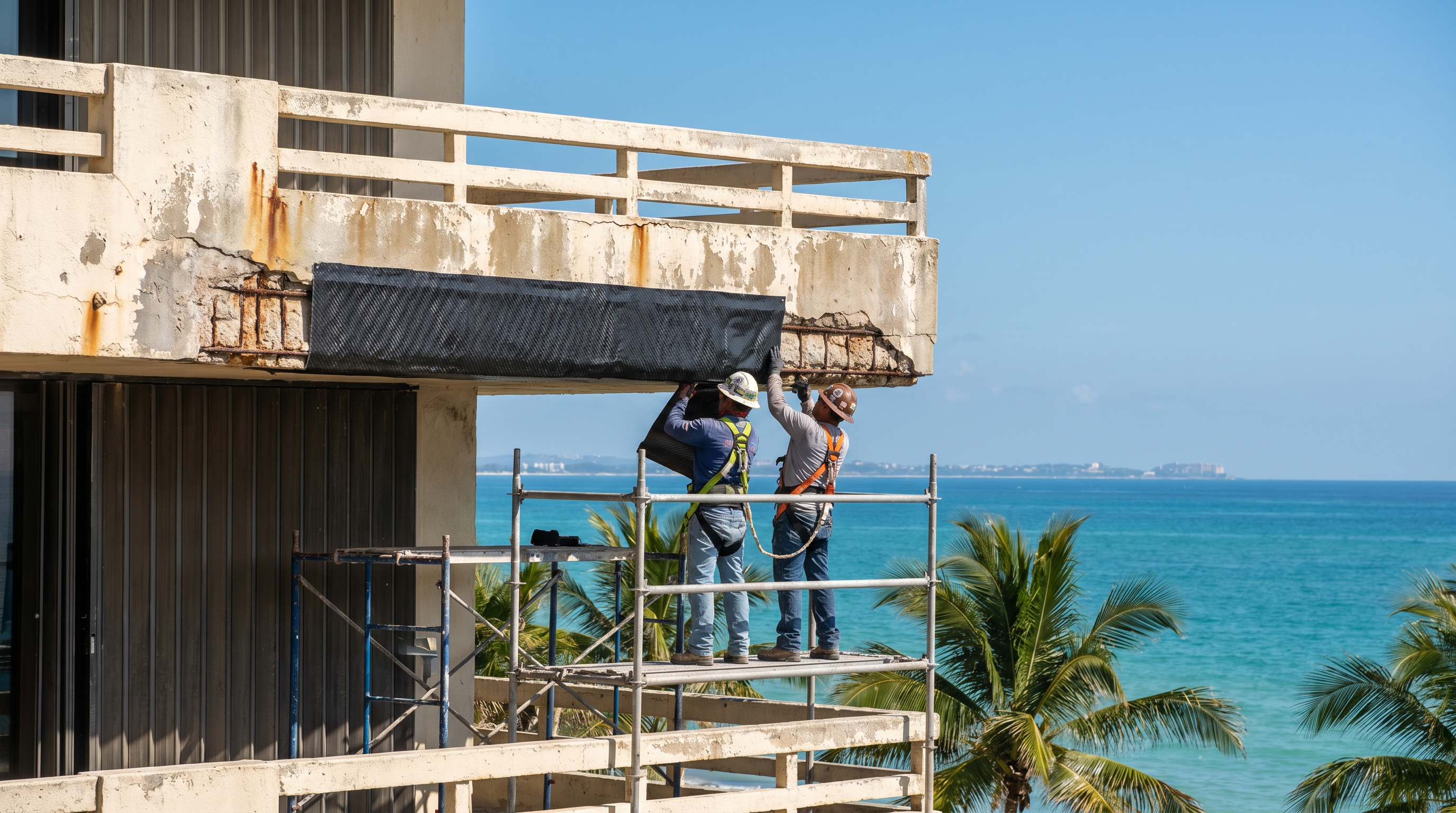

Balcony Slab Strengthening

Balconies are among the most vulnerable elements in coastal high-rises. Exposed to direct weather on all sides, balcony slabs experience accelerated deterioration. CFRP strips applied to the underside of balcony slabs can restore and enhance flexural capacity, often allowing the balcony to be returned to full service without the need for complete slab replacement.

Beam and Girder Rehabilitation

Transfer beams and girders in high-rise structures carry enormous loads and are critical to building safety. When these elements experience corrosion-related section loss, CFRP strengthening can restore their capacity without the need for temporary shoring of the floors above — a significant advantage in occupied buildings.

Column Wrapping

Ground-level and parking-level columns in coastal buildings are particularly susceptible to salt spray damage. CFRP column wrapping increases both axial capacity and confinement, improving the column's ability to resist both gravity loads and lateral forces from wind or seismic events. This is a key application for enhancing hurricane and seismic resilience.

Shear Wall Strengthening

In high-rise buildings where shear walls have been compromised by corrosion or where increased wind load capacity is needed (due to updated building codes or adjacent construction), CFRP can be applied to shear wall surfaces to increase both shear and flexural capacity.

Long-Term Performance in Marine Environments

A primary concern for any structural repair system in a coastal zone is long-term durability. Extensive research and real-world applications have demonstrated the exceptional performance of CFRP in harsh marine environments. Studies have shown that after 75 years of exposure, CFRP laminates can retain over 75% of their tensile strength, a figure that far exceeds the performance of traditional materials. The ACI 440.2R-17 guide provides specific environmental reduction factors to be used in design calculations, ensuring a conservative and safe design that accounts for any potential long-term degradation. This data-backed confidence in longevity is a key reason why engineers are increasingly specifying CFRP for critical coastal infrastructure.

Financial Analysis: Total Cost of Ownership

While the per-square-foot cost of CFRP materials may be comparable to or slightly higher than traditional repair materials, the total project cost is typically 30-50% lower. A true financial analysis requires looking beyond the initial bid to the total cost of ownership over the building's life cycle.

For condominium associations, the ability to complete repairs with minimal disruption to residents can be the deciding factor. A CFRP repair that takes 4-6 weeks versus a traditional repair that takes 6-12 months represents an enormous quality-of-life benefit that translates directly into property value preservation.

Regulatory Landscape for Coastal Buildings

The regulatory environment for coastal high-rise buildings has evolved significantly in recent years. Florida's SB 4-D, enacted after the Surfside tragedy, requires milestone structural inspections at 25 years for buildings within 3 miles of the coast (30 years for others), with subsequent inspections every 10 years. Buildings that fail inspection must develop and execute a structural repair plan within specified timeframes.

Similar legislation has been enacted or proposed in other coastal states. New York, New Jersey, California, and Virginia have all strengthened their structural inspection requirements for aging buildings. These regulations create both urgency and opportunity for building owners to address structural deficiencies using modern methods like CFRP.

Getting Started with Coastal High-Rise CFRP Repair

If your coastal high-rise building is approaching its milestone inspection, showing signs of concrete deterioration, or has been cited for structural deficiencies, CFRP strengthening should be evaluated as a repair option. CFRP Repair provides free preliminary structural assessments for coastal buildings and can work with your building's engineer of record to develop a comprehensive CFRP strengthening plan. Contact us today to discuss your building's needs and learn how CFRP can protect your investment for decades to come.
