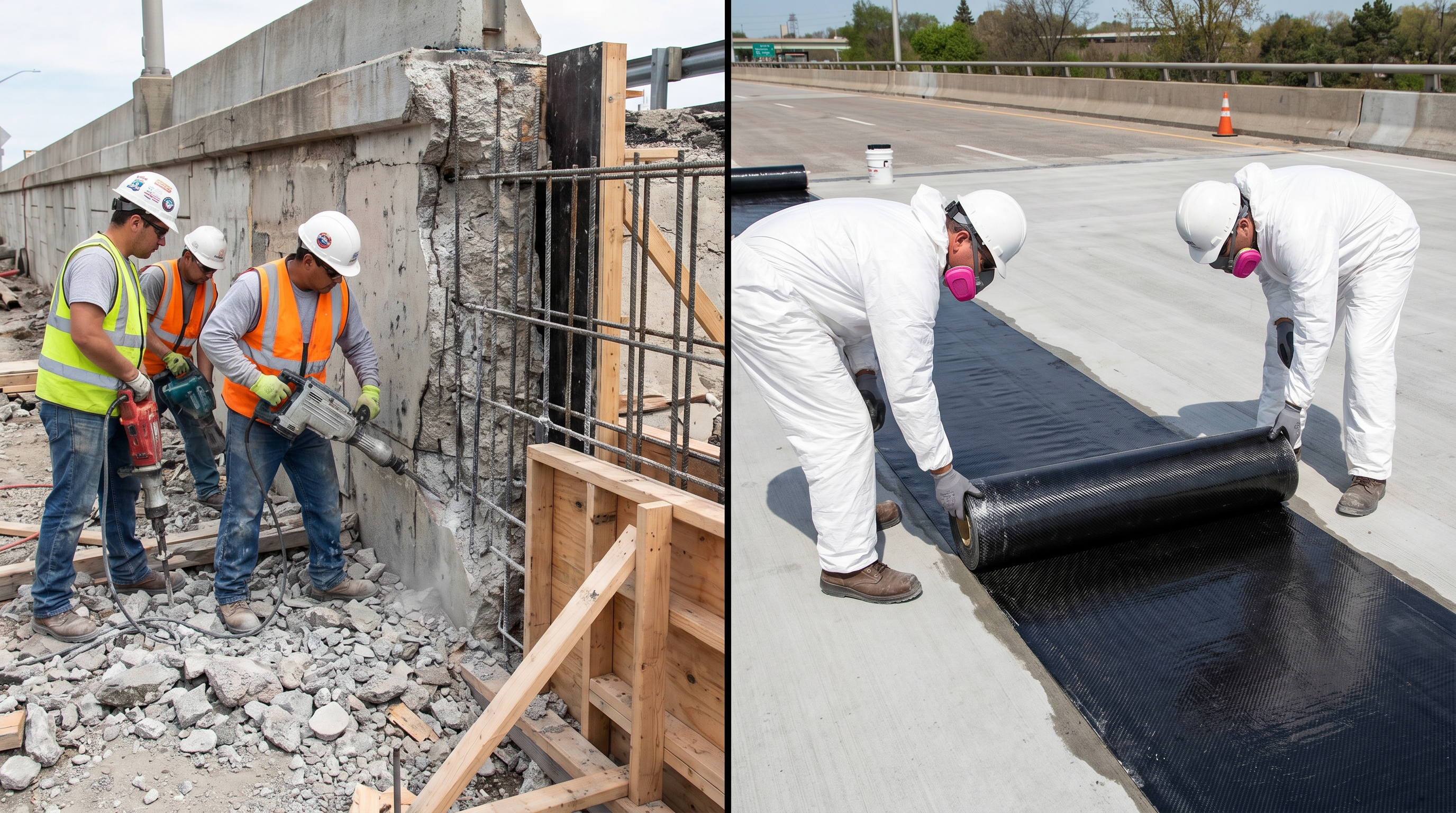

When a concrete or steel structure shows signs of distress, requires a capacity upgrade for a change of use, or needs seismic retrofitting, owners and engineers face a critical decision. Choosing the right structural strengthening method is a complex balancing act between performance, total project cost, installation speed, and long-term durability. This guide provides the most comprehensive, head-to-head comparison of Carbon Fiber Reinforced Polymer (CFRP) against the three most common traditional methods: bonded steel plates, section enlargement (concrete jacketing), and external post-tensioning.
While traditional methods have been used for decades, modern composite materials like CFRP now offer a superior alternative for a vast majority of strengthening applications. We will delve deep into the technical specifications, real-world scenarios, cost-benefit analyses, and project timelines to equip you with the knowledge needed to make the most informed decision for your asset.
Deep Dive: The Four Primary Strengthening Methods
Understanding the fundamental principles, advantages, and limitations of each technique is the first step in the selection process. Each method has a role, but as we will explore, the role of traditional methods is becoming increasingly niche.
1. CFRP Strengthening Systems
CFRP systems leverage the phenomenal tensile strength of carbon fibers—materials stronger than steel at a fraction of the weight. These fibers are encapsulated in a high-performance epoxy matrix and bonded to the exterior of existing structural elements. The system works by sharing load with the original structure; as the element deflects under load, the bonded CFRP is engaged, and its high tensile capacity provides the required additional strength.
- Forms: Available as flexible, saturated-on-site fabrics (wet layup) for complex geometries, pre-cured rigid laminates for high-stiffness flexural strengthening, and near-surface mounted (NSM) bars for applications requiring higher bond capacity.
- Mechanism: Adds significant tensile capacity for flexural and shear strengthening or provides external confinement pressure for columns, dramatically increasing their axial and seismic capacity.
- Impact: Adds less than 1/8 inch (3mm) to the structure, is corrosion-proof, and can be installed in days with minimal disruption, often while the building remains occupied.
2. Steel Plate Bonding
A once-common technique, steel plate bonding involves attaching steel plates to a structural element with epoxy and/or mechanical anchors (bolts). The principle is similar to CFRP: provide external tensile reinforcement. However, the physical properties of steel create significant drawbacks that have led to its decline in popularity.
- Challenges: Steel is extremely heavy, requiring cranes or heavy lifting equipment for installation. It is highly susceptible to corrosion, which can compromise the bond and the plate itself, necessitating costly ongoing maintenance and protective coatings. The plates are also difficult to form to complex shapes and add significant dead load to the structure.
3. Section Enlargement (Concrete Jacketing)
This is the most traditional and brute-force method. It involves adding a new layer of rebar and shotcrete or cast-in-place concrete around the existing element to increase its size and, consequently, its capacity. While effective at adding substantial strength, it comes at a tremendous cost in terms of disruption, space, and time.
- Impact: This method is incredibly disruptive, requiring extensive formwork, concrete pumps, and a long curing period (typically 28 days). It adds significant size (4-8 inches or 100-200mm per face) and dead load, reducing usable space and potentially overloading the foundations. It is the antithesis of a minimal-intervention approach.
4. External Post-Tensioning (PT)
External PT involves running high-strength steel tendons or bars along the exterior of a beam or girder. These tendons are then tensioned with hydraulic jacks, creating a compressive force in the concrete that actively counteracts the tensile forces from applied loads. It is an "active" strengthening system, as it applies a force to the structure.
- Complexity: This method requires specialized hardware for anchorage and deviation, and the exposed steel tendons need robust corrosion protection systems. It adds significant visual bulk and can be an obstruction. While effective for long-span bridges, it is often too complex and invasive for typical building applications.
10-Criteria Head-to-Head Comparison Analysis
A simple "pro vs. con" list is insufficient for a decision of this magnitude. Below, we analyze the methods across ten critical performance and project-impact criteria. This detailed analysis reveals a clear pattern of CFRP superiority in most practical scenarios.
| Criteria | CFRP Systems | Steel Plate Bonding | Section Enlargement | External Post-Tensioning |
|---|---|---|---|---|
| 1. Strength-to-Weight Ratio | Exceptional. >10x stronger than steel by weight. Adds strength with virtually no added dead load. | Poor. Steel is dense and heavy, adding significant dead load that must be accounted for in the design. | Very Poor. Concrete is extremely heavy, adding massive dead load that can require foundation strengthening. | Fair. High-strength steel tendons are efficient but the anchorage hardware adds considerable weight. |
| 2. Installation Speed & Disruption | Extremely Fast. Minimal noise, dust, or vibration. No heavy equipment. Building can often remain occupied. | Slow. Requires cranes, welding, and bolting. High noise levels and disruption. | Extremely Slow. The most disruptive method by far, involving demolition, formwork, and a multi-week cure time. | Slow. Requires specialized jacking equipment and careful, staged tensioning operations. |
| 3. Durability & Corrosion Resistance | Excellent. CFRP is inert and does not corrode. Ideal for harsh, corrosive, or coastal environments. 50+ year lifespan. | Poor. Highly susceptible to corrosion, which compromises both the steel and the bond interface. Requires ongoing maintenance. | Fair. The new concrete is durable, but the interface between old and new concrete can be a weak point for moisture ingress. | Poor to Fair. Tendons require complex, expensive corrosion protection systems (e.g., greased and sheathed) that are a common failure point. |
| 4. Geometric Versatility | Excellent. Wet layup fabrics can conform to virtually any shape (beams, columns, slabs, joints, curved surfaces). | Poor. Steel plates are rigid and difficult to fabricate for complex or curved geometries. | Fair. Can be formed around most shapes, but complexity dramatically increases cost and difficulty. | Poor. Only suitable for linear elements like beams and girders. |
| 5. Clearance & Aesthetics | Excellent. Adds <1/8" (3mm) profile. Can be painted over, leaving it virtually invisible. Preserves architectural character. | Poor. Adds 1/4" to 1/2" (6-12mm) or more, plus bolt heads. Creates an industrial, visually intrusive look. | Very Poor. Drastically reduces clearance and changes dimensions. Unacceptable for many applications (e.g., parking garages). | Poor. Tendons and anchorages are bulky and visually obtrusive. |
| 6. Fire Resistance | Fair. The epoxy matrix can soften at high temperatures (~150-200°F). Requires specialized coatings or insulation for fire ratings. | Good. Steel itself performs well in fire, though the bonding epoxy is a weak point. | Excellent. Concrete has inherent, excellent fire-resistant properties. | Good. Steel tendons perform well, but are a critical load path that must be protected. |
| 7. Seismic Performance | Excellent. Ideal for seismic retrofits. Adds immense strength and ductility (especially in column confinement) without adding mass. | Poor. Adds stiffness but not ductility. The added weight increases the seismic load on the structure. | Fair. Can improve performance but adds significant mass, which increases the seismic forces the structure must resist. | Poor. Not typically used for seismic applications as it does not enhance ductility. |
| 8. Long-Term Maintenance | None. The system is inert and requires no maintenance beyond inspection of the topcoat if in a high-traffic area. | High. Requires regular inspection and re-application of corrosion-inhibiting coatings. | Low. Requires periodic crack inspection, similar to any concrete structure. | High. The corrosion protection system for the tendons and anchorages must be diligently maintained. |
| 9. Total Project Cost (Lifecycle) | Low to Moderate. Higher material cost is more than offset by savings in labor, equipment, time, and zero maintenance. Best ROI. | Moderate to High. Lower material cost is negated by high labor, equipment, and long-term maintenance costs. | High to Very High. Highest cost due to extreme labor, materials, and disruption. | High. High material, specialized labor, and maintenance costs. |
| 10. Sustainability | Good. Extends the life of existing structures, avoiding demolition and rebuild. Low energy in transport and installation. | Poor. Steel production is energy-intensive. Heavy weight increases transport emissions. | Very Poor. Cement production is a primary driver of global CO2 emissions. High waste from demolition. | Poor. High-energy steel production and transport emissions. |
Decision Matrix: When to Use Each Method
Based on the detailed analysis, a clear decision framework emerges. This matrix provides practical guidance for engineers and asset managers.
- Choose CFRP Strengthening When:
- The building must remain operational during the repair (e.g., hospitals, offices, data centers).
- Maintaining clearances is critical (e.g., parking garages, low-ceiling basements).
- The structure is in a corrosive environment (e.g., coastal areas, industrial plants, bridges).
- The project schedule is tight and rapid installation is required.
- The structural elements have complex or curved geometry.
- The goal is a seismic retrofit without adding mass.
- Lowest lifecycle cost and highest ROI are the primary financial drivers.
- Consider Section Enlargement Only When:
- A massive increase in capacity is needed that is beyond the limits of bonded systems.
- The existing concrete is so deteriorated that it must be removed and replaced anyway.
- A high fire rating is required and cannot be achieved with coatings.
- Loss of space and massive disruption are acceptable project constraints.
- Consider Steel Plate Bonding Only When:
- The project is extremely small and simple (e.g., a single, straight beam).
- The labor force is unfamiliar with composites but expert in steel fabrication and welding.
- Long-term maintenance for corrosion is already budgeted and planned.
- (In most cases, CFRP is now the superior choice over steel plates).
- Consider External Post-Tensioning Only When:
- Strengthening very long-span beams or bridges (>60 feet).
- An "active" strengthening system that lifts the structure is required to correct major deflection.
- The visual intrusion and complexity of the anchorage systems are acceptable.
Real-World Scenarios: Application in Practice
Scenario 1: Parking Garage Beam Repair
Problem: A 1980s parking garage shows flexural cracking and corrosion-induced spalling on several beams due to de-icing salt exposure. The garage must remain partially operational.
Analysis: Section enlargement would reduce already-low head clearance. Steel plates would corrode again rapidly. External PT is too invasive. CFRP is the clear winner. It adds no weight, doesn't corrode, restores capacity, and can be installed with minimal impact on garage operations. The low profile is essential for maintaining vehicle clearance.
Scenario 2: High-Rise Seismic Column Retrofit
Problem: A 20-story concrete frame building in a high seismic zone needs a column retrofit to meet modern ductility standards.
Analysis: Section enlargement would add immense weight, increasing the seismic forces on the foundation—a counterproductive outcome. A full CFRP column wrap provides the required confinement, increasing both shear strength and ductility without adding any significant mass. The installation is fast and can be done floor-by-floor inside an occupied building.
Scenario 3: Warehouse Change of Use (Slab Strengthening)
Problem: A warehouse with a concrete slab-on-grade is being converted to a manufacturing facility with heavy equipment, requiring a significant load capacity upgrade.
Analysis: Replacing the slab is prohibitively expensive and time-consuming. A concrete overlay would work but requires weeks of downtime. A grid of CFRP laminates bonded to the slab's surface can provide the necessary flexural strengthening in a matter of days, allowing the new equipment to be moved in on schedule. The process is dust-free and compatible with existing floor coatings.
Timeline & Cost Comparison: A Tale of Two Projects
To illustrate the profound impact on project delivery, let's compare a typical beam strengthening project for a 10,000 sq ft area using CFRP versus the most disruptive traditional method, section enlargement.
CFRP Strengthening Timeline: 7 Days
- Day 1: Mobilization & Surface Prep (Grinding)
- Day 2: Primer Application & Putty for Profile Smoothing
- Day 3: CFRP Fabric Saturation & Application
- Day 4: Second Layer Application (if required) & Top Coat
- Day 5: Quality Control, Inspection & Testing
- Day 6-7: Cure Time (can accept light traffic) & Demobilization
Total Project Cost Estimate: $80,000 - $120,000
Section Enlargement Timeline: 8 Weeks
- Week 1: Mobilization, Shoring Installation, Concrete Chipping
- Week 2: Formwork Installation & Rebar Placement
- Week 3: Concrete Pouring (Shotcrete/Cast)
- Week 4-7: CONCRETE CURING (28 DAYS - NO WORK)
- Week 8: Formwork & Shoring Removal, Site Cleanup, Demobilization
Total Project Cost Estimate: $250,000 - $400,000+
The data is stark. The CFRP solution is not just marginally better; it represents a complete paradigm shift in project efficiency. It delivers the required structural performance in a fraction of the time, at a fraction of the cost, and with a fraction of the disruption. For any asset owner, the choice to minimize downtime and save over 60% on project costs is a simple one.
Conclusion: The Clear Choice for Modern Strengthening
While traditional methods like section enlargement and external post-tensioning still have a few niche applications, the evidence is overwhelming. For the vast majority of structural strengthening projects—from flexural and shear upgrades to column confinement and seismic retrofitting—CFRP systems offer an objectively superior solution. The combination of high strength, low weight, rapid installation, and exceptional durability provides unmatched value.
By choosing CFRP, you are not just selecting a material; you are choosing a modern, efficient construction process that minimizes risk, saves money, and extends the life of your valuable assets for decades to come. Before you default to the slow, disruptive, and costly traditional methods, contact a specialized CFRP engineering firm to evaluate how composite technology can benefit your project.
