Parking Garage CFRP Guide: Repair & Strengthening

Parking garages are relentless workhorses of the urban environment, enduring a daily onslaught of stressors far exceeding those of typical commercial structures. The combination of constant dynamic vehicle loads, exposure to corrosive de-icing salts, relentless water intrusion, and punishing freeze-thaw cycles creates a uniquely aggressive environment that accelerates the degradation of conventional steel-reinforced concrete. This continuous assault compromises structural integrity, leading to safety concerns and costly maintenance cycles. Carbon Fiber Reinforced Polymer (CFRP) has emerged as a transformative solution, offering a technologically advanced, durable, and minimally invasive method to not only repair this damage but also to significantly enhance the strength and longevity of these vital infrastructure assets.

The Lifecycle of Deterioration in Parking Structures

The deterioration of a parking garage is not a sudden event but a progressive lifecycle fueled by its environment. Understanding this process is key to timely and effective intervention. The cycle typically begins with the ingress of water and chlorides, which sets off a chain reaction of degradation.

1. Initiation Phase: Chloride ions from de-icing salts or coastal air penetrate the porous concrete, eventually reaching the depth of the steel reinforcement. Initially, the steel is protected by a passive layer created by the high alkalinity of the concrete. However, as chlorides accumulate, they break down this protective layer.
2. Propagation Phase: Once the passive layer is compromised, corrosion of the reinforcing steel begins. The corrosion process is an expansive one—the byproducts (rust) can occupy up to ten times the volume of the original steel. This expansion creates immense internal pressure within the concrete.
3. Deterioration Phase: The internal pressure from corroding steel leads to cracking, delamination (separation of concrete into layers), and spalling (chipping or breaking away) of the concrete cover. This exposes more of the steel to the elements, accelerating the corrosion process and leading to significant loss of the steel's cross-sectional area, which directly compromises the structure's load-carrying capacity.

Common Deterioration Indicators and Timelines

Advanced Diagnostics: Beyond Visual Inspection

While visual inspection is the first step, a comprehensive assessment of a parking garage requires more advanced diagnostic techniques to understand the extent of unseen damage. Structural engineers employ a range of non-destructive testing (NDT) methods to get a clear picture of the garage's health.

• Ground-Penetrating Radar (GPR): GPR is used to map the location and depth of reinforcing steel, post-tensioning tendons, and electrical conduits within the concrete. It can also help identify areas of delamination and voiding.
• Infrared Thermography: This technique detects temperature differentials on the concrete surface, which can indicate areas of subsurface delamination or water intrusion.
• Half-Cell Potential Testing: This electrochemical test is used to assess the probability of active corrosion of the reinforcing steel. It helps identify corrosion hotspots that may not yet be visible.
• Chloride Ion Content Testing: Core samples are taken from the structure and analyzed in a lab to determine the concentration of chloride ions at various depths. This data is crucial for predicting the remaining service life of the structure.

CFRP vs. Traditional Repair Methods: A Comparative Analysis

While traditional methods like section enlargement or steel plate bonding have been used for decades, CFRP offers a superior solution for the unique challenges of parking garages. The following table provides a direct comparison:

Designing for Durability: The ACI 440.2R-17 Standard

The design and application of CFRP systems are governed by the American Concrete Institute's "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures" (ACI 440.2R-17). This critical document provides engineers with a framework for designing safe and durable CFRP repairs. Key considerations from the standard include:

• Substrate Preparation: The standard emphasizes the importance of a clean, dry, and sound concrete substrate to ensure a strong bond between the CFRP and the concrete. The concrete tensile strength must be a minimum of 200 psi.
• Environmental Reduction Factors: ACI 440.2R-17 specifies environmental reduction factors that account for long-term exposure to conditions like humidity, salt water, and freeze-thaw cycles. For a parking garage environment, these factors ensure the design accounts for the aggressive exposure over the life of the repair.
• Creep and Fatigue: The guide provides methodologies to account for long-term sustained loads (creep) and the cyclic nature of vehicle loading (fatigue), ensuring the CFRP system can withstand the specific demands of a parking structure.

Parking Garage CFRP Applications

Beam Strengthening

Parking garage beams commonly require both flexural and shear strengthening. CFRP laminates applied to the beam soffit increase flexural capacity, while U-wraps applied to the beam sides provide additional shear reinforcement. This combination addresses the two most common beam deficiencies in parking garages — corrosion-related flexural capacity loss and inadequate shear reinforcement for current loading requirements.

Slab Strengthening

Parking garage slabs — both the driving surface and intermediate floor slabs — frequently require strengthening due to corrosion damage, increased vehicle weights, or code compliance upgrades. CFRP strips applied to the underside of slabs increase flexural capacity without reducing headroom. For post-tensioned slabs with tendon corrosion, CFRP can replace the lost prestressing force with external reinforcement.

Column Strengthening

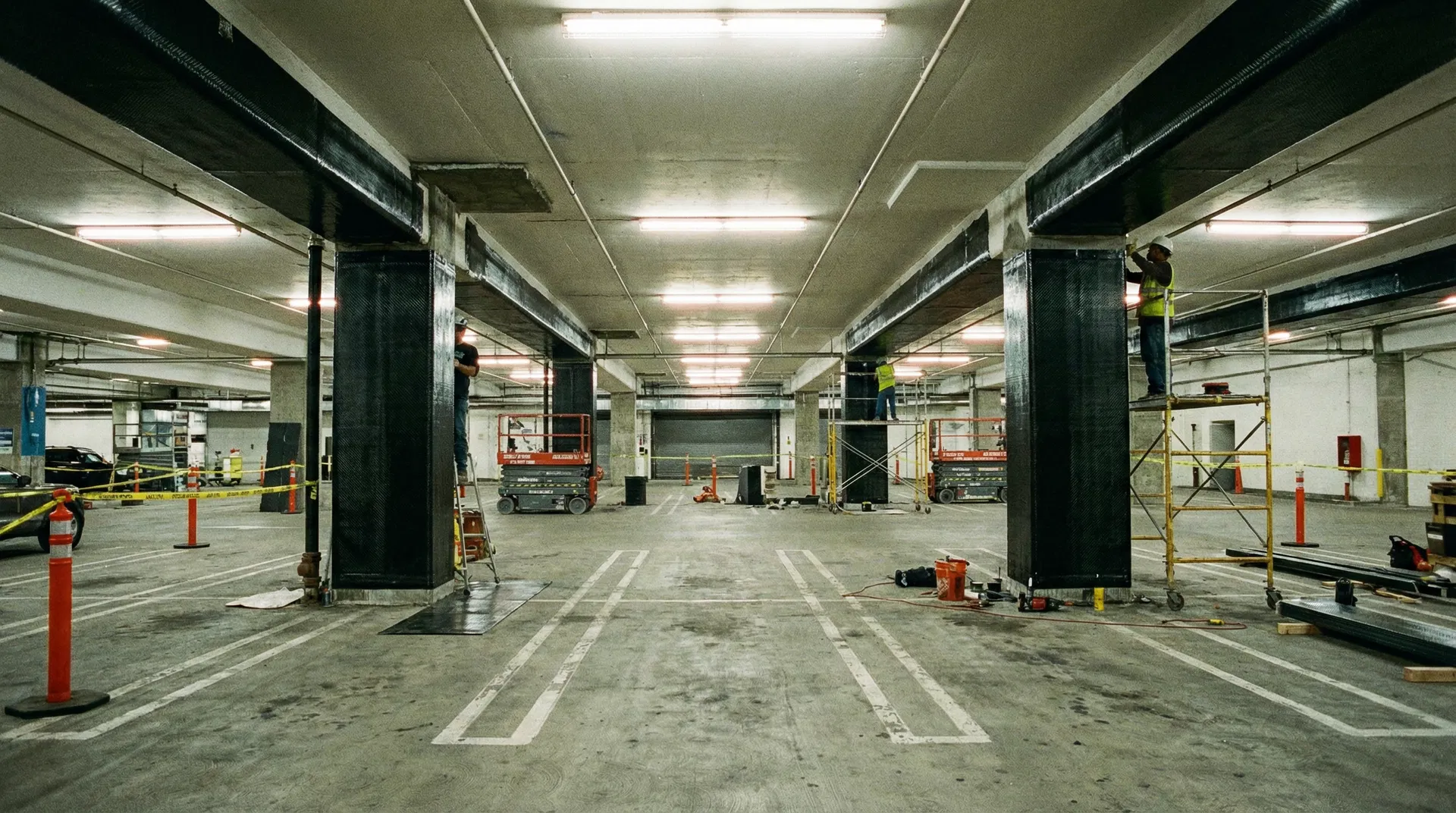

Parking garage columns are vulnerable to vehicle impact damage and corrosion at the base where water and de-icing chemicals accumulate. CFRP wrapping restores column capacity after impact damage and provides confinement that increases both axial capacity and ductility. For garages in seismic zones, column wrapping also improves seismic performance.

Real-World Application: Case Study of a Parking Garage Restoration

A 1,200-space, five-level parking garage at a major metropolitan hospital was showing advanced signs of deterioration. Chloride-induced corrosion had led to widespread spalling on the double-tee beams and cracking in the slabs. The hospital could not afford to shut down the garage for an extended period. The engineering team designed a CFRP-based solution.

• Beams: After repairing the spalled concrete, CFRP U-wraps were applied to the stems of the double-tee beams to increase their shear capacity, while CFRP laminates were bonded to the soffit to restore flexural strength.
• Slabs: Near-surface mounted (NSM) CFRP strips were installed in slots cut into the underside of the slab to provide additional flexural reinforcement.
• Outcome: The entire repair was completed in four months, with never more than 100 spaces out of service at any time. The CFRP solution added negligible weight to the structure, did not impact vehicle clearances, and provided a 50-year design life, all while saving the owner approximately 40% compared to the cost of a conventional repair that would have required extensive shoring and closures.

Getting Started with a Professional Assessment

If your parking garage shows signs of structural deterioration — spalling, cracking, exposed reinforcement, or water infiltration — a professional structural assessment is the essential first step. CFRP Repair provides free structural assessments for parking garages across all 50 states. Our engineers specialize in parking garage evaluation and CFRP strengthening design, providing you with a comprehensive repair plan and accurate cost estimate.
