Historic buildings represent irreplaceable cultural heritage, architectural artistry, and community identity. When these structures require structural strengthening — whether due to deterioration, changed use, seismic upgrade requirements, or code compliance — the challenge is to increase structural capacity without altering the building's historic character. Carbon Fiber Reinforced Polymer (CFRP) strengthening has become the preferred technology for historic preservation projects because it provides the structural performance needed while remaining virtually invisible and fully reversible.
The Historic Preservation Challenge
Historic buildings face a fundamental tension between preservation and safety. The Secretary of the Interior's Standards for the Treatment of Historic Properties — the governing framework for historic preservation in the United States — require that rehabilitation work preserve the historic character of the building while making possible an efficient contemporary use. Traditional structural strengthening methods often conflict with these standards:
- Steel beam additions alter the visual character of historic spaces and may require cutting into historic masonry or concrete.
- Concrete jacketing increases member sizes, changing the proportions and appearance of historic structural elements.
- External bracing alters the building's exterior appearance and may be incompatible with the historic facade.
- Full replacement destroys the original historic fabric — the exact opposite of preservation.
These conflicts have historically forced building owners and preservation architects into difficult compromises between structural adequacy and historic integrity. CFRP technology resolves this conflict by providing structural strengthening that is thin enough to be concealed, lightweight enough to avoid overloading historic foundations, and reversible enough to satisfy preservation review boards.
Why CFRP Is Ideal for Historic Structures
Minimal Visual Impact
CFRP laminates are typically 1-3mm thick — thinner than a coat of paint. When applied to structural members and covered with a compatible finish, CFRP strengthening is virtually undetectable. This is critical for historic buildings where the structural members (beams, columns, arches) are often exposed and contribute to the building's architectural character. Unlike steel plates or concrete jackets, CFRP does not change the proportions, profiles, or visual character of the strengthened elements.
Lightweight
Historic buildings often have foundations and structural systems that are already at or near their capacity limits. Adding heavy steel or concrete strengthening elements can overload these systems, requiring additional foundation work that further disturbs the historic fabric. CFRP adds negligible weight — typically less than 1% of the strengthened member's weight — eliminating the need for foundation upgrades in most cases.
Reversibility
The Secretary of the Interior's Standards emphasize reversibility — the ability to remove modifications without damaging the historic fabric. CFRP systems can be removed using controlled heating or mechanical methods without damaging the underlying substrate. This reversibility satisfies preservation review requirements and provides flexibility for future modifications if preservation standards or building use change.
Minimal Disruption During Installation
CFRP installation requires no heavy equipment, no welding, no concrete formwork, and no demolition. The installation process is quiet, clean, and fast — typically completing in days rather than weeks. For historic buildings that are occupied or open to the public, this minimal disruption is a significant advantage over traditional strengthening methods.
Adherence to Preservation Standards: ACI 440.2R-17
The American Concrete Institute's (ACI) "Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures" (ACI 440.2R-17) is the industry's cornerstone document. While its title specifies concrete, its principles are the foundation for strengthening masonry and timber as well. For historic preservation, this guide is critical because it establishes a rigorous, engineering-based framework that preservation boards trust.
Key aspects of the guide relevant to historic structures include:
- Substrate Evaluation: The guide mandates thorough assessment of the existing material (the substrate). For historic buildings, this means careful analysis of century-old concrete, brick, or stone. The substrate must be sound enough to transfer loads to the FRP system. This often involves non-destructive testing to determine its tensile strength.
- Environmental Durability: ACI 440.2R-17 provides environmental reduction factors to account for long-term exposure to moisture, UV light, and temperature cycles. This ensures the strengthening system is designed to last for decades, a primary concern for preserving a building for future generations.
- Fire Protection: The guide requires that the fire rating of the existing structure be maintained. Since the epoxy resins used in CFRP systems can soften at high temperatures, appropriate fire-resistant coatings must be applied over the CFRP to meet building codes and ensure life safety, a non-negotiable aspect of any rehabilitation project.
By following this established guide, engineers can provide preservation officials with the confidence that the intervention is not just a temporary patch, but a durable, code-compliant, and scientifically validated solution.
Cost-Benefit Analysis: CFRP vs. Traditional Methods in Historic Contexts
While the upfront material cost of CFRP can be higher than steel, a holistic cost-benefit analysis for historic projects often reveals a different story. The true cost of a project extends beyond materials to include labor, equipment, disruption, and long-term performance.
| Factor | CFRP Strengthening | Traditional Methods (Steel Plates / Concrete Jacketing) |
|---|---|---|
| Installed Cost | Often 10-30% lower due to reduced labor, no heavy equipment, and faster installation. | Higher labor costs, requires cranes/welders, longer project duration. |
| Disruption to Occupants | Minimal. Low noise, no fumes, small work crews. Building can often remain occupied. | Significant. High noise, demolition, large crews. Often requires building closure. |
| Impact on Historic Fabric | Negligible. Surface-applied and reversible. Preserves original materials and aesthetics. | High. Requires drilling, cutting, and removal of historic material. Irreversible. |
| Long-Term Maintenance | Virtually none. CFRP is corrosion-proof. | Requires ongoing painting and inspection for steel corrosion. Concrete is prone to cracking. |
For a historic theater requiring a floor load capacity increase from 40 psf to 100 psf for modern assembly use, a traditional approach might involve sistering new steel beams to the original timber joists, a process that could take 4-6 weeks and require closing the venue. The CFRP solution could involve applying laminates to the underside of the joists, be completed in 1-2 weeks, and potentially allow the theater to remain open for tours, dramatically reducing the owner's revenue loss.
Common Historic Building Applications

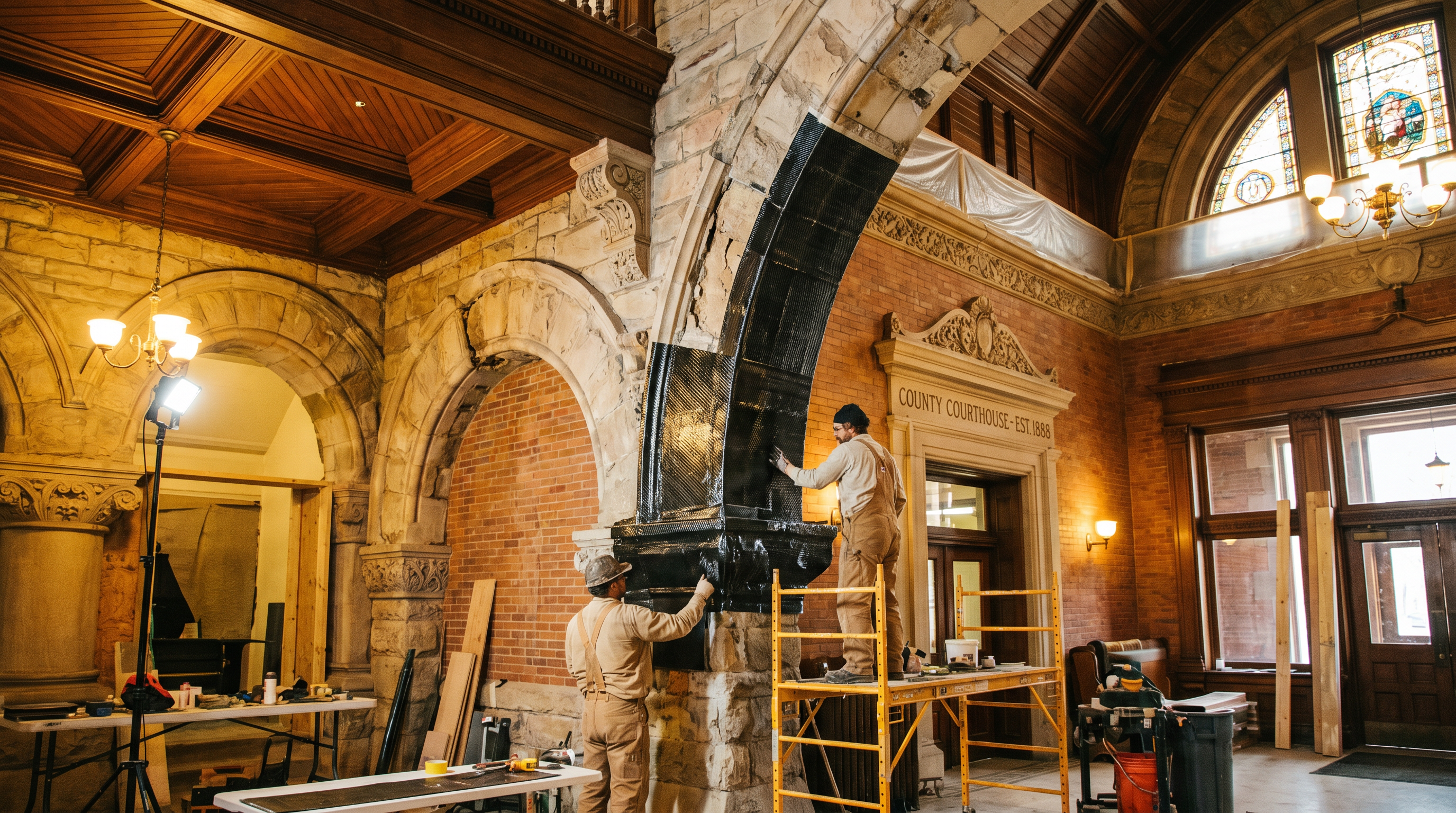

Masonry Arch and Vault Strengthening
Many historic buildings feature unreinforced masonry (URM) arches and vaults that have deteriorated or need additional capacity. CFRP strips or fabric applied to the intrados (underside) provide the tensile strength that unreinforced masonry lacks, preventing hinge formation and collapse. The thin, flexible material can conform to any arch geometry and can be concealed with a traditional lime mortar or plaster finish that matches the historic surface.
Floor and Roof Beam Strengthening
Historic buildings frequently require floor load upgrades when converted from their original use (e.g., warehouse to residential, office to data center). CFRP laminates applied to the tension face of concrete, steel, or timber beams can increase flexural capacity by 30-60%. This often provides enough additional capacity to accommodate the new use without replacing the historic structural system, preserving the original ceiling heights and exposed beam aesthetics.
Column Strengthening and Confinement
Historic concrete and masonry columns may need strengthening for seismic upgrades or increased load requirements. A full CFRP wrap provides "confinement," which dramatically increases both the compressive strength and ductility of the column. This is a life-saving intervention in earthquake-prone regions. The wrap adds only millimeters to the column diameter, preserving the column's historic proportions and appearance, a stark contrast to a bulky concrete jacket.
Seismic Upgrade of URM Walls
Many historic buildings in seismic zones are constructed from unreinforced masonry, which is notoriously brittle and prone to catastrophic failure during an earthquake. CFRP fabric can be applied to the interior face of URM walls to create a continuous, high-strength "skin." This skin prevents out-of-plane failure (walls collapsing outwards) and improves in-plane shear capacity, holding the wall together and allowing it to flex rather than fracture. This is a core component of any modern seismic retrofit strategy for historic structures.
Case Study Spotlight: Revitalizing a 19th-Century Textile Mill
A developer purchased a five-story, 150,000 sq. ft. textile mill built in the 1880s for conversion into luxury apartments. The building featured heavy timber beams and cast-iron columns. The challenge: the original floors were designed for a live load of 50 psf, but modern residential codes required 40 psf plus new mechanical systems, partitions, and finishes, pushing the required capacity closer to 75 psf.
The preservation architect insisted on keeping the original exposed timber ceilings. The traditional solution—adding steel beams below the timber—was rejected as visually unacceptable. The solution was a CFRP design. Carbon fiber laminates were epoxied into grooves routed into the tension face of the 14-inch timber beams. The grooves were then filled with a color-matched epoxy, making the repair nearly invisible. The project was completed 40% faster than the estimated timeline for a steel-based solution, allowing the developer to begin leasing units sooner. The project successfully secured historic tax credits, with the SHPO citing the minimally invasive CFRP solution as a key factor in their approval.
Working with Preservation Review Boards
Projects involving historic buildings listed on the National Register of Historic Places, located in historic districts, or receiving federal tax credits must comply with the Secretary of the Interior's Standards and typically require review by a State Historic Preservation Office (SHPO) or local preservation commission. CFRP strengthening has an excellent track record with preservation review boards because:
- It preserves the original historic fabric rather than replacing it.
- It is reversible — it can be removed without damaging the historic substrate.
- It is concealable — it does not alter the visual character of the building.
- It is minimally invasive — installation does not require cutting, drilling, or demolishing historic elements.
- It is a well-documented, engineered solution with a proven track record on nationally significant historic structures.
Planning a Historic Building CFRP Project
If you are considering structural strengthening for a historic building, the process must be meticulous and collaborative. It typically begins with a structural assessment that evaluates the existing structure's condition and capacity, identifies the strengthening requirements, and develops a CFRP design that meets both structural and preservation objectives. CFRP Repair's engineering team has extensive experience working within preservation frameworks and can coordinate with your preservation architect and SHPO reviewer to develop solutions that satisfy all stakeholders.
